Visualize your GitHub repository and developer activity

This guide demonstrates how to set up a monitoring solution to get insights into your GitHub workspace using Port's GitHub integration. You'll learn how to visualize repository visibility, monitor pull requests and issues, and track developer activity over time.

Common use cases

Visualize and monitor repository visibility (e.g., public vs. private).
Track developer engagement through pull requests and issues.

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
GitHub app installed in your Port account.

Set up data model

When installing the GitHub app in Port, the Repository and Pull Request blueprints are created by default.
However, the Issue blueprint is not created automatically, so we will need to create it manually.

Additionally, we will update the Repository blueprint to include a visibility property, which is not part of the default schema.

Update the repository blueprint

Follow the steps below to update the Repository blueprint:

Navigate to the Repository blueprint in your Port Builder.
Hover over it, click on the ... button on the right, and select Edit JSON.

Add the visibility property:

Visibility property (Click to expand)

 "visibility": {
     "type": "string",
     "title": "Visibility"
 }

Click Save.

Create the Github issue blueprint

We will then create the Issue blueprint.
Skip to the set up data source mapping section if you already have the blueprint.

Go to your Builder page.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add this JSON schema:

GitHub issue blueprint (Click to expand)

{
    "identifier": "githubIssue",
    "title": "Issue",
    "icon": "Github",
    "schema": {
        "properties": {
        "creator": {
            "title": "Creator",
            "type": "string"
        },
        "assignees": {
            "title": "Assignees",
            "type": "array"
        },
        "labels": {
            "title": "Labels",
            "type": "array"
        },
        "status": {
            "title": "Status",
            "type": "string",
            "enum": ["open", "closed"],
            "enumColors": {
            "open": "green",
            "closed": "purple"
            }
        },
        "createdAt": {
            "title": "Created At",
            "type": "string",
            "format": "date-time"
        },
        "closedAt": {
            "title": "Closed At",
            "type": "string",
            "format": "date-time"
        },
        "updatedAt": {
            "title": "Updated At",
            "type": "string",
            "format": "date-time"
        },
        "description": {
            "title": "Description",
            "type": "string",
            "format": "markdown"
        },
        "issueNumber": {
            "title": "Issue Number",
            "type": "number"
        },
        "link": {
            "title": "Link",
            "type": "string",
            "format": "url"
        }
        },
        "required": []
    },
    "mirrorProperties": {},
    "calculationProperties": {},
    "relations": {
        "repository": {
        "target": "githubRepository",
        "required": true,
        "many": false
        }
    }
}

Click Save to create the blueprint.

Set up data source mapping

Go to your Data Source page.
Select the GitHub integration.

Add the following YAML block into the editor to ingest data from GitHub:

GitHub integration configuration (Click to expand)

resources:
- kind: repository
    selector:
    query: 'true'
    port:
    entity:
        mappings:
        identifier: .name
        title: .name
        blueprint: '"githubRepository"'
        properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
            visibility: .visibility

- kind: pull-request
    selector:
    query: 'true'
    closedPullRequests: true
    port:
    entity:
        mappings:
        identifier: .head.repo.name + (.id|tostring)
        title: .title
        blueprint: '"githubPullRequest"'
        properties:
            creator: .user.login
            assignees: '[.assignees[].login]'
            reviewers: '[.requested_reviewers[].login]'
            status: .status
            closedAt: .closed_at
            updatedAt: .updated_at
            mergedAt: .merged_at
            createdAt: .created_at
            prNumber: .id
            link: .html_url
            leadTimeHours: >-
            (.created_at as $createdAt | .merged_at as $mergedAt | ($createdAt
            | sub("\\..*Z$"; "Z") | strptime("%Y-%m-%dT%H:%M:%SZ") | mktime)
            as $createdTimestamp | ($mergedAt | if . == null then null else
            sub("\\..*Z$"; "Z") | strptime("%Y-%m-%dT%H:%M:%SZ") | mktime end)
            as $mergedTimestamp | if $mergedTimestamp == null then null else
            (((($mergedTimestamp - $createdTimestamp) / 3600) * 100 | floor) /
            100) end)
        relations:
            repository: .head.repo.name

- kind: issue
    selector:
    query: .pull_request == null
    port:
    entity:
        mappings:
        identifier: .repo + (.id|tostring)
        title: .title
        blueprint: '"githubIssue"'
        properties:
            creator: .user.login
            assignees: '[.assignees[].login]'
            labels: '[.labels[].name]'
            status: .state
            createdAt: .created_at
            closedAt: .closed_at
            updatedAt: .updated_at
            description: .body
            issueNumber: .number
            link: .html_url
        relations:
            repository: .repo

Click Save & Resync to apply the mapping.

Visualize metrics

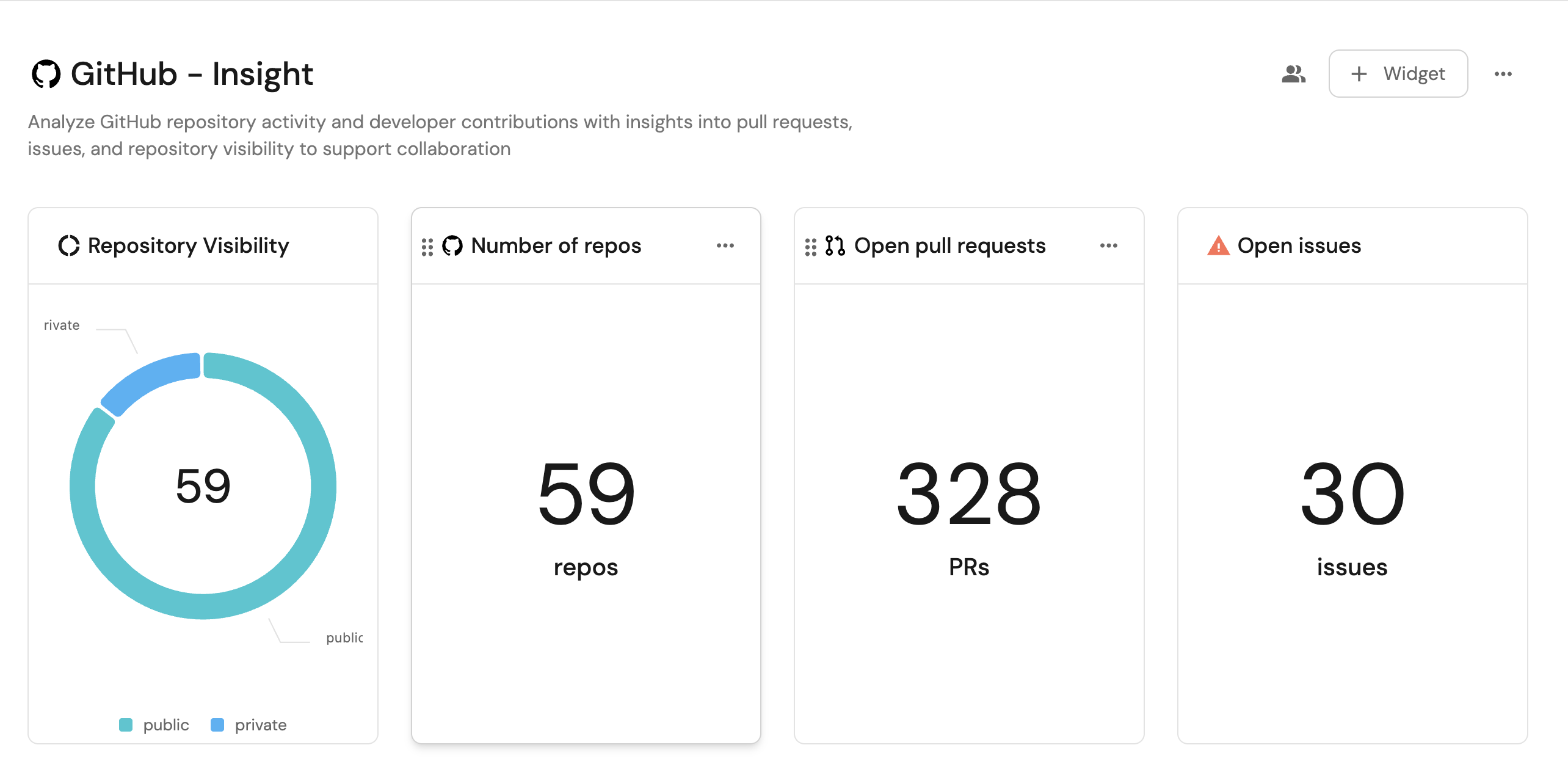

Once the GitHub data is synced, we can create a dashboard and add widgets to monitor repository visibility and developer activity.

Create a dashboard

Navigate to your software catalog.
Click on the + New button in the left sidebar.
Select New dashboard.
Name the dashboard GitHub - Insight.
Click Create.

We now have a blank dashboard where we can start adding widgets to visualize our developer activities.

Add widgets

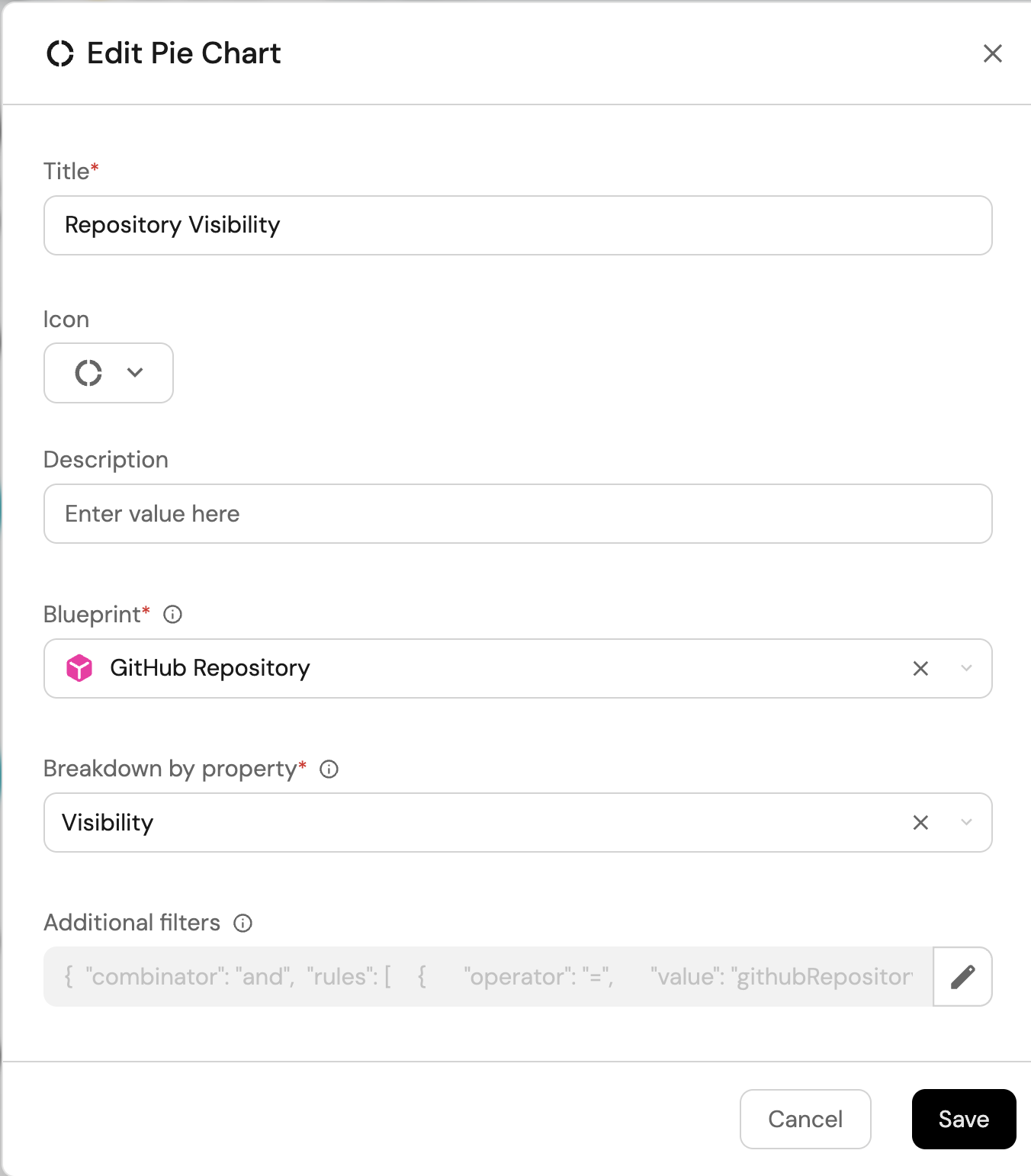

Repository visibility (click to expand)

Click + Widget and select Pie chart.
Title: Repository Visibility.
Choose the Repository blueprint.
Under Breakdown by property, select the Visibility property
Click Save.

Total number of repositories (click to expand)

Click + Widget and select Number Chart.
Title: Number of repos.
Select Count entities Chart type and choose Repository as the Blueprint.
Select count for the Function.
Select custom as the Unit and input repos as the Custom unit.
Click Save.

Total number of public repositories (click to expand)

Click + Widget and select Number Chart.
Title: Public repos (add the Url icon).
Select Count entities Chart type and choose Repository as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter public repositories:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"visibility",
                "operator":"=",
                "value":"public"
            }
        ]
    }
]

Select custom as the Unit and input repos as the Custom unit.
Click Save.

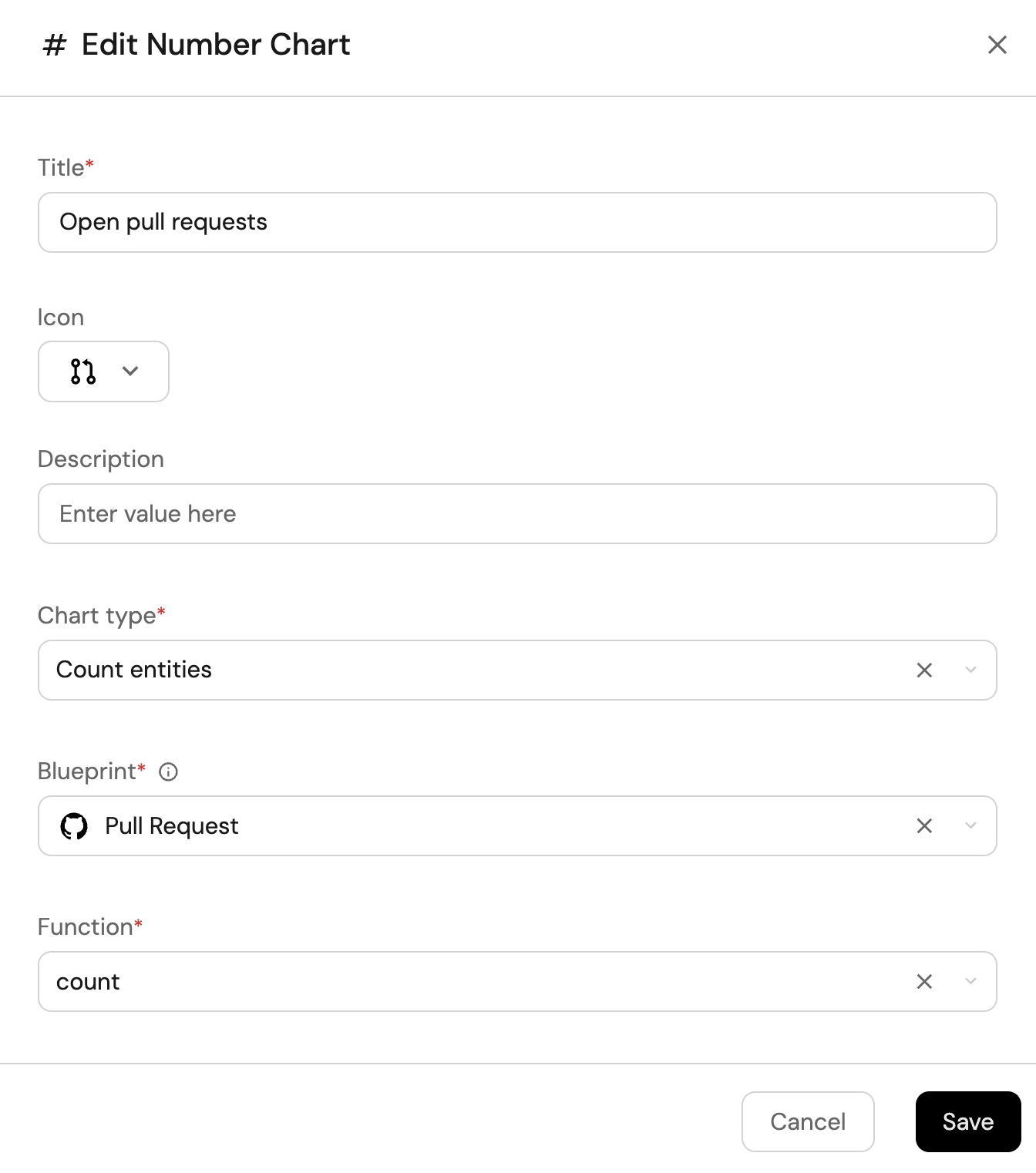

Total number of open pull requests (click to expand)

Click + Widget and select Number Chart.
Title: Open pull requests (add the GitPullRequest icon).
Select Count entities Chart type and choose Pull Request as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter open pull requests:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"=",
                "value":"open"
            }
        ]
    }
]

Select custom as the Unit and input PRs as the Custom unit.
Click Save.

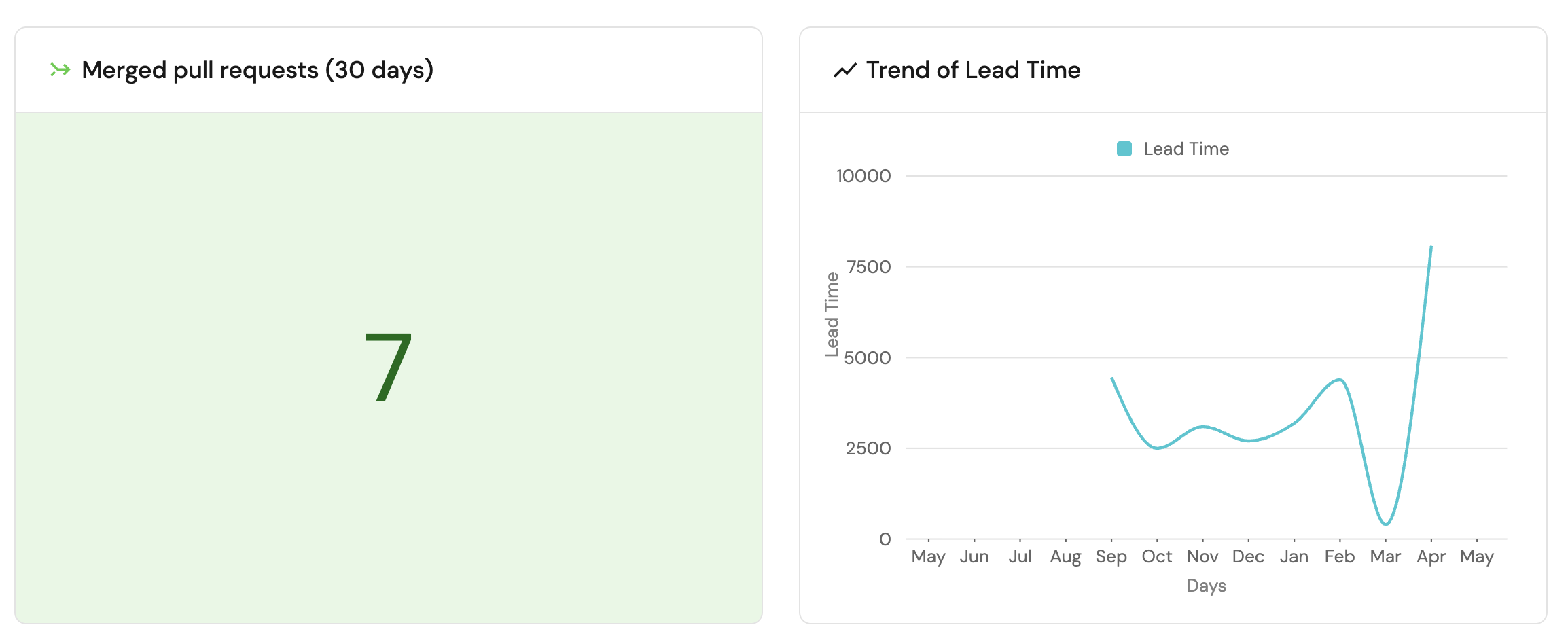

Total number of merged pull requests (click to expand)

Click + Widget and select Number Chart.
Title: Merged pull requests (30 days) (add the Merge icon).
Select Count entities Chart type and choose Pull Request as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter merged pull requests updated in the last month:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"=",
                "value":"merged"
            },
            {
                "property":"updatedAt",
                "operator":"between",
                "value":{
                "preset":"lastMonth"
                }
            }
        ]
    }
]

Select custom as the Unit and input PRs as the Custom unit.
Click Save.

Total number of open GitHub issues (click to expand)

Click + Widget and select Number Chart.
Title: Open issues (add the Alert icon).
Select Count entities Chart type and choose Issue as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter open issues:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"status",
                "operator":"=",
                "value":"open"
            }
        ]
    }
]

Select custom as the Unit and input issues as the Custom unit.
Click Save.
