Visualize and manage your GitLab deployments

This guide demonstrates how to bring your GitLab deployment experience into Port. You will learn how to:

Ingest GitLab pipeline data into Port's software catalog using Port's GitLab integration.
Set up self-service actions to manage deployments (trigger, retry, and cancel).
Build dashboards in Port to monitor and take action on your GitLab deployments.

Common use cases

Monitor the status and health of all GitLab deployments across accounts from a single dashboard.
Empower platform teams to automate day-2 operations via webhooks.

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
Port's GitLab integration is installed in your account.

Set up data model

The GitLab Pipeline blueprint is not created automatically when installing the GitLab integration, so we will need to create it manually.

Create the GitLab pipeline blueprint

Go to the Builder page of your portal.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add this JSON schema:

GitLab Pipeline blueprint (Click to expand)

{
  "identifier": "gitlabPipeline",
  "title": "GitLab Pipeline",
  "icon": "GitLab",
  "schema": {
    "properties": {
      "createdAt": {
        "type": "string",
        "title": "Created At",
        "format": "date-time",
        "description": "When the pipeline was created"
      },
      "updatedAt": {
        "type": "string",
        "title": "Updated At",
        "format": "date-time",
        "description": "When the pipeline was last updated"
      },
      "link": {
        "type": "string",
        "title": "Link",
        "format": "url",
        "description": "URL to the pipeline in GitLab"
      },
      "status": {
        "type": "string",
        "title": "Status",
        "enum": [
          "failed",
          "success",
          "canceled"
        ],
        "enumColors": {
          "failed": "red",
          "success": "green",
          "canceled": "darkGray"
        }
      },
      "targetBranch": {
        "type": "string",
        "title": "Branch"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {
    "project": {
      "title": "Project",
      "target": "service",
      "required": false,
      "many": false
    }
  }
}

Click Save to create the blueprint.

Update the integration mapping

Go to the Data Sources page of your portal.
Select the integration.

Add the following YAML block into the editor to ingest pipelines from your GitLab account:

GitLab integration configuration (Click to expand)

deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
resources:
  - kind: project
    selector:
      query: 'true'
      includeLanguages: true
    port:
      entity:
        mappings:
          identifier: .id | tostring
          title: .name
          blueprint: '"service"'
          properties:
            url: .web_url
            readme: file://README.md
            language: .__languages | to_entries | max_by(.value) | .key
  - kind: pipeline
    selector:
      query: 'true'
    port:
      entity:
        mappings:
          identifier: .id | tostring
          title: (.project_id | tostring) + "-" + (.id | tostring)
          blueprint: '"gitlabPipeline"'
          properties:
            status: .status
            createdAt: .created_at
            updatedAt: .updated_at
            targetBranch: .ref
            link: .web_url
          relations:
            project: .project_id | tostring

Click Save & Resync to apply the mapping.

Set up self-service actions

We will create self-service actions in Port to directly interact with the GitLab API. These actions let users:

Trigger a new pipeline.
Retry failed or canceled jobs in a pipeline.
Cancel a running pipeline.

Each action will be configured via JSON and triggered using synced webhooks secured with secrets. To implement these use-cases, follow the steps below:

Add Port secrets

To add a secret to your portal:

Click on the ... button in the top right corner of your Port application.
Click on Credentials.
Click on the Secrets tab.
Click on + Secret and add the following secret:
- GITLAB_TRIGGER_TOKEN: The token used to authenticate the request. To obtain this token, see the documentation.

Trigger a new pipeline

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Trigger a new pipeline action (Click to expand)

{
  "identifier": "trigger_pipeline",
  "title": "Trigger Pipeline",
  "icon": "GitLab",
  "description": "Triggers a Gitlab pipeline in the specified repository",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {
        "environment": {
          "icon": "DefaultProperty",
          "title": "Environment",
          "type": "string",
          "default": "test",
          "enum": [
            "test",
            "staging",
            "production"
          ],
          "enumColors": {
            "test": "lightGray",
            "staging": "lightGray",
            "production": "lightGray"
          }
        }
      },
      "required": [],
      "order": [
        "environment"
      ]
    },
    "blueprintIdentifier": "service"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://gitlab.com/api/v4/projects/{{.entity.identifier}}/ref/main/trigger/pipeline?token={{.secrets.GITLAB_TRIGGER_TOKEN}}",
    "agent": false,
    "synchronized": true,
    "method": "POST",
    "headers": {
      "RUN_ID": "{{ .run.id }}",
      "Content-Type": "application/json"
    },
    "body": {
      "{{ spreadValue() }}": "{{ .inputs }}",
      "port_context": {
        "runId": "{{ .run.id }}",
        "blueprint": "{{ .action.blueprint }}",
        "entity": "{{ .entity }}"
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Now you should see the Trigger Pipeline action in the self-service page. 🎉

Retry jobs in a pipeline

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Retry jobs in a pipeline action (Click to expand)

{
  "identifier": "retry_pipeline",
  "title": "Retry Pipeline",
  "icon": "Pipeline",
  "description": "Retry failed or canceled jobs in a pipeline",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": [],
      "order": []
    },
    "condition": {
      "type": "SEARCH",
      "rules": [
        {
          "property": "status",
          "operator": "in",
          "value": [
            "failed",
            "cancelled"
          ]
        }
      ],
      "combinator": "and"
    },
    "blueprintIdentifier": "gitlabPipeline"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://gitlab.com/api/v4/projects/{{.entity.relations.project}}/pipelines/{{.entity.identifier}}/retry",
    "agent": false,
    "synchronized": true,
    "method": "POST",
    "headers": {
      "RUN_ID": "{{ .run.id }}",
      "Content-Type": "application/json",
      "PRIVATE-TOKEN": "{{.secrets.GITLAB_TRIGGER_TOKEN}}"
    },
    "body": {
      "{{ spreadValue() }}": "{{ .inputs }}",
      "port_context": {
        "runId": "{{ .run.id }}",
        "blueprint": "{{ .action.blueprint }}",
        "entity": "{{ .entity }}"
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Now you should see the Retry Pipeline action in the self-service page. 🎉

Cancel a running pipeline

Go to the Self-service page of your portal.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Cancel a running action (Click to expand)

{
  "identifier": "cancel_pipeline",
  "title": "Cancel Pipeline",
  "icon": "Unavailable",
  "description": "Cancel all jobs for a pipeline",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": [],
      "order": []
    },
    "blueprintIdentifier": "gitlabPipeline"
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://gitlab.com/api/v4/projects/{{.entity.relations.project}}/pipelines/{{.entity.identifier}}/cancel",
    "agent": false,
    "synchronized": true,
    "method": "POST",
    "headers": {
      "RUN_ID": "{{ .run.id }}",
      "Content-Type": "application/json",
      "PRIVATE-TOKEN": "{{.secrets.GITLAB_TRIGGER_TOKEN}}"
    },
    "body": {
      "{{ spreadValue() }}": "{{ .inputs }}",
      "port_context": {
        "runId": "{{ .run.id }}",
        "blueprint": "{{ .action.blueprint }}",
        "entity": "{{ .entity }}"
      }
    }
  },
  "requiredApproval": false
}

Click Save.

Now you should see the Cancel Pipeline action in the self-service page. 🎉

Visualize metrics

With pipelines ingested and actions configured, the next step is building a dashboard to monitor GitLab data directly in Port. We can visualize all pipeline details using customizable widgets. In addition, we can trigger remediation workflows right from your dashboard.

Create a dashboard

Navigate to the Catalog page of your portal.
Click on the + New button in the left sidebar.
Select New dashboard.
Name the dashboard Gitlab Deployment Manager.
Input A dashboard to view, retry, and cancel deployments in Gitlab under Description.
Select the GitLab icon.
Click Create.

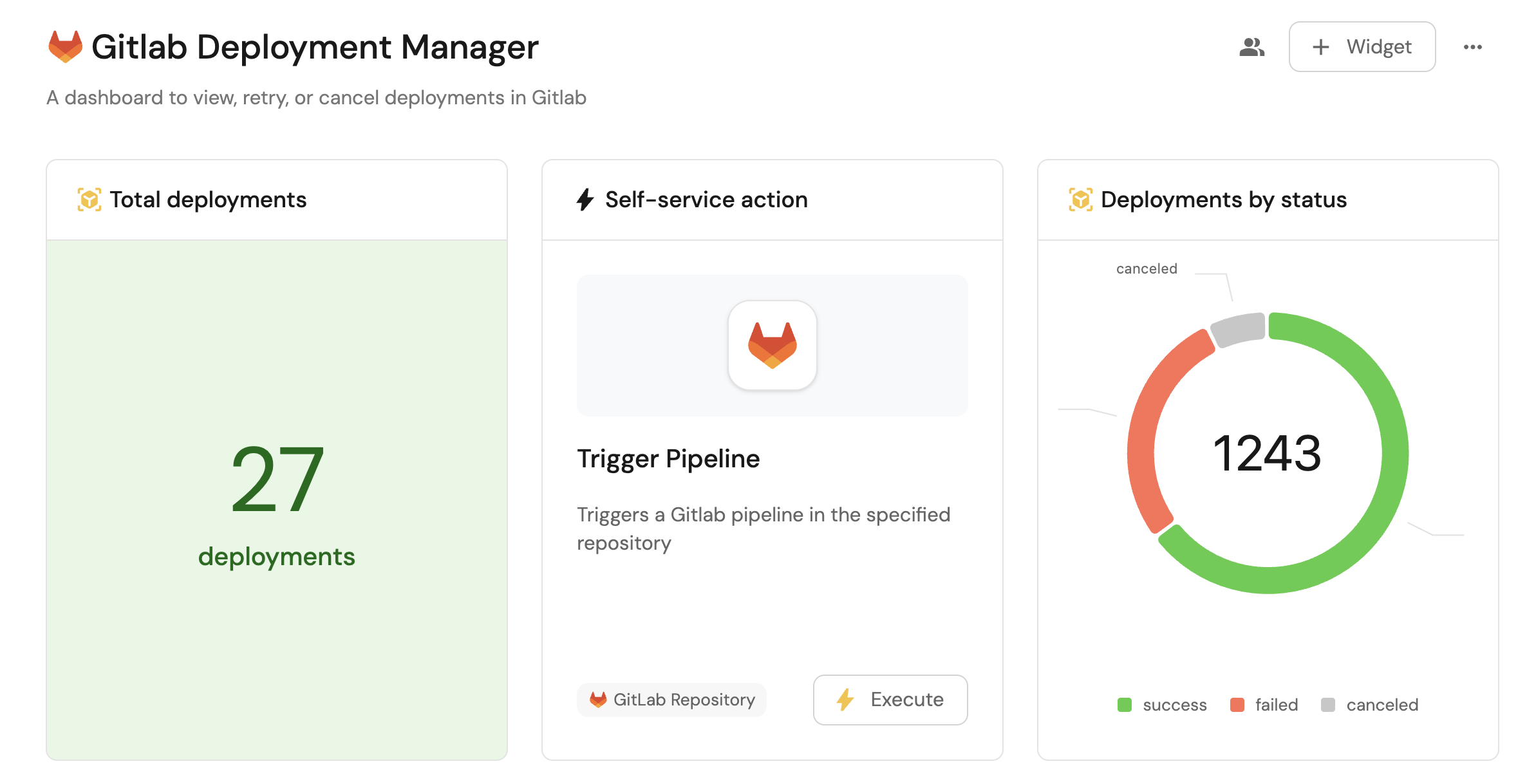

We now have a blank dashboard where we can start adding widgets to visualize insights from our GitLab deployments. In this guide, we define deployments as pipelines created against the main branch of the repository.

Add widgets

In the new dashboard, create the following widgets:

Total deployments created in the last 3 months (click to expand)

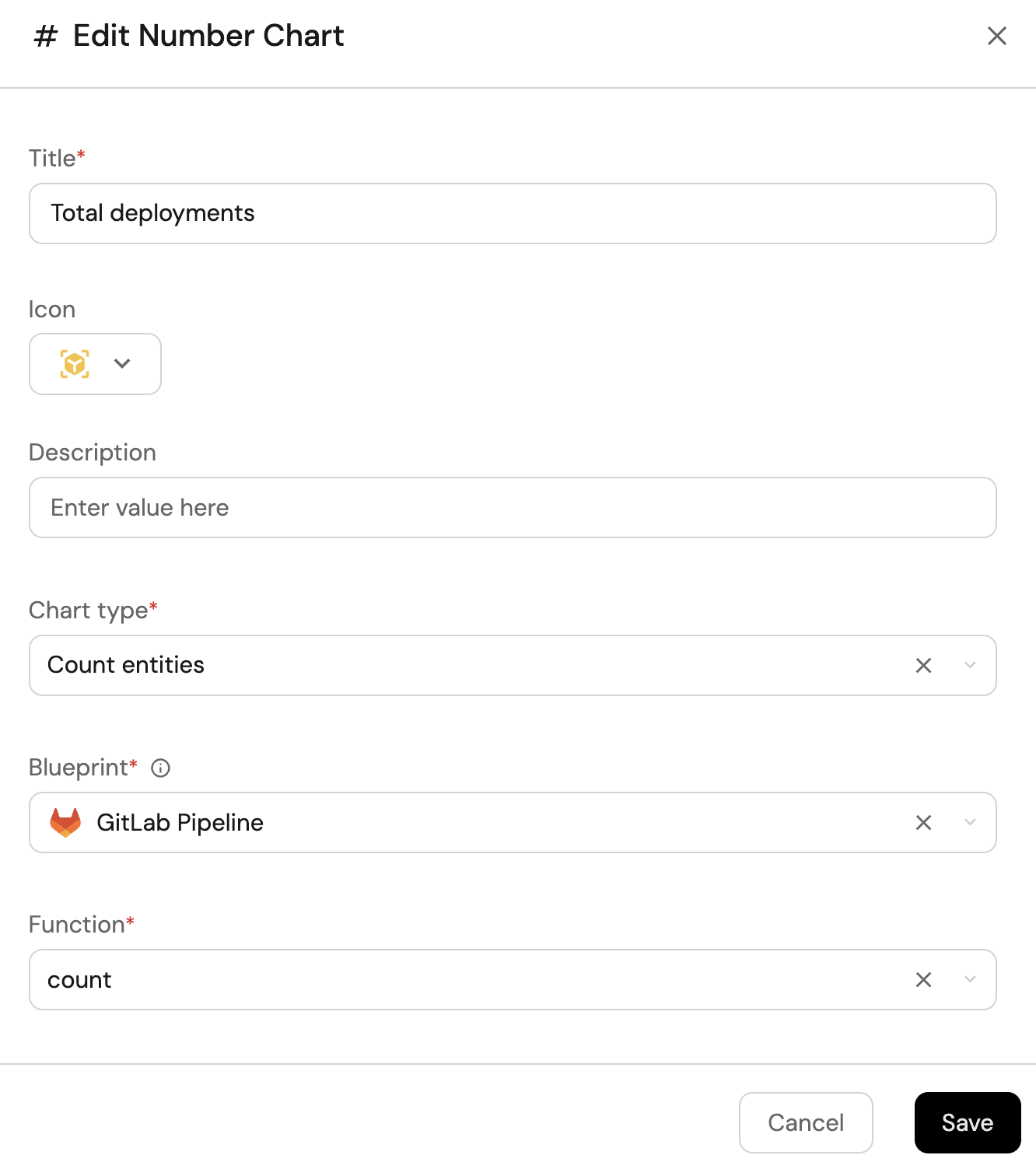

Click + Widget and select Number Chart.
Title: Total deployments (add the Deployment icon).
Select Count entities Chart type and choose GitLab Pipeline as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter deployments created in the last 3 months:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"targetBranch",
                "operator":"=",
                "value":"main"
            },
            {
                "property":"createdOn",
                "operator":"between",
                "value":{
                "preset":"last3Months"
                }
            }
        ]
    }
]

Select custom as the Unit and input deployments as the Custom unit
Click Save.

Deployment by status (click to expand)

Click + Widget and select Pie chart.
Title: Deployments by state (add the Deployment icon).
Choose the GitLab Pipeline blueprint.
Under Breakdown by property, select the Status property

Add this JSON to the Additional filters editor to filter deployments:

{
  "combinator": "and",
  "rules": [
    {
      "property": "targetBranch",
      "operator": "=",
      "value": "main"
    },
    {
      "operator": "=",
      "value": "gitlabPipeline",
      "property": "$blueprint"
    }
  ]
}

Click Save.

Trigger pipeline action (click to expand)

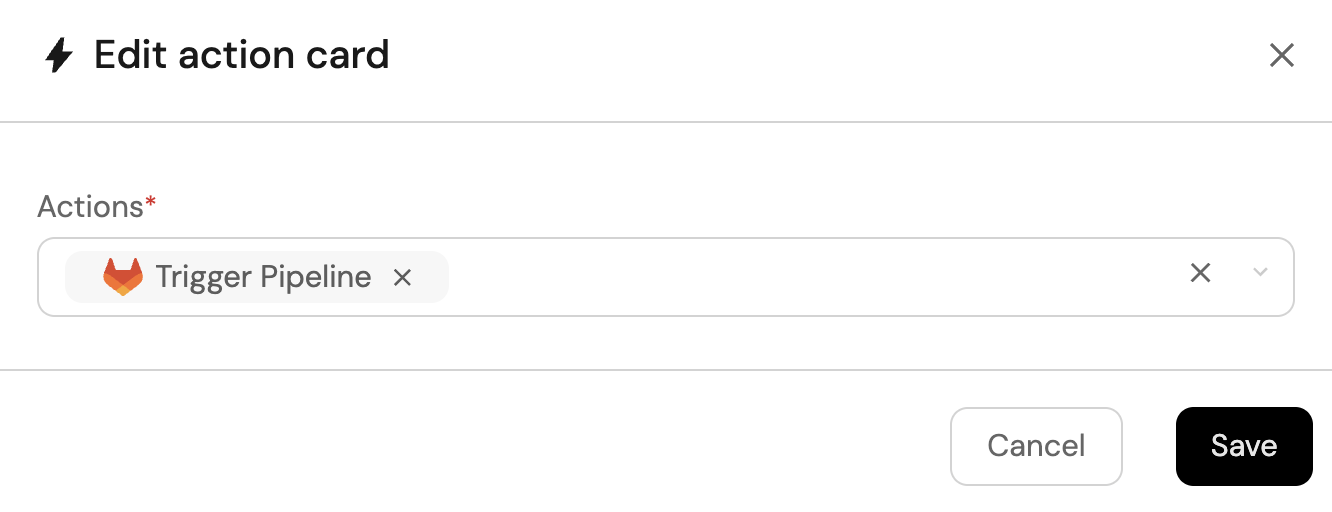

Click + Widget and select Action card.
Choose the Trigger Pipeline action we created in this guide
Click Save.

All GitLab deployments view (click to expand)

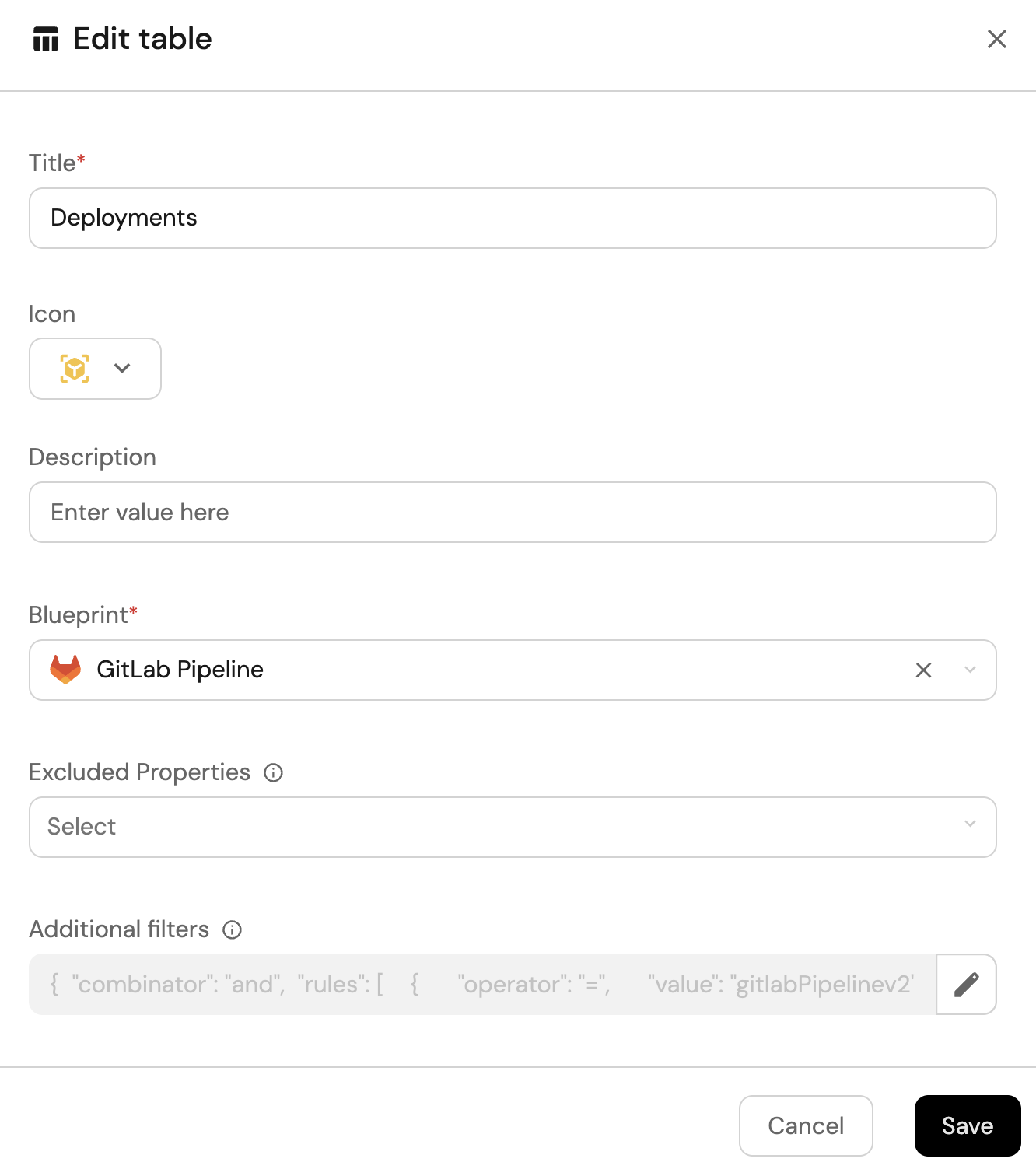

Click + Widget and select Table.
Title the widget All Deployments.
Choose the GitLab Pipeline blueprint.

Add this JSON to the Additional filters editor to filter deployments:

{
  "combinator": "and",
  "rules": [
    {
      "property": "targetBranch",
      "operator": "=",
      "value": "main"
    },
    {
      "operator": "=",
      "value": "gitlabPipeline",
      "property": "$blueprint"
    }
  ]
}

Click Save to add the widget to the dashboard.

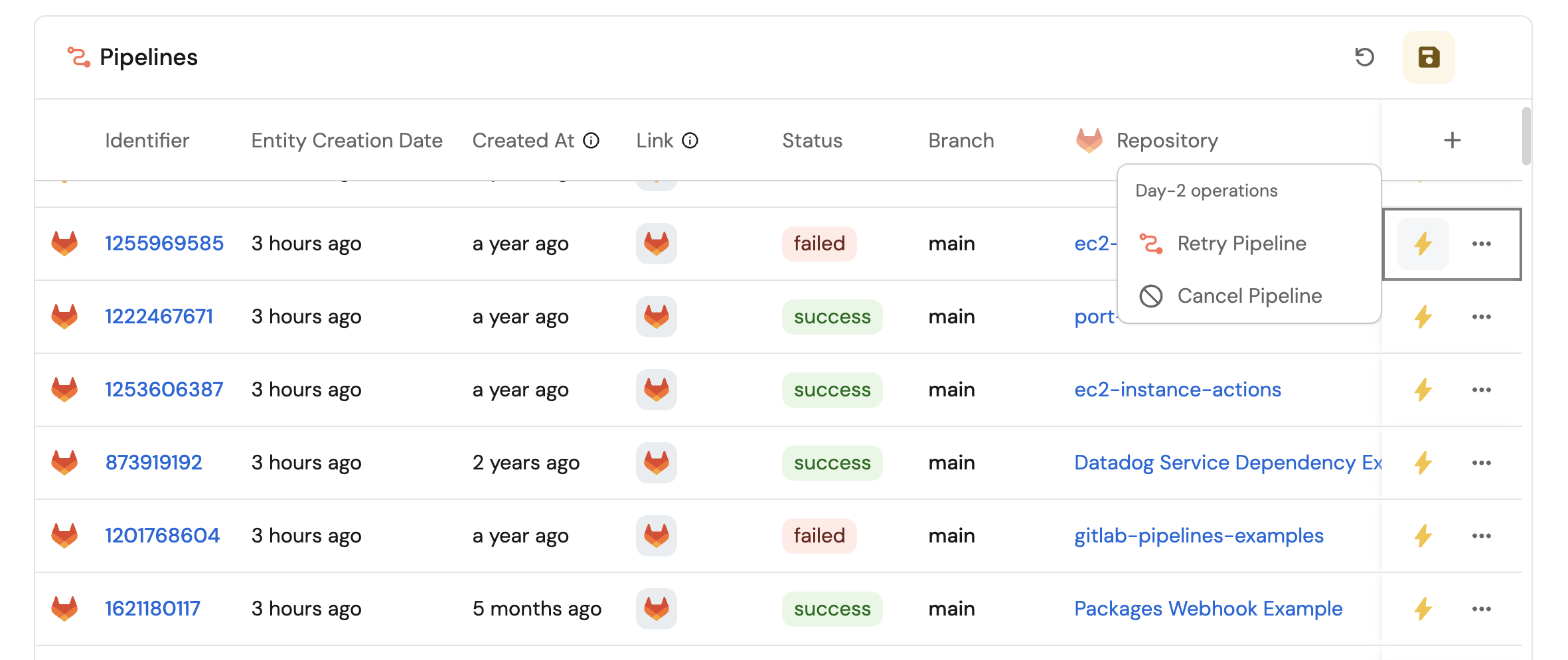

Click on the ... button in the top right corner of the table and select Customize table.
In the top right corner of the table, click on Manage Properties and add the following properties:
- Status: The status of the pipeline.
- Link: The URL to the pipeline.
- Branch: The target branch of the pipeline.
- Created At: The date the pipeline was created in GitLab.
- Repository: The related GitLab project.
Click on the save icon in the top right corner of the widget to save the customized table.
