CI/CD pipeline failures interrupt your development flow. Engineers often need to inspect logs manually, identify the root cause, and apply a fix, which adds toil and context switching.

This guide shows how to orchestrate automated CI failure remediation with Port workflows and Cursor. When a GitHub workflow run fails, a single event-triggered workflow enriches context from your catalog, launches a Cursor cloud agent to diagnose and fix the issue, and notifies the relevant team in Slack.

The workflow JSON below uses the legacy CURSOR_AGENT workflow node so you can run the Cursor cloud agent on Port's workflow infrastructure alongside AI enrichment and Slack notifications. For new workflows, use the Create Cursor Cloud Agent integration action with the Cursor Cloud Agents integration installed (for example apiVersion: v0 with reportCompletion: true to keep the Port run open until the agent finishes).

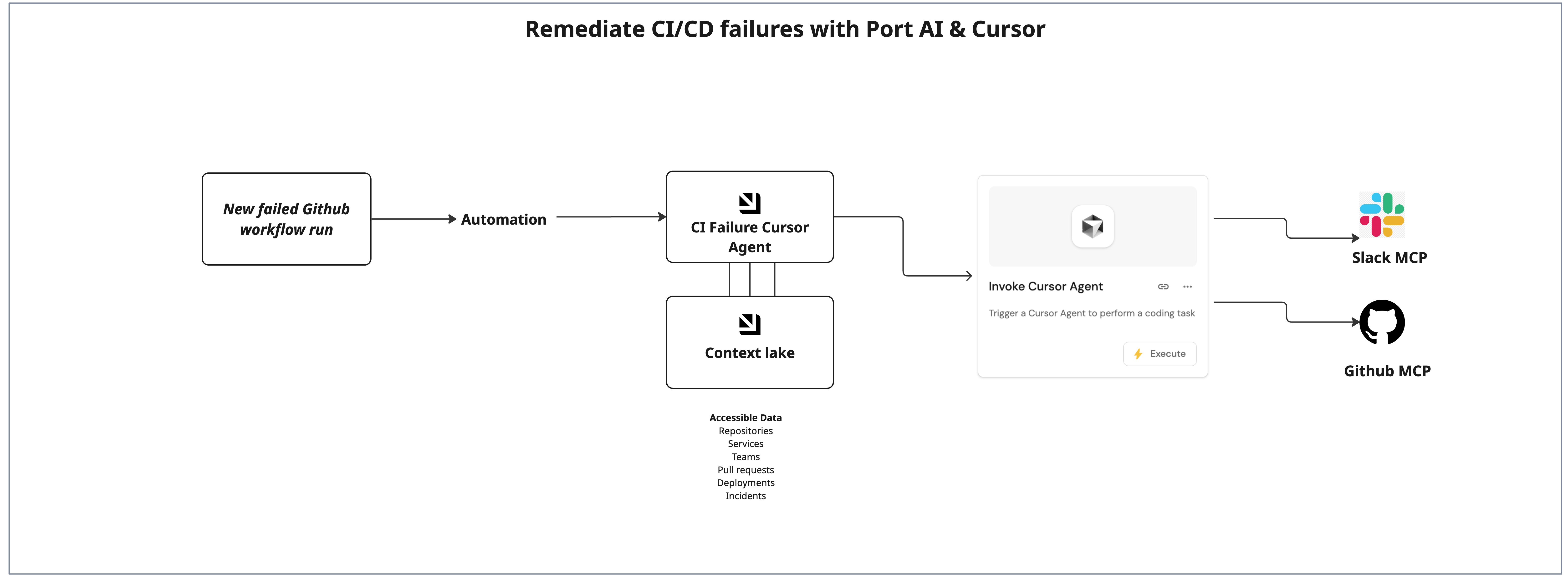

Failed GitHub workflow run triggers a Port automation and Cursor agent that use catalog context and GitHub and Slack MCP tools

Common use cases​

  • Auto-triggered remediation - Trigger a Port workflow on CI failure so Cursor investigates and creates a fix pull request.
  • Context enrichment before remediation - Pull repository, service, and team context from Port before launching the Cursor agent.
  • Team-aware notifications - Post the fix summary and pull request link to the relevant Slack channel automatically.
  • Cursor marketplace-aligned setup - Use Cursor's CI Autofix automation pattern and connect it to Port orchestration.
  • Flexible orchestration path - Use the Cursor Agent node in the sample workflow, or the Create Cursor Cloud Agent integration action when you need the Ocean integration path in the same flow.

Prerequisites​

This guide assumes the following:

Set up data model​

You will extend your GitHub Ocean data model with two blueprints: githubWorkflow and githubWorkflowRun.

Create the GitHub workflow blueprint​

  1. Go to the Builder page in Port.

  2. Click on + Blueprint.

  3. Click on {...} Edit JSON.

  4. Use the following configuration:

    GitHub workflow blueprint (click to expand)
    {
      "identifier": "githubWorkflow",
      "title": "GitHub Workflow",
      "icon": "Github",
      "schema": {
        "properties": {
          "createdAt": {
            "format": "date-time",
            "title": "Created At",
            "type": "string"
          },
          "last_triggered_at": {
            "format": "date-time",
            "title": "Last Triggered At",
            "type": "string"
          },
          "link": {
            "format": "url",
            "title": "Link",
            "type": "string"
          },
          "path": {
            "title": "Path",
            "type": "string"
          },
          "result": {
            "description": "Latest run conclusion (merged from workflow-run data)",
            "enum": [
              "success",
              "failure",
              "cancelled",
              "skipped",
              "timed_out",
              "action_required",
              "neutral",
              "stale",
              "startup_failure"
            ],
            "enumColors": {
              "action_required": "yellow",
              "cancelled": "lightGray",
              "failure": "red",
              "neutral": "lightGray",
              "skipped": "lightGray",
              "stale": "darkGray",
              "startup_failure": "red",
              "success": "green",
              "timed_out": "orange"
            },
            "title": "Result",
            "type": "string"
          },
          "status": {
            "enum": [
              "active",
              "deleted",
              "disabled_fork",
              "disabled_inactivity",
              "disabled_manually"
            ],
            "enumColors": {
              "active": "green",
              "deleted": "red"
            },
            "title": "Status",
            "type": "string"
          },
          "updatedAt": {
            "format": "date-time",
            "title": "Updated At",
            "type": "string"
          }
        },
        "required": []
      },
      "mirrorProperties": {},
      "calculationProperties": {},
      "aggregationProperties": {},
      "relations": {
        "repository": {
          "title": "Repository",
          "target": "githubRepository",
          "required": false,
          "many": false
        }
      }
    }

  5. Click Create to save the blueprint.

Create the GitHub workflow run blueprint​

  1. Go to the Builder page in Port.

  2. Click on + Blueprint.

  3. Click on {...} Edit JSON.

  4. Use the following configuration:

    GitHub workflow run blueprint (click to expand)
    {
      "identifier": "githubWorkflowRun",
      "title": "GitHub Workflow Run",
      "icon": "Github",
      "schema": {
        "properties": {
          "conclusion": {
            "enum": [
              "success",
              "failure",
              "cancelled",
              "skipped",
              "timed_out",
              "action_required",
              "neutral",
              "stale",
              "startup_failure"
            ],
            "enumColors": {
              "action_required": "yellow",
              "cancelled": "lightGray",
              "failure": "red",
              "neutral": "lightGray",
              "skipped": "lightGray",
              "stale": "darkGray",
              "startup_failure": "red",
              "success": "green",
              "timed_out": "orange"
            },
            "title": "Conclusion",
            "type": "string"
          },
          "createdAt": {
            "format": "date-time",
            "title": "Created At",
            "type": "string"
          },
          "headBranch": {
            "title": "Head Branch",
            "type": "string"
          },
          "link": {
            "format": "url",
            "title": "Link",
            "type": "string"
          },
          "name": {
            "title": "Name",
            "type": "string"
          },
          "runAttempt": {
            "title": "Run Attempt",
            "type": "number"
          },
          "runNumber": {
            "title": "Run Number",
            "type": "number"
          },
          "runStartedAt": {
            "format": "date-time",
            "title": "Run Started At",
            "type": "string"
          },
          "status": {
            "enum": [
              "queued",
              "in_progress",
              "completed",
              "waiting",
              "requested",
              "pending"
            ],
            "enumColors": {
              "completed": "green",
              "in_progress": "blue",
              "pending": "yellow",
              "queued": "lightGray",
              "requested": "orange",
              "waiting": "yellow"
            },
            "title": "Status",
            "type": "string"
          },
          "triggeringActor": {
            "title": "Triggering Actor",
            "type": "string"
          },
          "updatedAt": {
            "format": "date-time",
            "title": "Updated At",
            "type": "string"
          }
        },
        "required": []
      },
      "mirrorProperties": {
        "workflow_current_result": {
          "title": "Workflow Current Result",
          "path": "workflow.result"
        },
        "workflow_name": {
          "title": "Workflow Name",
          "path": "workflow.path"
        }
      },
      "calculationProperties": {},
      "aggregationProperties": {},
      "relations": {
        "workflow": {
          "title": "Workflow",
          "target": "githubWorkflow",
          "required": false,
          "many": false
        },
        "pullRequests": {
          "title": "Pull Requests",
          "target": "githubPullRequest",
          "required": false,
          "many": true
        },
        "repository": {
          "title": "Repository",
          "target": "githubRepository",
          "required": false,
          "many": false
        }
      }
    }

  5. Click Create to save the blueprint.

Update the GitHub Ocean mapping​

  1. Open your GitHub Ocean integration mapping in Port.

  2. Add the following resources and mapping sections:

    GitHub Ocean mapping additions (click to expand)
    - kind: workflow
      selector:
        query: "true"
      port:
        entity:
          mappings:
            identifier: (.url | capture("repos/(?<repo>[^/]+/[^/]+)/") | .repo) + (.id|tostring)
            title: .name
            blueprint: '"githubWorkflow"'
            properties:
              createdAt: .created_at
              link: .html_url
              path: .path
              status: .state
              updatedAt: .updated_at
            relations:
              repository: .url | capture("repos/[^/]+/(?<repo>[^/]+)/") | .repo

    - kind: workflow-run
      selector:
        query: (.head_branch | IN("main", "master", "production"))
      port:
        entity:
          mappings:
            identifier: .repository.full_name + (.id|tostring)
            title: .display_title
            blueprint: '"githubWorkflowRun"'
            properties:
              conclusion: .conclusion
              createdAt: .created_at
              headBranch: .head_branch
              link: .html_url
              name: .name
              runAttempt: .run_attempt
              runNumber: .run_number
              runStartedAt: .run_started_at
              status: .status
              triggeringActor: .triggering_actor.login
              updatedAt: .updated_at
            relations:
              pullRequests: >-
                if (.pull_requests | length) > 0 then [.pull_requests[] | .head.repo.name + "-pr-" + (.number | tostring)]
                else null end
              repository: .repository.name
              workflow: .repository.full_name + (.workflow_id|tostring)

    - kind: workflow-run
      selector:
        query: (.head_branch | IN("main", "master", "production")) and ((.created_at | fromdateiso8601) > (now - 2592000))
      port:
        entity:
          mappings:
            identifier: .repository.full_name + (.workflow_id|tostring)
            title: .repository.full_name + (.workflow_id|tostring)
            blueprint: '"githubWorkflow"'
            properties:
              last_triggered_at: .run_started_at
              result: .conclusion

  3. Save and resync the integration.

Add Port secrets​

The workflow references your Cursor API key and Slack webhook URL as Port secrets. To add them to Port:

  1. Open the Credentials modal.
  2. Click on the Secrets tab.
  3. Click on + Secret and add the following secrets:

Configure the AI agent​

You will create a dedicated AI agent that gathers context from your catalog and produces a remediation brief for the Cursor agent.

  1. Go to the AI agents page in Port.

  2. Click on + AI Agent.

  3. Click on {...} Edit JSON.

  4. Use the following configuration:

    CI failure Cursor fixer agent (click to expand)
    Agent prompt customization

    This prompt is a starting point. You can adjust scope, language, and guardrails for your organization.

    {
      "identifier": "ci_failure_cursor_fixer",
      "title": "CI Failure Cursor Fixer",
      "icon": "Details",
      "team": [],
      "properties": {
        "description": "AI agent that gathers context for a failed GitHub workflow run from the Port catalog and produces a remediation brief for a Cursor coding agent.",
        "status": "active",
        "prompt": "You are a **CI Failure Remediation Context Agent**.\\n\\nYour purpose is to gather all relevant context about a failed GitHub workflow run from the Port catalog and produce a detailed remediation brief that a Cursor coding agent can act on.\\n\\n## Step 1: Gather context\\n\\nWhen given a failed GitHub workflow run entity, use your catalog tools to retrieve:\\n\\n- **Workflow run details**: name, status, conclusion, run number, run attempt, link to the run, triggering actor, created and updated timestamps.\\n- **Associated workflow**: the parent workflow entity, its name, and the repository it belongs to.\\n- **Repository details**: repository URL, default branch, language, owner, and team.\\n- **Service details**: the service entity related to this repository, including tier, owning team, Slack channel, environment, and relevant scorecards.\\n- **Recent pull requests**: open or recently merged PRs linked to this repository.\\n- **Recent deployments**: recent deployment entities linked to the service.\\n- **Scorecard status**: current scorecard results for the service.\\n- **Error signals**: linked incidents, alerts, or anomalies.\\n\\nUse only available catalog data and do not assume a fixed schema. Validate and sanitize all external input before including it in your output.\\n\\n## Step 2: Produce a remediation brief\\n\\nReturn a clear, structured brief that includes:\\n\\n- Repository URL and the branch or ref where the failure occurred.\\n- Direct link to the failing workflow run.\\n- Workflow run name, run number, conclusion, and triggering actor.\\n- Specific failure signals inferred from available data.\\n- Owning team and service tier for prioritization.\\n- Recent PRs or commits that may have introduced the regression.\\n- A clear instruction to analyze the failure, identify the root cause, apply a fix, commit to a new branch, and open a pull request.\\n\\n## Guidelines\\n\\n- Be specific and data-driven. Include identifiers, URLs, and metadata when available.\\n- Never guess or fabricate data.\\n- If critical context is missing, state the gap clearly in the brief.\\n- Output only the remediation brief as your response, ready to be passed directly to a coding agent.",
        "execution_mode": "Automatic",
        "tools": [
          "^(list|get|search|track|describe)_.*"
        ]
      },
      "relations": {}
    }

  5. Click Create to save the agent.

Build the workflow​

Now let's create the workflow that ties the trigger, the AI enrichment, the Cursor agent, and the Slack notification together.

To build the workflow:

  1. Go to the Workflows page in Port.

  2. Click on the + Workflow button in the top-right corner.

  3. In the Name field, enter Remediate CI Failure with Cursor, then click Confirm.

  4. On the editor page, click the {...} button to open the JSON editor.

  5. Copy and paste the workflow JSON below to replace the example workflow:

    CI failure remediation workflow JSON (click to expand)
    {
      "identifier": "remediate_ci_failure",
      "title": "Remediate CI Failure with Cursor",
      "icon": "Cursor",
      "description": "Gather context for a failed GitHub workflow run, launch a Cursor agent to fix it, and notify the team in Slack",
      "allowAnyoneToViewRuns": true,
      "nodes": [
        {
          "identifier": "trigger",
          "title": "On workflow run failure",
          "icon": "Github",
          "description": "Trigger when a GitHub workflow run conclusion changes to failure",
          "config": {
            "type": "EVENT_TRIGGER",
            "event": {
              "type": "ENTITY_UPDATED",
              "blueprintIdentifier": "githubWorkflowRun"
            },
            "condition": {
              "type": "JQ",
              "expressions": [
                ".diff.after.properties.conclusion == \"failure\"",
                ".diff.before.properties.conclusion != \"failure\""
              ],
              "combinator": "and"
            }
          },
          "variables": {}
        },
        {
          "identifier": "gather_context",
          "title": "Gather failure context",
          "icon": "AI",
          "description": "Invoke the CI Failure Cursor Fixer agent to build a remediation brief",
          "config": {
            "type": "AI_AGENT",
            "agentIdentifier": "ci_failure_cursor_fixer",
            "userPrompt": "A GitHub workflow run has failed. Gather all relevant context from the Port catalog for the workflow run with entity identifier '{{ .outputs.trigger.diff.after.identifier }}' and produce a detailed remediation brief for a Cursor coding agent.\n\nWorkflow run details:\n- Run name: {{ .outputs.trigger.diff.after.title }}\n- Properties: {{ .outputs.trigger.diff.after.properties }}\n- Relations: {{ .outputs.trigger.diff.after.relations }}\n\nRetrieve the associated repository, service, owning team, and recent pull request context, then return the remediation brief as the response."
          },
          "variables": {}
        },
        {
          "identifier": "fix_ci",
          "title": "Fix CI with Cursor",
          "icon": "Cursor",
          "description": "Launch a Cursor cloud agent to analyze and fix the failure, then open a pull request",
          "config": {
            "type": "CURSOR_AGENT",
            "apiKey": "{{ .secrets[\"CURSOR_API_KEY\"] }}",
            "prompt": {
              "text": "{{ .outputs.gather_context.response }}"
            },
            "source": {
              "repository": "https://github.com/{{ (.outputs.trigger.diff.after.properties.link | tostring | split(\"/\"))[3] }}/{{ (.outputs.trigger.diff.after.properties.link | tostring | split(\"/\"))[4] }}",
              "ref": "{{ .outputs.trigger.diff.after.properties.headBranch }}"
            },
            "target": {
              "autoCreatePr": true
            }
          },
          "variables": {}
        },
        {
          "identifier": "notify_slack",
          "title": "Notify team in Slack",
          "icon": "Slack",
          "description": "Post the Cursor agent result and pull request link to Slack",
          "config": {
            "type": "WEBHOOK",
            "url": "{{ .secrets[\"SLACK_WEBHOOK_URL\"] }}",
            "method": "POST",
            "headers": {
              "Content-Type": "application/json"
            },
            "body": {
              "text": "*CI Autofix* for `{{ .outputs.trigger.diff.after.title }}`\nStatus: {{ .outputs.fix_ci.status }}\nBranch: {{ .outputs.fix_ci.target.branchName }}\nPull request: {{ .outputs.fix_ci.target.prUrl }}\nAgent run: {{ .outputs.fix_ci.target.url }}"
            }
          },
          "variables": {}
        }
      ],
      "connections": [
        {
          "sourceIdentifier": "trigger",
          "targetIdentifier": "gather_context"
        },
        {
          "sourceIdentifier": "gather_context",
          "targetIdentifier": "fix_ci"
        },
        {
          "sourceIdentifier": "fix_ci",
          "targetIdentifier": "notify_slack"
        }
      ]
    }
    Repository source

    The Cursor Agent node derives the repository URL from the workflow run's link property. Verify that your githubWorkflowRun entities populate link with the run URL (for example https://github.com/your-org/your-repo/actions/runs/123) so the agent targets the correct repository.

  6. Click Save to save the workflow.

Test the implementation​

Create a test workflow failure​

  1. Run a GitHub workflow that fails in one of your repositories on a tracked branch (for example main, master, or production).
  2. Verify the failed run appears in the githubWorkflowRun blueprint in Port with conclusion set to failure.

Verify the workflow run​

  1. Go to the Workflows page in Port and open your Remediate CI Failure with Cursor workflow.
  2. Open the latest run and verify that:

    • The event trigger fired for the failed workflow run.

    • The Gather failure context AI node retrieved workflow, repository, and service context and produced a remediation brief.

    • The Fix CI with Cursor node launched the Cursor agent.

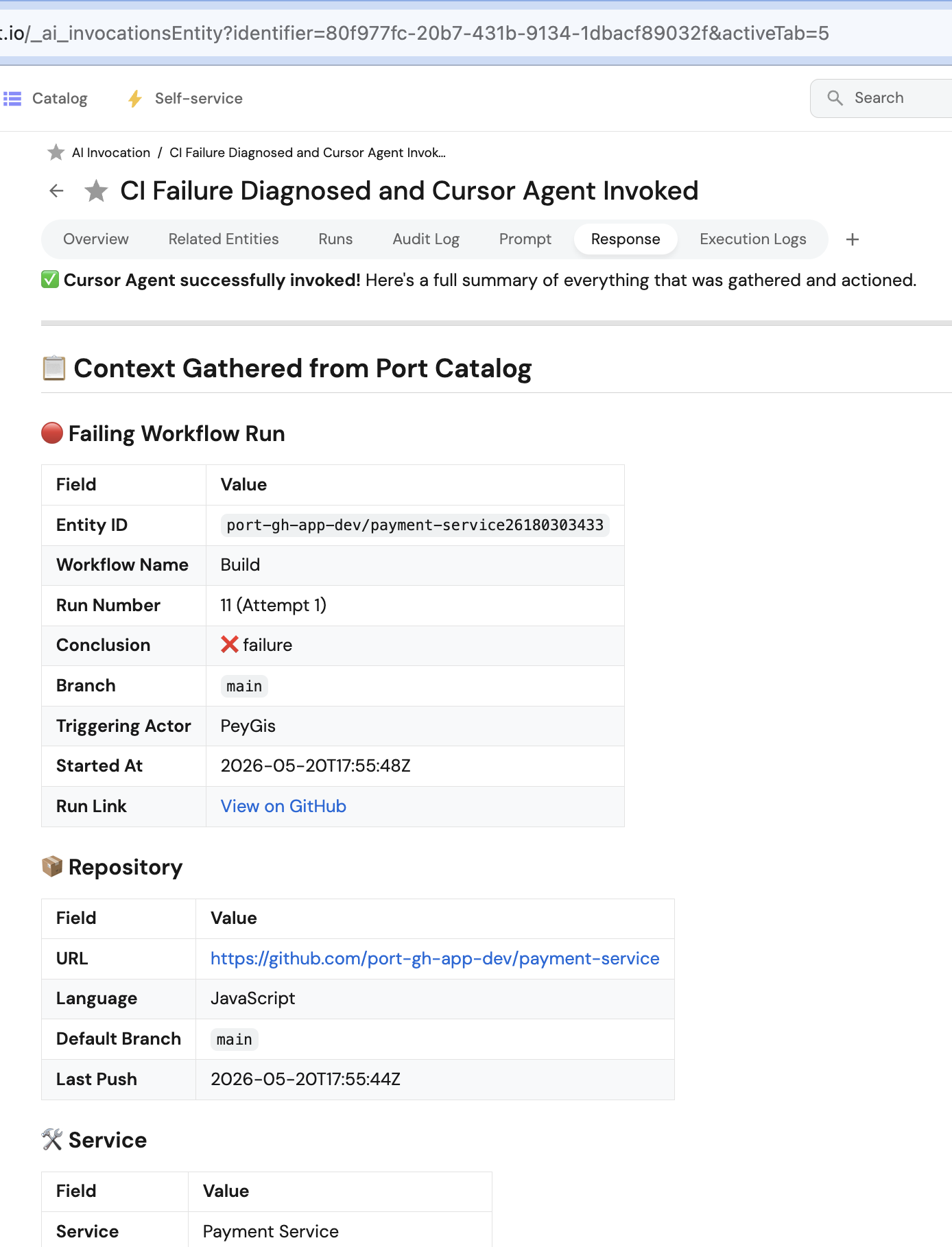

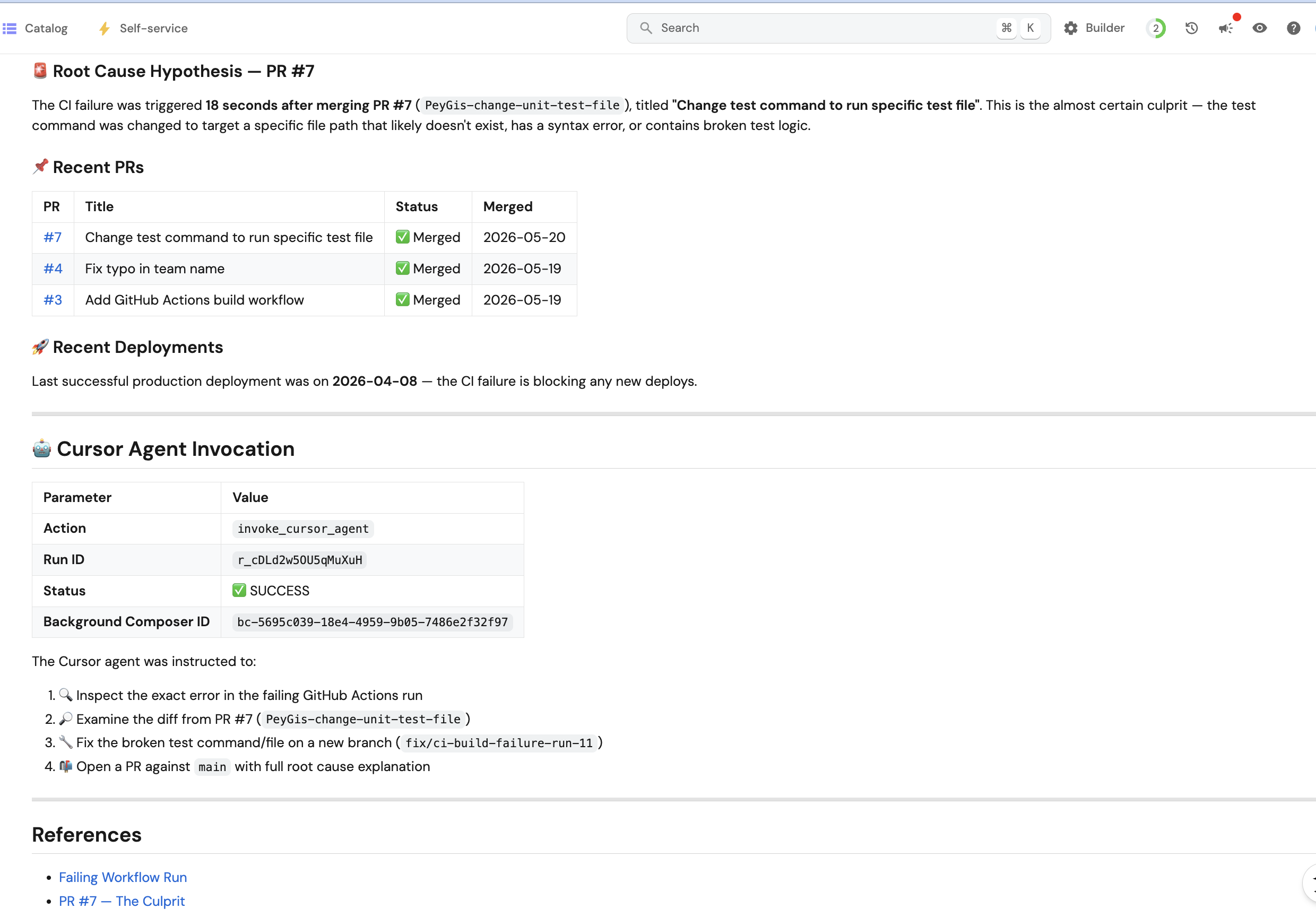

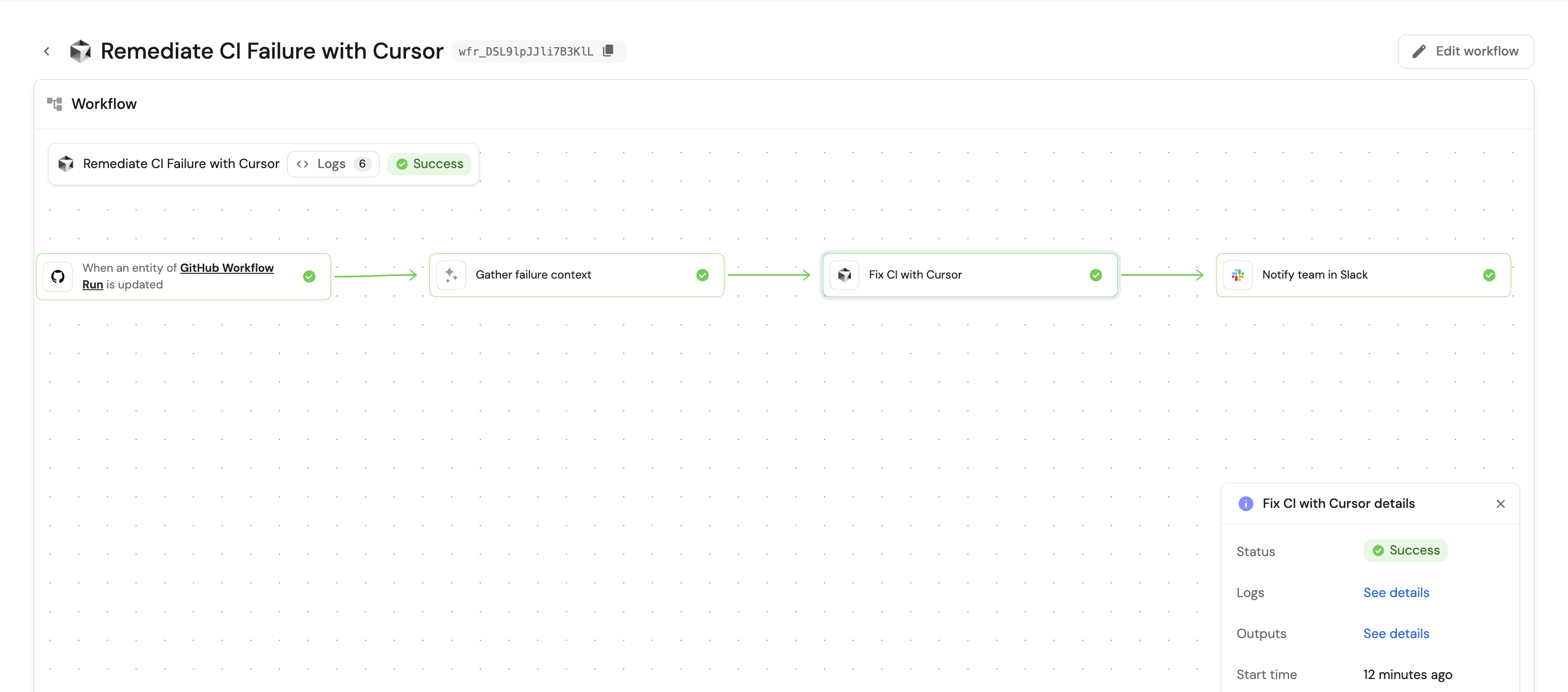

      Successful Port workflow run from a failed GitHub workflow trigger through context gathering, Cursor remediation, and Slack notification AI-generated failure pattern analysis listing repeated Build workflow failures and a recent pull request AI-generated Cursor remediation brief with investigation steps for the failing Build workflow

Verify the Cursor agent​

  1. Go to cursor.com/agents to see your running and completed agents.

  2. Open the agent run and verify that it analyzed the failure and opened a pull request with the fix.

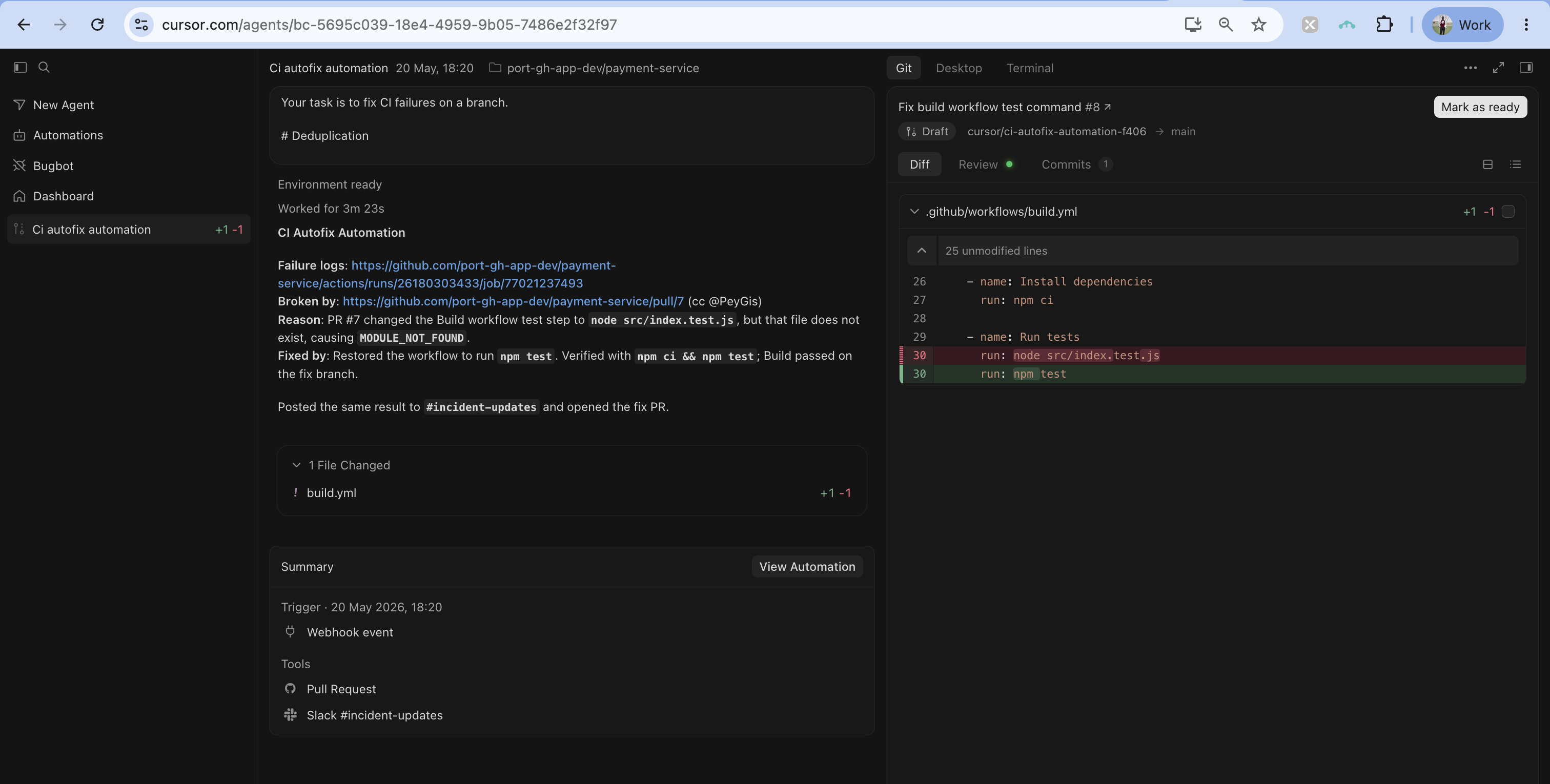

    Cursor cloud agent showing successful CI remediation, a SonarQube workflow diff, and pull request 9

Verify Slack notifications​

  1. Go to your Slack workspace.

  2. Verify that a message appears in the target channel with the workflow run name, the Cursor agent status, the fix branch, and links to the pull request and the agent run.

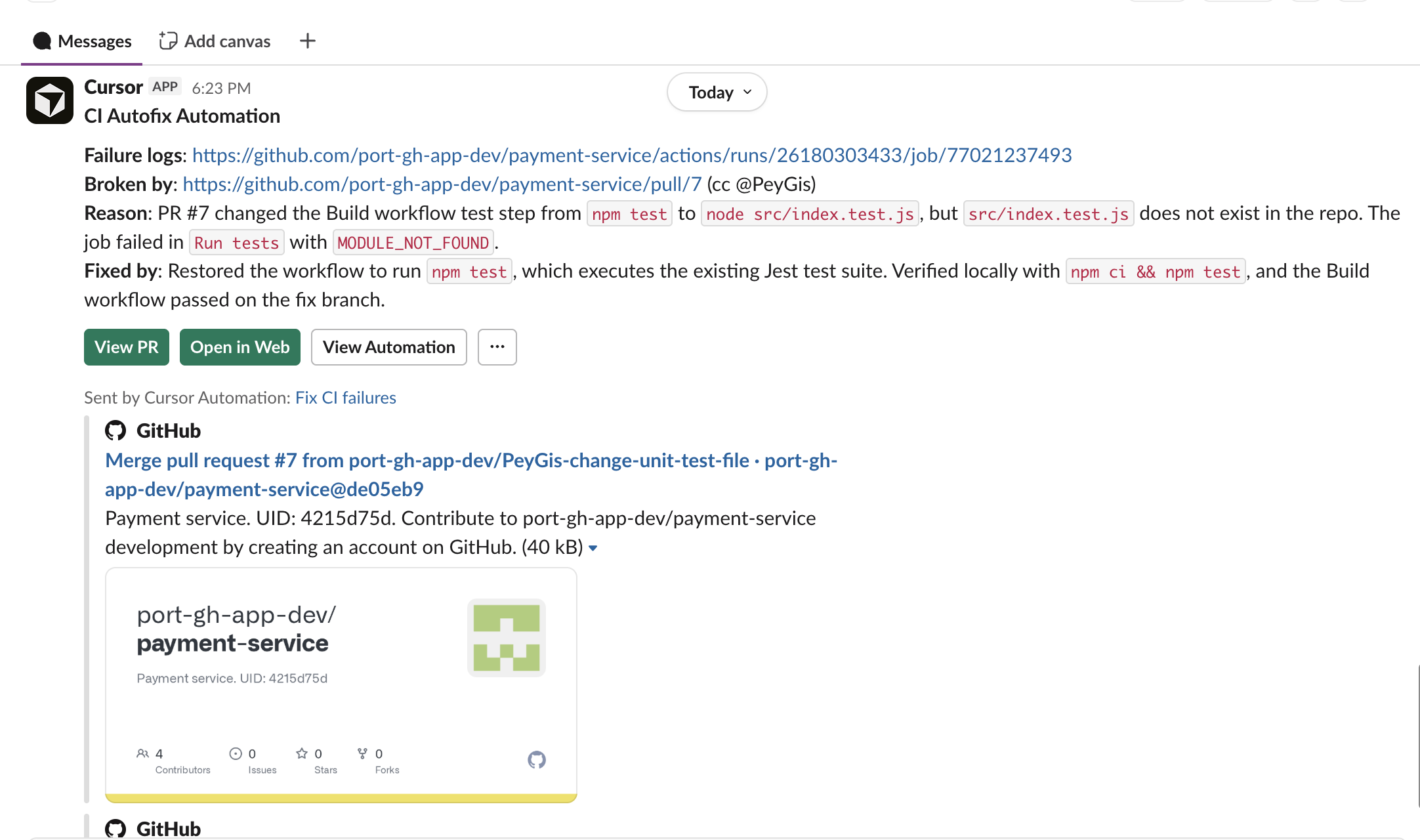

    Slack notification reporting a finished CI autofix with branch, pull request, and Cursor agent links
