Pull GitHub metrics and build visualizations

This guide demonstrates how to collect GitHub metrics and build useful visualizations in Port to track key performance indicators. You will learn how to:

Extend existing blueprints to capture detailed PR and workflow metrics.
Set up automated data collection using GitHub Actions to pull metrics from the GitHub API.
Build dashboards in Port to visualize engineering performance metrics.

Common use cases

Visualize engineering productivity and identify areas for improvement.
Track workflow success rates and execution times to identify bottlenecks.
Set up automated metric collection to maintain up-to-date performance data.

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
Port's GitHub app is installed in your account.
You have access to GitHub repositories and organizations you want to monitor.

Dedicated Workflows Repository

We recommend creating a dedicated repository for the workflows that are used by Port actions.

Set up data model

The Service and User blueprints are created by default during onboarding. Likewise, the GitHub Pull Request blueprint is created by default when installing Port's GitHub app. However, we need to extend the existing Pull Request blueprint to capture the detailed metrics we want to track.

Extend the GitHub Pull Request blueprint

Go to the Builder page of your portal.
Find and click on the Pull Request blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add these additional properties to the existing schema:

Extended Pull Request properties (Click to expand)

{
  "pr_size": {
    "title": "PR Size",
    "type": "number"
  },
  "pr_lifetime": {
    "title": "PR Lifetime (seconds)",
    "type": "number"
  },
  "pr_pickup_time": {
    "title": "PR Pickup Time (seconds)",
    "type": "number"
  },
  "pr_success_rate": {
    "title": "PR Success Rate (%)",
    "type": "number"
  },
  "review_participation": {
    "title": "Review Participation",
    "type": "number"
  }
}

Click Save to update the blueprint.

Create the GitHub Workflow blueprint

We need to create a new blueprint to track GitHub workflow metrics.

Go to the Builder page of your portal.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add this JSON schema:

GitHub Workflow blueprint (Click to expand)

{
  "identifier": "githubWorkflow",
  "title": "Workflow",
  "icon": "Github",
  "schema": {
    "properties": {
      "path": {
        "title": "Path",
        "type": "string"
      },
      "status": {
        "title": "Status",
        "type": "string",
        "enum": [
          "active",
          "deleted",
          "disabled_fork",
          "disabled_inactivity",
          "disabled_manually"
        ],
        "enumColors": {
          "active": "green",
          "deleted": "red"
        }
      },
      "createdAt": {
        "title": "Created At",
        "type": "string",
        "format": "date-time"
      },
      "updatedAt": {
        "title": "Updated At",
        "type": "string",
        "format": "date-time"
      },
      "deletedAt": {
        "title": "Deleted At",
        "type": "string",
        "format": "date-time"
      },
      "link": {
        "title": "Link",
        "type": "string",
        "format": "url"
      },
      "medianDuration_last_30_days": {
        "title": "Median Duration Last 30 days",
        "description": "Median Duration of Successful runs in the last 30 days",
        "type": "number"
      },
      "maxDuration_last_30_days": {
        "title": "Max Duration Last 30 days",
        "description": "Max Duration of Successful runs in the last 30 days",
        "type": "number"
      },
      "minDuration_last_30_days": {
        "title": "Min Duration Last 30 days",
        "description": "Min Duration of Successful runs in the last 30 days",
        "type": "number"
      },
      "meanDuration_last_30_days": {
        "title": "Mean Duration Last 30 days",
        "description": "Mean Duration of Successful runs in the last 30 days",
        "type": "number"
      },
      "totalRuns_last_30_days": {
        "title": "Total Runs Last 30 days",
        "description": "Total workflow runs in the last 30 days",
        "type": "number"
      },
      "totalFailures_last_30_days": {
        "title": "Total Failures Last 30 days",
        "description": "Total Workflow Run Failures in the last 30 days",
        "type": "number"
      },
      "successRate_last_30_days": {
        "title": "Success Rate Last 30 days",
        "description": "Success Rate for the workflow in the last 30 days",
        "type": "number"
      },
      "medianDuration_last_90_days": {
        "title": "Median Duration Last 90 days",
        "description": "Median Duration of Successful runs in the last 90 days",
        "type": "number"
      },
      "maxDuration_last_90_days": {
        "title": "Max Duration Last 90 days",
        "description": "Max Duration of Successful runs in the last 90 days",
        "type": "number"
      },
      "minDuration_last_90_days": {
        "title": "Min Duration Last 90 days",
        "description": "Min Duration of Successful runs in the last 90 days",
        "type": "number"
      },
      "meanDuration_last_90_days": {
        "title": "Mean Duration Last 90 days",
        "description": "Mean Duration of Successful runs in the last 90 days",
        "type": "number"
      },
      "totalRuns_last_90_days": {
        "title": "Total Runs Last 90 days",
        "description": "Total workflow runs in the last 90 days",
        "type": "number"
      },
      "totalFailures_last_90_days": {
        "title": "Total Failures Last 90 days",
        "description": "Total Workflow Run Failures in the last 90 days",
        "type": "number"
      },
      "successRate_last_90_days": {
        "title": "Success Rate Last 90 days",
        "description": "Success Rate for the workflow in the last 90 days",
        "type": "number"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {
    "repository": {
      "title": "Repository",
      "target": "service",
      "required": false,
      "many": false
    }
  }
}

Click Save to create the blueprint.

Set up metric collection

Now we will set up automated metric collection using the GitHub metrics exporter. This tool will pull data from the GitHub API and calculate the metrics we defined in our blueprints.

Configure GitHub Personal Access Token

The metric exporter needs access to the GitHub API to pull the relevant data. You will need to configure a classic Personal Access Token (PAT) with the following permissions:

repo - Full control of private repositories
workflow - Update GitHub Action workflows
read:org - Read org and team data
read:user - Read user profile data
user:email - Access user email addresses
read:enterprise - Read enterprise data
read:audit_log - Read audit logs (required for determining join dates)

Required permissions

The GitHub PAT requires enterprise-level permissions to access audit logs for determining user join dates. Make sure your token has the necessary scope.

Set up the metrics exporter

Clone the repository from https://github.com/port-experimental/github-metrics.git
Copy the example environment file and configure it with your access keys:
```
cp .env.example .env
```
Fill out the .env file with the following variables:
- PORT_CLIENT_ID - Your Port Client ID
- PORT_CLIENT_SECRET - Your Port Client Secret
- X_GITHUB_ORGS - Comma-separated list of GitHub organizations to monitor
- X_GITHUB_ENTERPRISE - Your GitHub Enterprise instance (if applicable)
- X_GITHUB_TOKEN - Your GitHub Personal Access Token
Install the CLI:
```
npm install
npm run build
npm link
```

Run the metric collectors:

gh-metrics onboarding-metrics
gh-metrics pr-metrics
gh-metrics workflow-metrics

Running as a GitHub Action

For automated metric collection, you can set up the metrics exporter to run as a GitHub Action on a daily basis.

Add GitHub secrets

In your GitHub repository, go to Settings > Secrets and add the following secrets:

PORT_CLIENT_ID - Port Client ID learn more.
PORT_CLIENT_SECRET - Port Client Secret learn more.
X_GITHUB_ORGS - Comma-separated list of GitHub organizations to monitor.
X_GITHUB_ENTERPRISE - Your GitHub Enterprise instance (if applicable).
X_GITHUB_TOKEN - Your GitHub Personal Access Token.

Create GitHub workflow

Create the file .github/workflows/collect_metrics.yml in your repository:

GitHub metrics collection workflow (Click to expand)

name: collect_metrics
on:
    workflow_dispatch:
    schedule:
      - cron: '0 0 * * *'
jobs:
    onboarding:
      name: onboarding_metrics
      runs-on: ubuntu-latest
      steps:
        - uses: actions/checkout@v4
        - uses: oven-sh/setup-bun@v2
        - run: bun run src/main.ts onboarding-metrics
          env:
            X_GITHUB_ORGS: ${{ secrets.X_GITHUB_ORGS }}
            X_GITHUB_ENTERPRISE: ${{ secrets.X_GITHUB_ENTERPRISE }}
            X_GITHUB_TOKEN: ${{ secrets.X_GITHUB_TOKEN }}
            PORT_CLIENT_ID: ${{ secrets.PORT_CLIENT_ID }}
            PORT_CLIENT_SECRET: ${{ secrets.PORT_CLIENT_SECRET }}
    pr:
      name: pr_metrics
      runs-on: ubuntu-latest
      steps:
        - uses: actions/checkout@v4
        - uses: oven-sh/setup-bun@v2
        - run: bun run src/main.ts pr-metrics
          env:
            X_GITHUB_ORGS: ${{ secrets.X_GITHUB_ORGS }}
            X_GITHUB_ENTERPRISE: ${{ secrets.X_GITHUB_ENTERPRISE }}
            X_GITHUB_TOKEN: ${{ secrets.X_GITHUB_TOKEN }}
            PORT_CLIENT_ID: ${{ secrets.PORT_CLIENT_ID }}
            PORT_CLIENT_SECRET: ${{ secrets.PORT_CLIENT_SECRET }}
    workflow:
      name: workflow_metrics
      runs-on: ubuntu-latest
      steps:
        - uses: actions/checkout@v4
        - uses: oven-sh/setup-bun@v2
        - run: bun run src/main.ts workflow-metrics
          env:
            X_GITHUB_ORGS: ${{ secrets.X_GITHUB_ORGS }}
            X_GITHUB_ENTERPRISE: ${{ secrets.X_GITHUB_ENTERPRISE }}
            X_GITHUB_TOKEN: ${{ secrets.X_GITHUB_TOKEN }}
            PORT_CLIENT_ID: ${{ secrets.PORT_CLIENT_ID }}
            PORT_CLIENT_SECRET: ${{ secrets.PORT_CLIENT_SECRET }}

This workflow will run daily at midnight and collect metrics for:

Onboarding metrics - Track user join dates and team assignments
PR metrics - Calculate PR size, lifetime, pickup time, and success rates
Workflow metrics - Track workflow execution times and success rates

Metric collection frequency

The metrics are collected daily by default. You can adjust the cron schedule in the GitHub Action to collect metrics more or less frequently based on your needs.

Performance optimization

For large organizations with many repositories, consider running the metrics collection during off-peak hours to avoid GitHub API rate limits.

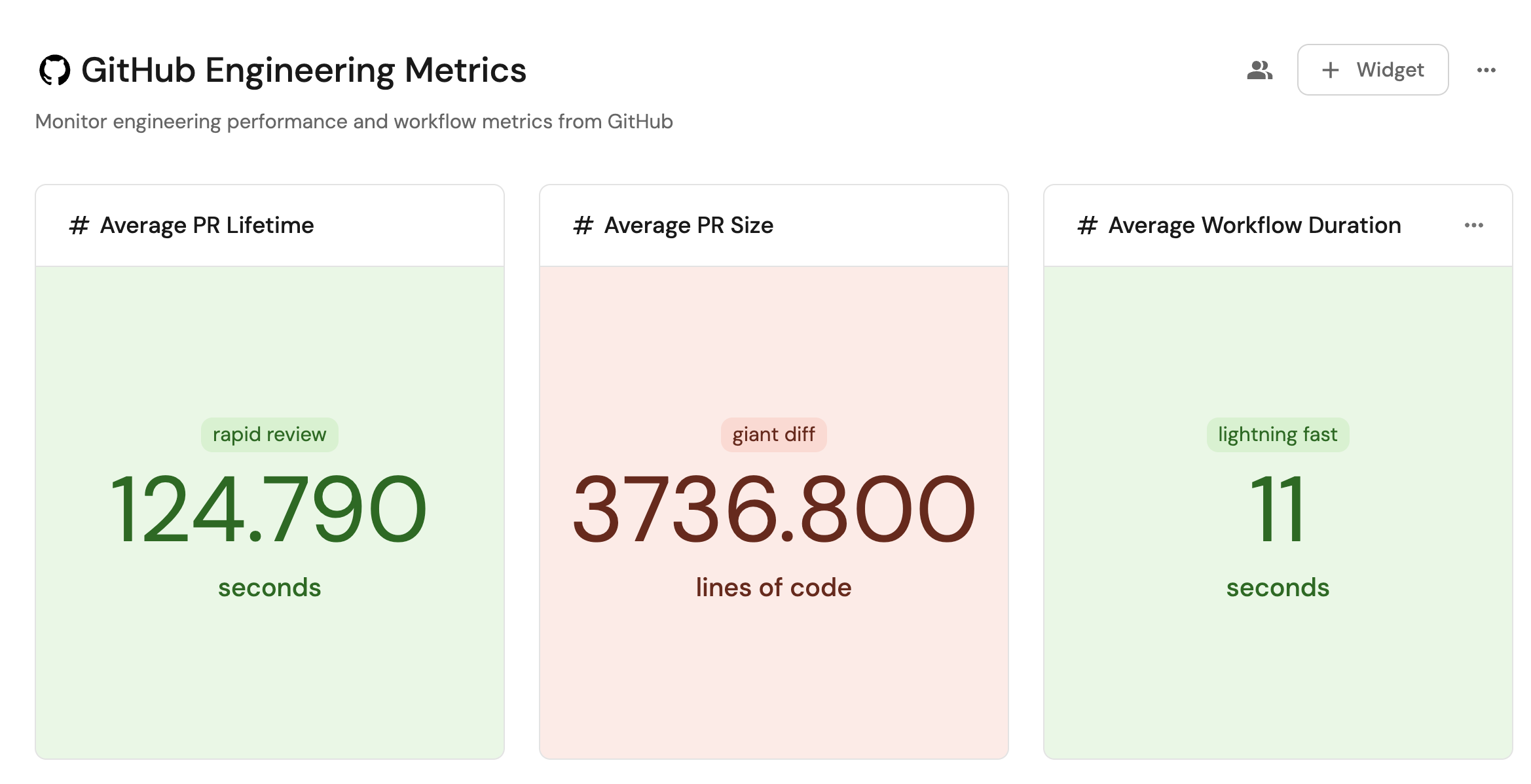

Visualize metrics dashboard

With your data collection in place, we can create a dashboard in Port to visualize all GitHub metrics and track engineering performance.

Create a dashboard

Navigate to the Catalog page of your portal.
Click on the + New button in the left sidebar.
Select New dashboard.
Name the dashboard GitHub Engineering Metrics.
Input Monitor engineering performance and workflow metrics from GitHub under Description.
Select the Github icon.
Click Create.

Add widgets

In the new dashboard, create the following widgets to visualize your GitHub metrics:

Average PR Lifetime (click to expand)

Click + Widget and select Number Chart.
Title: Average PR Lifetime (add the Github icon).
Select Average entities Chart type and choose GitHub Pull Request as the Blueprint.
Select pr_lifetime for the Property and choose Average of total.
Select custom as the Unit and input seconds as the Custom unit.
Click Save.

Average PR Size (click to expand)

Click + Widget and select Number Chart.
Title: Average PR Size (add the Github icon).
Select Average entities Chart type and choose GitHub Pull Request as the Blueprint.
Select pr_size for the Property and choose Average of total.
Select custom as the Unit and input lines of code as the Custom unit.
Click Save.

Total Merged PRs (click to expand)

Click + Widget and select Number Chart.
Title: Total Merged PRs (add the Github icon).
Select Count entities Chart type and choose GitHub Pull Request as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter merged PRs:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"pr_success_rate",
                "operator":"=",
                "value": 1
            }
        ]
    }
]

Select custom as the Unit and input PRs as the Custom unit.
Click Save.

Workflow Success Rates (click to expand)

Click + Widget and select Number Chart.
Title: Average Workflow Success Rate (30 days) (add the Github icon).
Select Average entities Chart type and choose Workflow as the Blueprint.
Select successRate_last_30_days for the Property and choose Average of total.
Select custom as the Unit and input % as the Custom unit.
Click Save.

Average Workflow Duration (click to expand)

Click + Widget and select Number Chart.
Title: Average Workflow Duration (add the Github icon).
Select Average entities Chart type and choose Workflow as the Blueprint.
Select meanDuration_last_30_days for the Property and choose Average of total.
Select custom as the Unit and input seconds as the Custom unit.
Click Save.

PR Metrics Table (click to expand)

Click + Widget and select Table.
Title: PR Performance Metrics (add the Github icon).
Choose the GitHub Pull Request blueprint.
Click Save to add the widget to the dashboard.
Click on the ... button in the top right corner of the table and select Customize table.
In the top right corner of the table, click on Manage Properties and add the following properties:
- Title: The PR title.
- PR Size: Number of lines changed.
- PR Lifetime (seconds): Time from creation to merge.
- PR Pickup Time (seconds): Time to first review.
- PR Success Rate (%): Percentage of successful PRs.
- Review Participation: Number of reviewers.
- State: Current PR state (open, closed, merged).
Click on the Group by any Column and select Repository.
Click on the save icon in the top right corner of the widget to save the customized table.

Common use cases​

Prerequisites​

Set up data model​

Extend the GitHub Pull Request blueprint​

Create the GitHub Workflow blueprint​

Set up metric collection​

Configure GitHub Personal Access Token​

Set up the metrics exporter​

Running as a GitHub Action​
