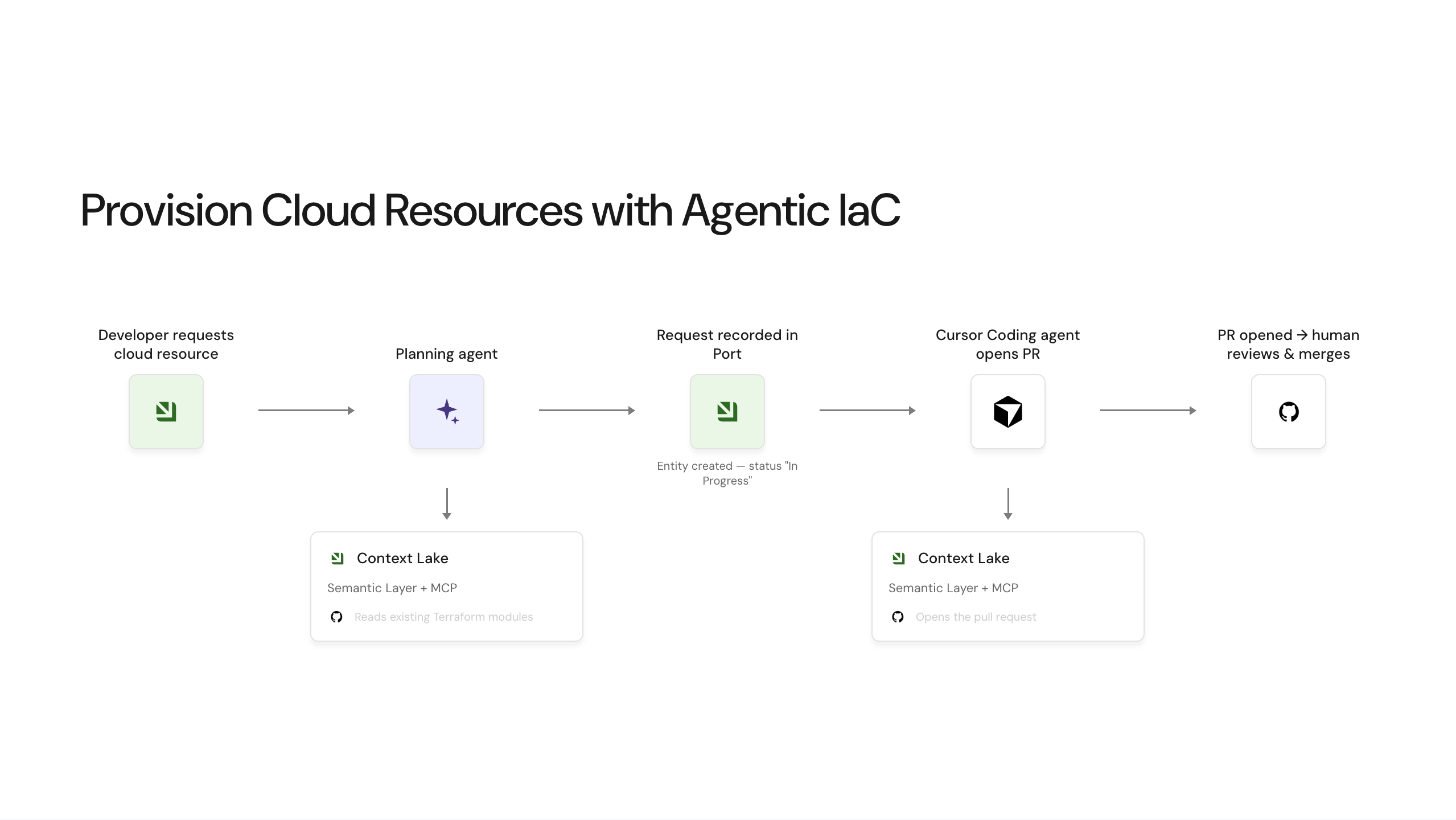

We will build a self-service workflow that lets a developer request a cloud resource and walks it, unattended, from intent to an open pull request. The workflow fetches context about the requesting service, asks AI to draft an implementation plan from your existing Terraform modules, records the request in Port's catalog, and uses a coding agent to open a real pull request against your GitOps repository. This gives developers a fast, governed path to infrastructure changes, instead of a ticket that waits for a platform engineer to pick up.

This is the basic, cloud-only version of the pattern shown in Agentic resource management.

Prerequisites

• A GitHub integration connected to the GitOps repository that holds your Terraform modules.
• A coding agent with access to that repository and its API key stored as a Port secret, so the workflow can open a pull request on your behalf. This guide uses the Cursor Agent node with a CURSOR_API_KEY secret, but you can use other coding agents, like Claude or GitHub Copilot, instead.
• Port AI enabled on your organization.
• A property on your service blueprint that gives the coding agent more context, for example criticality.
• Port's Slack app installed in your workspace (optional), for example to send a Slack message when the pull request opens.

Create the cloud resource request blueprint

This workflow builds on the existing service blueprint and adds one new blueprint, cloud_resource_request, which tracks a request from submission through to a merged (or rejected) change.

The status property reflects the request's own lifecycle, not the physical infrastructure: it starts at In Progress while the plan is being drafted, moves to Pending Approval once the pull request is submitted, and becomes Approved once that pull request is merged, or Rejected if it's closed without merging. This guide's workflow only sets the first two states automatically. Merging (and therefore Approved/Rejected) happens through your normal GitHub review process, so nothing in this basic workflow sets those two - see Enhancements for syncing that decision back into Port automatically.

1. Go to the Builder page in Port.

2. Click on + Blueprint.

3. Click on the Edit JSON {...} button in the top right corner of the modal.

4. Add this JSON schema:

   Cloud resource request blueprint (click to expand)

   {
     "identifier": "cloud_resource_request",
     "title": "Cloud Resource Request",
     "icon": "RequestQuote",
     "schema": {
       "properties": {
         "status": {
           "type": "string",
           "title": "Status",
           "enum": ["In Progress", "Pending Approval", "Approved", "Rejected"],
           "enumColors": {
             "In Progress": "lightGray",
             "Pending Approval": "yellow",
             "Approved": "green",
             "Rejected": "red"
           }
         },
         "resource_type": {
           "type": "string",
           "title": "Resource type"
         },
         "environment": {
           "type": "string",
           "title": "Environment",
           "enum": ["Development", "Staging", "Production"],
           "enumColors": {
             "Development": "green",
             "Staging": "yellow",
             "Production": "red"
           }
         },
         "additional_context": {
           "type": "string",
           "title": "Additional context",
           "format": "markdown"
         },
         "implementation_plan": {
           "type": "string",
           "title": "Implementation plan",
           "format": "markdown"
         },
         "architecture": {
           "type": "string",
           "title": "Architecture",
           "format": "markdown"
         },
         "pr_url": {
           "type": "string",
           "title": "PR URL",
           "format": "url"
         },
         "requested_at": {
           "type": "string",
           "title": "Requested at",
           "format": "date-time"
         }
       },
       "required": ["status", "resource_type"]
     },
     "mirrorProperties": {},
     "calculationProperties": {},
     "aggregationProperties": {},
     "relations": {
       "requested_by": {
         "title": "Requested by",
         "target": "_user",
         "required": false,
         "many": false
       }
     }
   }

5. Click Save to create the blueprint.

Configure the GitHub MCP connector

The AI node that drafts the implementation plan needs a way to read your existing Terraform modules. We'll set up a GitHub MCP connector so it can search and read files from your GitOps repository.

Shared header authentication, not OAuth

Workflow AI nodes run with an organization automation token rather than an individual user's session, so the per-user OAuth setup described in GitHub MCP connector doesn't apply here. Instead, configure the connector with a GitHub token in the request headers, shared across the organization. See the MCP connectors page's FAQ on shared header authentication vs. per-user OAuth for more on this distinction.

1. Create a fine-grained personal access token with Contents: read scope on your GitOps repository.
2. Store that token as a Port secret (for example GITHUB_MCP_TOKEN).
3. Go to the Data sources page in Port.
4. Click on + Data source, then select the MCP Servers tab.
5. Select Custom Server and fill in:
   • Name: git_hub (or a name of your choice - you'll reference this identifier from the workflow).
   • URL: https://api.githubcopilot.com/mcp/ - GitHub's own hosted remote MCP server.
   • Headers: { "Authorization": "Bearer {{ .secrets[\"GITHUB_MCP_TOKEN\"] }}" } (referencing the secret from step 2).
6. Under Allowed Tools, add read-only tools for searching and reading repository content (for example, tools for searching code and fetching file contents).
7. Click Publish to make the connector available.

Build the workflow

This workflow chains a self-service trigger, an entity-creation step, an AI action node that drafts the implementation plan, a Cursor Agent node that opens the pull request, an entity-update step, and an optional Slack notification. It's grouped under the "Agentic Resource Management" category in the Self-Service Hub.

1. Go to the Workflows page in Port.

2. Click on the + Workflow button in the top-right corner.

3. In the workflow page, click on the {...} button and paste the following definition:

   Request cloud resource workflow JSON (click to expand)

   {
     "identifier": "request_cloud_resource_basic",
     "title": "Request Cloud Resource",
     "icon": "Cloud",
     "description": "Request a cloud resource, draft an implementation plan with AI, and open a pull request against the GitOps repository",
     "category": "Agentic Resource Management",
     "allowAnyoneToViewRuns": true,
     "nodes": [
       {
         "identifier": "trigger",
         "title": "Request Cloud Resource",
         "icon": "Cloud",
         "config": {
           "type": "SELF_SERVE_TRIGGER",
           "userInputs": {
             "properties": {
               "resource_type": {
                 "type": "string",
                 "title": "Resource type",
                 "default": "RDS Database",
                 "enum": ["RDS Database", "S3 Bucket", "EC2 Instance", "EKS Cluster", "ElastiCache"]
               },
               "environment": {
                 "type": "string",
                 "title": "Environment",
                 "default": "Staging",
                 "enum": ["Development", "Staging", "Production"],
                 "enumColors": {
                   "Development": "green",
                   "Staging": "yellow",
                   "Production": "red"
                 }
               },
               "service": {
                 "type": "string",
                 "format": "entity",
                 "blueprint": "service",
                 "title": "Service"
               },
               "additional_context": {
                 "type": "string",
                 "title": "Additional context",
                 "description": "Describe any special requirements",
                 "format": "markdown"
               }
             },
             "required": ["resource_type", "environment", "service"],
             "order": ["resource_type", "environment", "service", "additional_context"]
           }
         }
       },
       {
         "identifier": "fetch_service_context",
         "title": "Fetch Service Context",
         "icon": "Port",
         "config": {
           "type": "WEBHOOK",
           "url": "https://api.port.io/v1/blueprints/service/entities/{{ .outputs[\"trigger\"].service }}",
           "method": "GET",
           "synchronized": true
         },
         "variables": {
           "request_id": "{{ .outputs[\"trigger\"].environment | ascii_downcase }}-{{ .outputs[\"trigger\"].service }}-{{ .outputs[\"trigger\"].resource_type | gsub(\" \"; \"-\") | ascii_downcase }}-{{ .workflowRun.identifier | gsub(\"wfr_\"; \"\") | ascii_downcase }}",
           "service_criticality": "{{ .result.response.data.entity.properties.criticality }}",
           "service_title": "{{ .result.response.data.entity.title }}"
         }
       },
       {
         "identifier": "create_resource_request",
         "title": "Create Resource Request",
         "icon": "NewPage",
         "config": {
           "type": "UPSERT_ENTITY",
           "blueprintIdentifier": "cloud_resource_request",
           "mapping": {
             "identifier": "{{ .outputs[\"fetch_service_context\"].request_id }}",
             "title": "{{ .outputs[\"trigger\"].resource_type }} for {{ .outputs[\"fetch_service_context\"].service_title }}",
             "properties": {
               "status": "In Progress",
               "resource_type": "{{ .outputs[\"trigger\"].resource_type }}",
               "environment": "{{ .outputs[\"trigger\"].environment }}",
               "additional_context": "{{ .outputs[\"trigger\"].additional_context }}",
               "requested_at": "{{ now | todateiso8601 }}"
             },
             "relations": {
               "requested_by": "{{ .workflowRun.trigger.by.email }}"
             }
           }
         }
       },
       {
         "identifier": "generate_implementation_plan",
         "title": "Generate Implementation Plan",
         "icon": "AI",
         "config": {
           "type": "AI",
           "userPrompt": "Generate an implementation plan for provisioning a cloud resource.\n\nRequest details:\n- Resource type: {{ .outputs[\"trigger\"].resource_type }}\n- Environment: {{ .outputs[\"trigger\"].environment }}\n- Service: {{ .outputs[\"fetch_service_context\"].service_title }}\n- Service criticality: {{ .outputs[\"fetch_service_context\"].service_criticality }}\n- Additional requirements: {{ .outputs[\"trigger\"].additional_context }}\n\nGenerate:\n1. **Implementation plan** - step-by-step pseudo-code for the Terraform PR, reusing existing modules wherever possible\n2. **Architecture diagram** - a simple Mermaid flowchart with a maximum of 5-7 nodes, showing the environment, the service, and the new resource",
           "systemPrompt": "You are an infrastructure architect. Generate clear, actionable implementation plans using Terraform best practices. Prefer existing modules over new resources. Be concise.\n\nFor architecture diagrams, generate simple Mermaid flowcharts with a maximum of 5-7 nodes. Focus only on the core components. Do not include security groups, IAM roles, KMS keys, or other low-level details.",
           "tools": ["git_hub_get_file_contents", "git_hub_search_repositories", "git_hub_search_code"],
           "mcpServers": [
             { "identifier": "git_hub" }
           ],
           "outputSchema": {
             "type": "object",
             "properties": {
               "implementation_plan": { "type": "string" },
               "architecture": { "type": "string" }
             },
             "required": ["implementation_plan", "architecture"]
           }
         },
         "variables": {
           "implementation_plan": "{{ .result.response | fromjson | .implementation_plan }}",
           "architecture": "{{ .result.response | fromjson | .architecture }}"
         }
       },
       {
         "identifier": "open_pull_request",
         "title": "Open Pull Request",
         "icon": "Cursor",
         "config": {
           "type": "CURSOR_AGENT",
           "apiKey": "{{ .secrets[\"CURSOR_API_KEY\"] }}",
           "prompt": {
             "text": "Apply the following implementation plan to this repository's Terraform modules, then open a pull request.\n\nPlan:\n{{ .outputs[\"generate_implementation_plan\"].implementation_plan }}\n\nPull request requirements (follow exactly, do not deviate):\n1. PR title MUST be exactly: \"[{{ .outputs[\"trigger\"].environment }}] Provision {{ .outputs[\"trigger\"].resource_type }} for {{ .outputs[\"fetch_service_context\"].service_title }}\"\n2. Open the PR as a normal, ready-for-review pull request. Do NOT open it as a draft.\n3. The PR description must contain only: a one-paragraph summary of the change, and a \"## Changes\" section listing the files touched as a plain bullet list. Do NOT include a task checklist, TODO list, or any checkbox items (no \"- [ ]\" items) in the description.\n4. Do NOT post any comments on the PR after creation (no follow-up comments, no bot comments, no plan recap comments). The implementation plan is already recorded in Port; it does not need to be repeated in a PR comment.\n5. Make exactly one commit for this change with a clear, conventional commit message."
           },
           "source": {
             "repository": "https://github.com/your-org/gitops-repo",
             "ref": "main"
           },
           "target": {
             "autoCreatePr": true
           }
         },
         "variables": {
           "pr_url": "{{ .result.target.prUrl }}"
         }
       },
       {
         "identifier": "update_request_pr_submitted",
         "title": "Update Request - PR Submitted",
         "icon": "Link",
         "config": {
           "type": "UPSERT_ENTITY",
           "blueprintIdentifier": "cloud_resource_request",
           "mapping": {
             "identifier": "{{ .outputs[\"fetch_service_context\"].request_id }}",
             "properties": {
               "status": "Pending Approval",
               "pr_url": "{{ .outputs[\"open_pull_request\"].pr_url }}",
               "implementation_plan": "{{ .outputs[\"generate_implementation_plan\"].implementation_plan }}",
               "architecture": "{{ .outputs[\"generate_implementation_plan\"].architecture }}"
             }
           }
         }
       },
       {
         "identifier": "notify_slack",
         "title": "Send Slack Notification",
         "icon": "Slack",
         "config": {
           "type": "WEBHOOK",
           "url": "https://slack.com/api/chat.postMessage",
           "method": "POST",
           "onTimeout": "continue",
           "onFailure": "continue",
           "headers": {
             "Content-Type": "application/json",
             "Authorization": "Bearer {{ .secrets.__SLACK_APP_BOT_TOKEN_T123 }}"
           },
           "body": {
             "channel": "C0123456789",
             "text": "New resource request pending approval",
             "blocks": [
               {
                 "type": "section",
                 "text": {
                   "type": "mrkdwn",
                   "text": "*{{ .outputs[\"fetch_service_context\"].service_title }}* requested a *{{ .outputs[\"trigger\"].resource_type }}* in *{{ .outputs[\"trigger\"].environment }}*. Pending Approval.\nPR: {{ .outputs[\"open_pull_request\"].pr_url }}"
                 }
               }
             ]
           }
         }
       }
     ],
     "connections": [
       { "sourceIdentifier": "trigger", "targetIdentifier": "fetch_service_context" },
       { "sourceIdentifier": "fetch_service_context", "targetIdentifier": "create_resource_request" },
       { "sourceIdentifier": "create_resource_request", "targetIdentifier": "generate_implementation_plan" },
       { "sourceIdentifier": "generate_implementation_plan", "targetIdentifier": "open_pull_request" },
       { "sourceIdentifier": "open_pull_request", "targetIdentifier": "update_request_pr_submitted" },
       { "sourceIdentifier": "update_request_pr_submitted", "targetIdentifier": "notify_slack" }
     ]
   }

4. If you named your GitHub MCP connector something other than git_hub, update generate_implementation_plan.config.mcpServers[0].identifier to match, and update the tools list to match the tool names your connector actually exposes.

5. Update open_pull_request.config.source.repository to point at your own GitOps repository.

6. If you have Port's Slack app installed, update notify_slack.config.headers.Authorization with your own __SLACK_APP_BOT_TOKEN_<team_id> secret (see Send Slack messages for how to find it) and notify_slack.config.body.channel with your channel ID. Otherwise, delete the notify_slack node and its incoming connection.

7. Click Save to save the workflow.

Test the workflow

1. Go to the Self-service page in Port and find Request Cloud Resource.
2. Fill in the form: choose a resource_type, environment, and service, and optionally add additional_context.
3. Submit the form and go to the Workflow runs tab to follow the run.
4. Confirm that each node produces the expected output:
   • fetch_service_context returns the selected service's entity, and its variables compute a request_id, service_criticality, and service_title.
   • create_resource_request creates a new cloud_resource_request entity with status: In Progress.
   • generate_implementation_plan returns a structured response with implementation_plan and architecture.
   • open_pull_request opens a real pull request against your GitOps repository and returns its URL.
   • update_request_pr_submitted updates the request entity to status: Pending Approval, with pr_url, implementation_plan, and architecture populated.

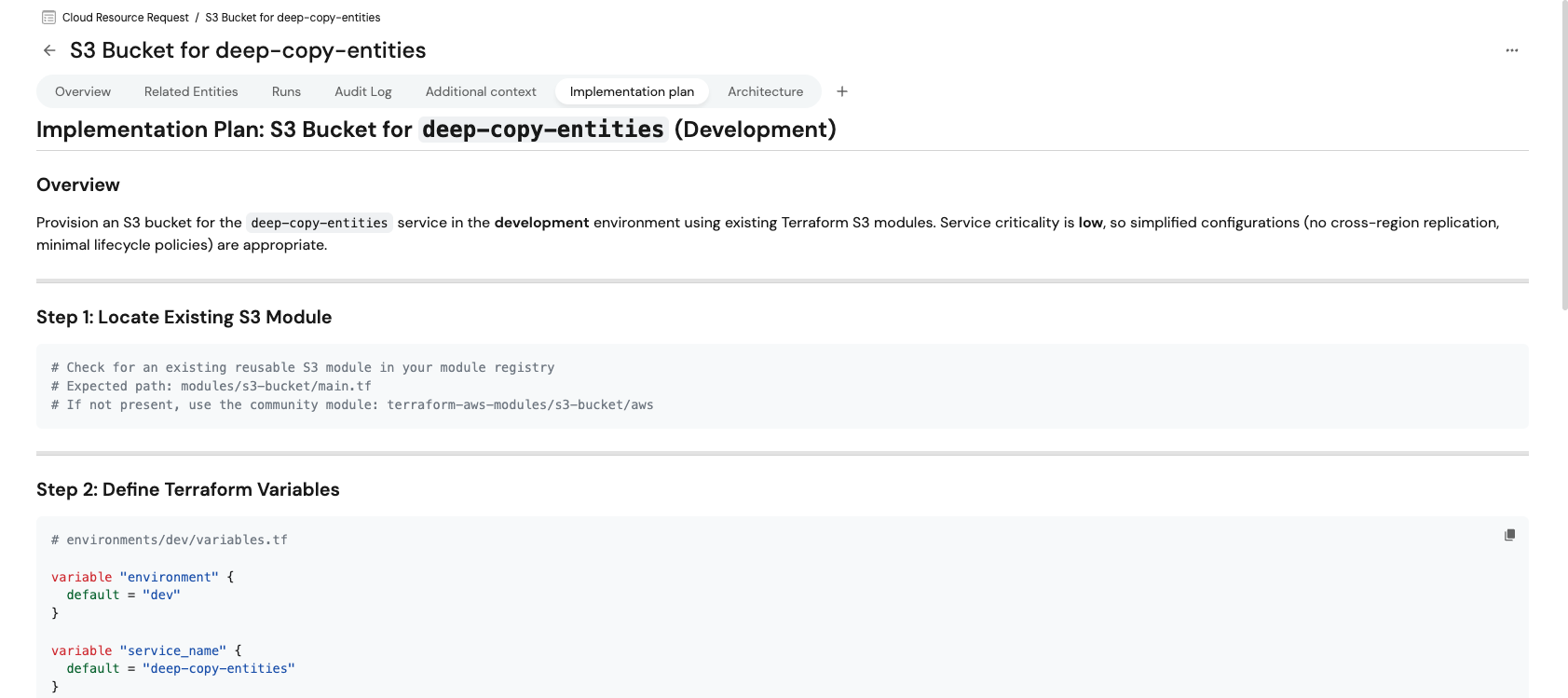

5. Open the pull request and confirm it reflects the implementation plan.
6. Merge (or close) the pull request as you normally would. The request stays at Pending Approval in Port until you either update it manually or wire up the automation described in Enhancements.

Enhancements

Once the basic workflow is running, you can extend it:

• Close the loop on merge. Add a second, event-triggered workflow that listens for the GitOps repository's pull request being merged or closed, and updates the matching cloud_resource_request entity to Approved or Rejected. Once you have that signal, it's also the natural place to create a cloudResource entity (see the public demo for an example) representing the now-real resource, linked back to the request.
• On-premise resources. Duplicate the AI node and add a condition node to branch on a cloud vs. on-premise resource type, and route on-premise requests to their own implementation plan prompt.
• Additional resource types. Extend the resource_type enum and adjust the AI prompt to cover more of your golden paths.
• Skills for the AI node. Attach skills to generate_implementation_plan so it follows your organization's specific "how-to" for each resource type.

Related guides

• Create cloud resources using IaC
• Send Slack messages using Port's Slack app and automations
