Build an OWASP Top 10 Scorecard
This guide demonstrates how to build an OWASP Top 10 security scorecard in Port using vulnerability data from Snyk.
The scorecard resides on the Repository blueprint and evaluates data sourced from the Snyk Target and Snyk Vulnerability blueprints to measure each repository’s security posture against the latest OWASP Top 10 categories.
Snyk Vulnerability– Represents individual vulnerabilities of various types.Snyk Target– Evaluated against 10 rules, each corresponding to an OWASP Top 10 category.Repository– The primary entity where the scorecard resides.
Prerequisites
- A Port account with the onboarding process completed.
- Port's GitHub app installed.
- Port's Snyk integration installed.
Set up data model
Update Snyk vulnerability blueprint
To accurately benchmark against the OWASP Top 10 for code, most static analysis tools support generating Common Weakness Enumeration (CWE) IDs. We will store the CWE value in a property called category.
If the property is not yet included in your Snyk Vulnerability blueprint, follow these steps to add it:
-
Navigate to the Data model page of your portal.
-
Click on the
Snyk Vulnerabilityblueprint. -
Click on the
...button in the top right corner, then click on the{...} Edit JSONbutton. -
Update the existing JSON by incorporating the following data in it, then click
Save.Snyk Vulnerability blueprint (click to expand)
{
"properties": {
"category": {
"type": "string",
"title": "Category"
}
}
} -
Click on the
Savebutton to save the changes.
Update Snyk mapping configuration
-
Head over to your Data sources page.
-
Under
Exporters, click on your Snyk integration. -
In the Mapping tab, edit the YAML in the bottom-left panel and add the following entry under the
vulnerabilitykind:Mapping configuration (click to expand)
resources:
- kind: vulnerability
port:
entity:
mappings:
cwe: .attributes.classes[0].id -
Click on the
Save & Resyncbutton to save the changes and resync the integration.
Update Snyk Target blueprint
With the addition of the CWE property to the Snyk Vulnerability blueprint, you can now classify vulnerabilities by CWE and align them with the OWASP Top 10 categories.
Update the Snyk Target blueprint to include 10 aggregation properties, one for each OWASP Top 10 code category, so issues can be grouped and reported by category.
To update the Snyk Target blueprint, follow these steps:
-
Navigate to the Data model page of your portal.
-
Click on the
Snyk Targetblueprint. -
Click on the
...button in the top right corner, then click on the{...} Edit JSONbutton. -
Update the aggregation properties to include the snippet JSON snippet below:
Snyk Target blueprint (click to expand)
{
"aggregationProperties": {
"a1_access_control_flaws": {
"title": "A1 Access Control Flaws",
"icon": "Shield",
"type": "number",
"description": "Check if repo is free of OWASP Top 10 A1 - Access Control Flaws",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-22",
"CWE-23",
"CWE-35",
"CWE-59",
"CWE-200",
"CWE-201",
"CWE-219",
"CWE-264",
"CWE-275",
"CWE-276",
"CWE-284",
"CWE-352",
"CWE-359"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a2_cryptographic_failures": {
"title": "A2 Cryptographic Failures",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 A2 Cryptographic Failures",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-259",
"CWE-261",
"CWE-296",
"CWE-310",
"CWE-319",
"CWE-321",
"CWE-322",
"CWE-323",
"CWE-324",
"CWE-325",
"CWE-326",
"CWE-327",
"CWE-328",
"CWE-329",
"CWE-330",
"CWE-331",
"CWE-335",
"CWE-336",
"CWE-337",
"CWE-338",
"CWE-340",
"CWE-347",
"CWE-523",
"CWE-720",
"CWE-757",
"CWE-759",
"CWE-760",
"CWE-780",
"CWE-818",
"CWE-916"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a3_injection": {
"title": "A3 Injection",
"icon": "Shield",
"type": "number",
"description": "Check if repo is free of OWASP Top 10 A3 - Injection flaws",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-20",
"CWE-74",
"CWE-75",
"CWE-77",
"CWE-78",
"CWE-79",
"CWE-80",
"CWE-83",
"CWE-87",
"CWE-88",
"CWE-89",
"CWE-90",
"CWE-91",
"CWE-93",
"CWE-94",
"CWE-95",
"CWE-96",
"CWE-97",
"CWE-98",
"CWE-99",
"CWE-100",
"CWE-113",
"CWE-116",
"CWE-138",
"CWE-184",
"CWE-470",
"CWE-471",
"CWE-564",
"CWE-610",
"CWE-643",
"CWE-644",
"CWE-652",
"CWE-917"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a4_insecure_design": {
"title": "A4 Insecure Design",
"icon": "Shield",
"type": "number",
"description": "OWASP top 10 A4 - Insecure design security weakness",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-73",
"CWE-183",
"CWE-209",
"CWE-213",
"CWE-235",
"CWE-256",
"CWE-257",
"CWE-266",
"CWE-269",
"CWE-280",
"CWE-311",
"CWE-312",
"CWE-313",
"CWE-316",
"CWE-419",
"CWE-430",
"CWE-434",
"CWE-444",
"CWE-451",
"CWE-472",
"CWE-501",
"CWE-522",
"CWE-525",
"CWE-539",
"CWE-579",
"CWE-598",
"CWE-602",
"CWE-642",
"CWE-646",
"CWE-650",
"CWE-653",
"CWE-656",
"CWE-657",
"CWE-799",
"CWE-807",
"CWE-840",
"CWE-841",
"CWE-927",
"CWE-1021",
"CWE-1173"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a5_security_misconfigurations": {
"title": "A5 Security Misconfigurations",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 - A5 Security misconfigurations",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-2",
"CWE-11",
"CWE-13",
"CWE-15",
"CWE-16",
"CWE-260",
"CWE-315",
"CWE-520",
"CWE-526",
"CWE-537",
"CWE-541",
"CWE-547",
"CWE-611",
"CWE-614",
"CWE-756",
"CWE-776",
"CWE-942",
"CWE-1004",
"CWE-1032",
"CWE-1174"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a6_vulnerable_components": {
"title": "A6 Vulnerable components",
"icon": "Shield",
"type": "number",
"description": "OWASP A6 - Vulnerable and outdated components in use.",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-937",
"CWE-1035",
"CWE-1104"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a7_authentication_failures": {
"title": "A7 Authentication Failures",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 - Identification & Authentication Failures",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-255",
"CWE-259",
"CWE-287",
"CWE-288",
"CWE-290",
"CWE-294",
"CWE-295",
"CWE-297",
"CWE-300",
"CWE-302",
"CWE-304",
"CWE-306",
"CWE-307",
"CWE-346",
"CWE-384",
"CWE-521",
"CWE-613",
"CWE-620",
"CWE-640",
"CWE-798",
"CWE-940",
"CWE-1216"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a8_integrity_failures": {
"title": "A8 Integrity Failures",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 - A8 - Software & Integrity failures",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-345",
"CWE-353",
"CWE-426",
"CWE-494",
"CWE-502",
"CWE-565",
"CWE-784",
"CWE-829",
"CWE-830",
"CWE-915"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a9_logging": {
"title": "A9 Logging",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 - A9 Security logging & Monitoring",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-117",
"CWE-223",
"CWE-532",
"CWE-778"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
},
"a10_ssrf": {
"title": "A10 SSRF",
"icon": "Shield",
"type": "number",
"description": "OWASP Top 10 - A10 Server side request forgery",
"target": "snykVulnerability",
"query": {
"combinator": "and",
"rules": [
{
"property": "type",
"operator": "=",
"value": "code"
},
{
"property": "status",
"operator": "=",
"value": "open"
},
{
"property": "category",
"operator": "in",
"value": [
"CWE-918"
]
}
]
},
"calculationSpec": {
"func": "count",
"calculationBy": "entities"
}
}
}
} -
Click on
Saveto update the blueprint.
Add mirror properties to the Repository blueprint
The Snyk Target blueprint should have a defined relation with the GitHub Repository blueprint to be able to mirror properties from the Snyk Target blueprint to the GitHub Repository blueprint.
If your current model does not include a relation from the Repository blueprint to the Snyk Target blueprint, add it.
The next step is to add the OWASP identifiers as mirrored properties to the GitHub Repository blueprint, and update the GitHub mapping configuration so that each GitHub Repository is automatically linked to its corresponding Snyk Target.
This link is what allows the mirrored OWASP properties to pull their values from the related Snyk data.
Follow the steps below to add the OWASP mirror properties to the GitHub Repository blueprint:
-
Navigate to the Data model page of your portal.
-
Click on the
GitHub Repositoryblueprint. -
Click on the
...button in the top right corner, then click on the{...} Edit JSONbutton. -
Update the mirrorProperties to include the snippet below:
Add mirror properties to GitHub Repository blueprint (click to expand)
{
"mirrorProperties": {
"a1_access_control_flaws": {
"title": "A1 Access Control Flaws",
"path": "snyk_target.a1_access_control_flaws"
},
"a2_cryptographic_failures": {
"title": "A2 Cryptographic Failures",
"path": "snyk_target.a2_cryptographic_failures"
},
"a3_injection": {
"title": "A3 Injection",
"path": "snyk_target.a3_injection"
},
"a4_insecure_design": {
"title": "A4 Insecure Design",
"path": "snyk_target.a4_insecure_design"
},
"a5_security_misconfigurations": {
"title": "A5 Security Misconfigurations",
"path": "snyk_target.a5_security_misconfigurations"
},
"a6_vulnerable_components": {
"title": "A6 Vulnerable Components",
"path": "snyk_target.a6_vulnerable_components"
},
"a7_authentication_failures": {
"title": "A7 Authentication Failures",
"path": "snyk_target.a7_authentication_failures"
},
"a8_integrity_failures": {
"title": "A8 Integrity Failures",
"path": "snyk_target.a8_integrity_failures"
},
"a9_logging": {
"title": "A9 Logging",
"path": "snyk_target.a9_logging"
},
"a10_ssrf": {
"title": "A10 SSRF",
"path": "snyk_target.a10_ssrf"
}
}
} -
Click on
Saveto update the blueprint.
Update GitHub mapping configuration
-
Head over to your Data sources page.
-
Under
Exporters, click on your desired GitHub organization. -
In the Mapping tab, edit the YAML in the bottom-left panel and add the following entry under the
repositorykind:Mapping configuration (click to expand)
- kind: repository
selector:
query: 'true'
port:
entity:
mappings:
identifier: .full_name
blueprint: '"githubRepository"'
relations:
snyk_target:
combinator: '"and"'
rules:
- property: '"$title"'
operator: '"="'
value: .full_name -
Click on the
Save & Resyncbutton to save the changes and resync the integration.
Set up the scorecard

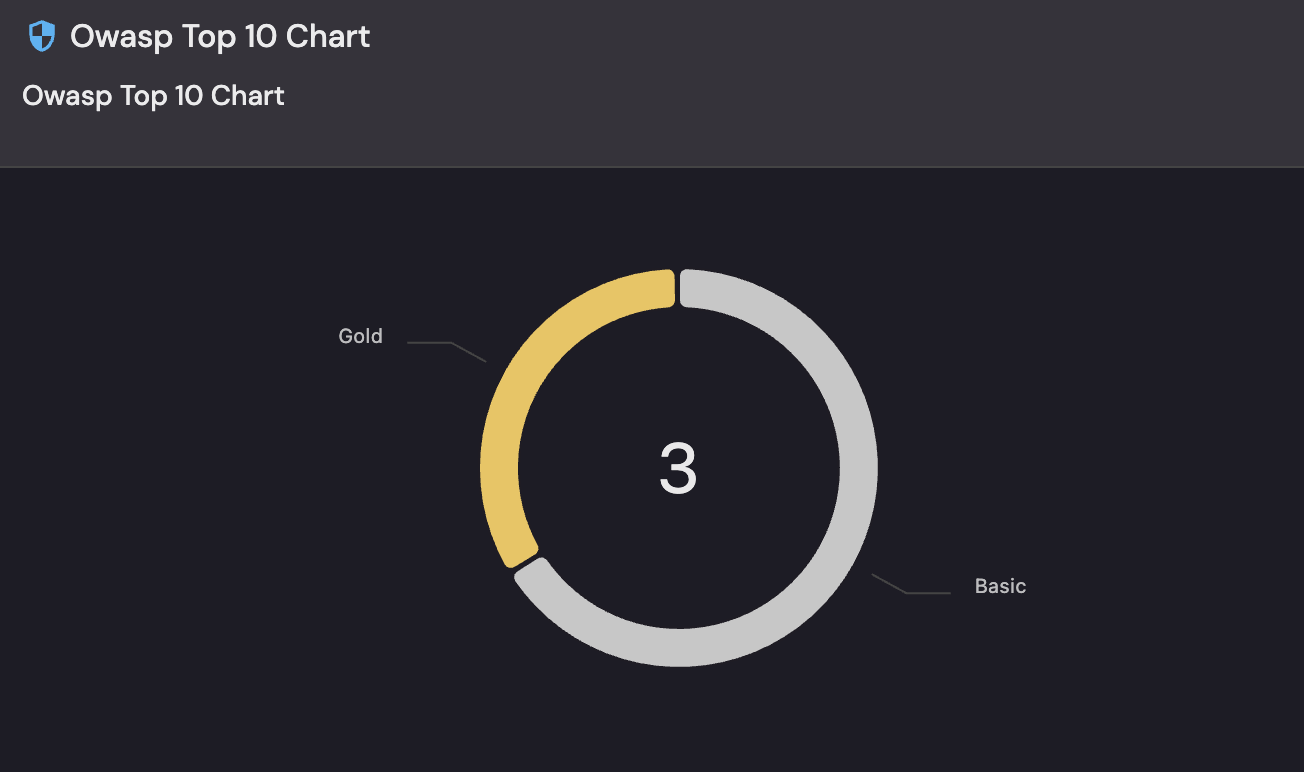

The final step is to create a scorecard that reflects the security maturity of a Respository against the OWASP Top 10 categories.
To create an OWASP Top 10 Scorecard, follow these steps:
-
Go to your Data model page.
-
Search for the GitHub Repository blueprint and select it.
-
Click on the
Scorecardstab. -
Click on
+ New Scorecardto create a new scorecard. -
Add this JSON configuration and click
Save.OWASP Top 10 Scorecard (click to expand)
{
"identifier": "OWASPScoreCard",
"title": "OWASP Top 10",
"levels": [
{
"color": "paleBlue",
"title": "Basic"
},
{
"color": "bronze",
"title": "Bronze"
},
{
"color": "silver",
"title": "Silver"
},
{
"color": "gold",
"title": "Gold"
}
],
"rules": [
{
"identifier": "has_owasp_a6",
"title": "A06 Vulnerable Components",
"level": "Gold",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a6_vulnerable_components"
}
]
}
},
{
"identifier": "has_owasp_a1",
"title": "A01 Broken Access Control",
"level": "Bronze",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a1_access_control_flaws"
}
]
}
},
{
"identifier": "has_owasp_a4",
"title": "A04 Insecure Design",
"level": "Gold",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a4_insecure_design"
}
]
}
},
{
"identifier": "has_owasp_a8",
"title": "A08 Integrity Failures",
"level": "Silver",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a8_integrity_failures"
}
]
}
},
{
"identifier": "has_owasp_a7",
"title": "A07 Authentication Failures",
"level": "Bronze",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a7_authentication_failures"
}
]
}
},
{
"identifier": "has_owasp_a3",
"title": "A03 Injection",
"level": "Bronze",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a3_injection"
}
]
}
},
{
"identifier": "has_owasp_a5",
"title": "A05 Security Misconfigurations",
"level": "Gold",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a5_security_misconfigurations"
}
]
}
},
{
"identifier": "has_owasp_a2",
"title": "A02 Cryptographic Failures",
"level": "Silver",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a2_cryptographic_failures"
}
]
}
},
{
"identifier": "has_owasp_a9",
"title": "A09 Logging ",
"level": "Silver",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a9_logging"
}
]
}
},
{
"identifier": "has_owasp_a10",
"title": "A10 SSRF",
"level": "Bronze",
"query": {
"combinator": "and",
"conditions": [
{
"value": 0,
"operator": "=",
"property": "a10_ssrf"
}
]
}
}
]
} -
Click on
Saveto create the scorecard.
Troubleshooting
Some common issues you may encounter during the implementation:
- Invalid token: The
SNYK_TOKENdoes not have privileges or otherwise has been revoked. Ensure that the token is valid and has required permissions so that issues and targets across the Snyk Group can be queried for. - OWASP Top 10 2021:
CWEfield is key to accurately measuring and benchmarking against OWASP Top 10. The current measurement rules are based on the latest OWASP Top 10 i.e. OWASP Top 10 2021 as of this write-up. Discrepancy may arise if following this example without consideration for reviewing against latest OWASP Top 10 issues and the associated CWEs. - Missing property data: This can happen when
CWEproperty has been defined on theSnyk Vulnerabilityblueprint, however a sync has not yet occurred.
Next steps
Consider the following as next steps:
- Quality standards:
- Eliminate chaos and promote
minimum viable security productwith tiering. - Establish a customized standard that best meets your organization's culture by classifying the OWASP Top 10.
- Eliminate chaos and promote
- Self-service actions:
- Automatically assign Owners and create a self-service action that triggers an alert to repository owners when tier standards are unmet.
- Portal Initiative:
- Self-service action: Create a self-service action to improve OWASP Tiers for specific repositories.
- Create an initiative within Port to reduce a specific security weakness or promote a specific tier as a standard operating procedure.
