Monitor integrations

This guide will help you set up monitoring and management capabilities for your Port Ocean integrations.

By implementing this monitoring setup, you'll be able to track:

• Overall integration sync status and timing
• Detailed metrics per integration kind
• Object counts at various stages (raw, transformed, ingested)
• Sync duration and performance metrics

Prerequisites

Before you begin, make sure you have:

• Self-hosted Ocean integrations installed
• Port Ocean version v0.22.0 or later

Common use cases

• Monitor the health and performance of your integrations
• Track sync status and timing across different integration kinds
• Identify potential issues in the extract-transform-load (ETL) pipeline
• Measure the efficiency of your data ingestion process

Data model setup

Use the following two blueprints to structure your integration data in Port:

The Integration blueprint tracks overall resync status, duration, and timing.

Integration Blueprint

{
  "identifier": "integration",
  "title": "Integration",
  "icon": "Ocean",
  "schema": {
    "properties": {
      "last_resync_completion_status": {
        "type": "string",
        "title": "Last Resync Completion Status",
        "icon": "Reset",
        "enum": [
          "SUCCESS",
          "FAILED"
        ],
        "enumColors": {
          "SUCCESS": "green",
          "FAILED": "red"
        }
      },
      "last_resync_duration": {
        "type": "number",
        "title": "Last Resync Duration Seconds",
        "icon": "Clock"
      },
      "last_resync_at": {
        "icon": "Updates",
        "type": "string",
        "title": "Last Resync At",
        "format": "date-time"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {}
}

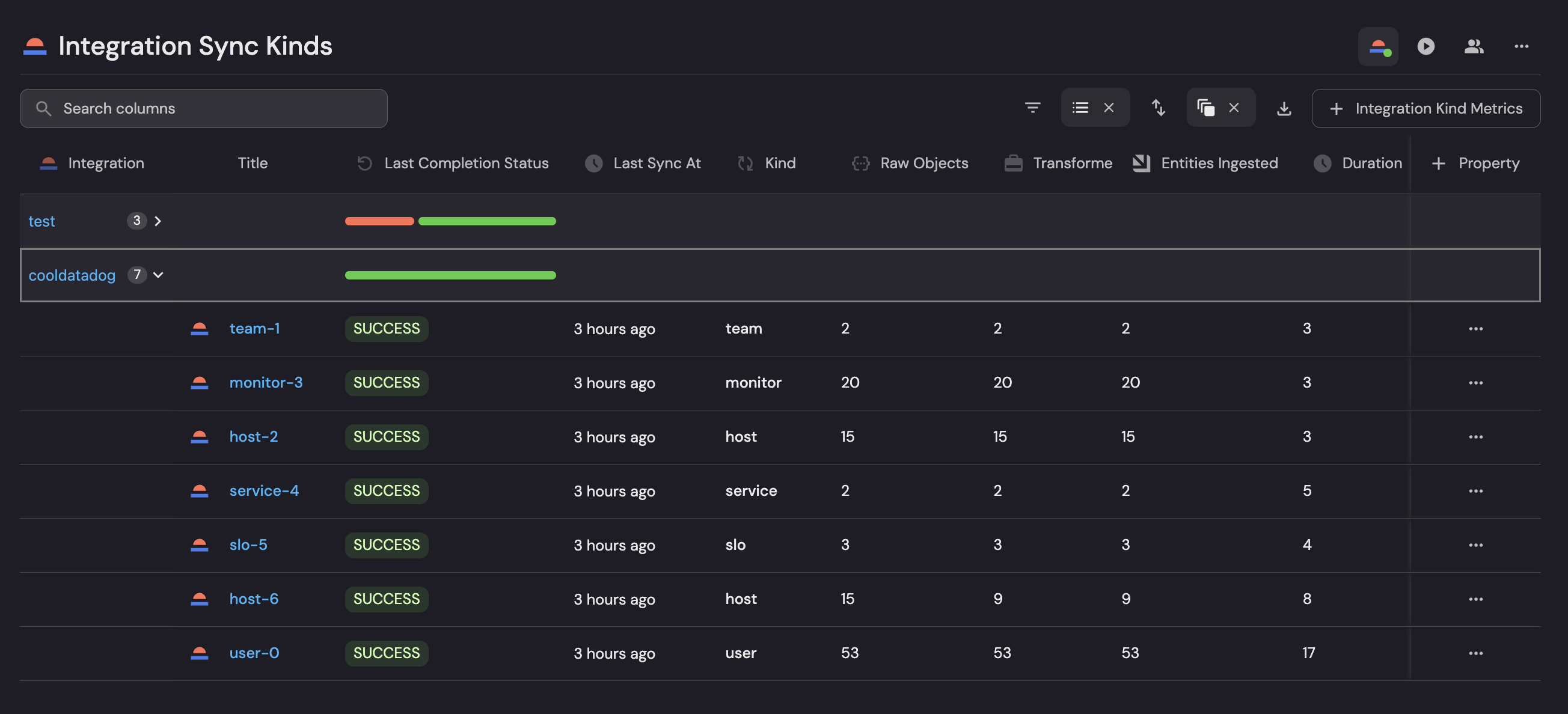

The Integration Kind Metrics blueprint tracks detailed metrics for specific integration kinds, including raw, transformed, and ingested objects.

Integration Kind Metrics Blueprint

{
  "identifier": "integration_kind_metrics",
  "description": "Metrics on integration sync kind",
  "title": "Integration Kind Metrics",
  "icon": "Ocean",
  "schema": {
    "properties": {
      "kind": {
        "icon": "Sync",
        "type": "string",
        "title": "Kind"
      },
      "raw_objects": {
        "icon": "JsonEditor",
        "type": "number",
        "title": "Raw Objects"
      },
      "transformed_objects": {
        "icon": "Travel",
        "type": "number",
        "title": "Transformed Objects"
      },
      "entities_ingested": {
        "icon": "Port",
        "type": "number",
        "title": "Entities Ingested"
      },
      "duration": {
        "icon": "Clock",
        "type": "number",
        "title": "Duration"
      },
      "last_completion_status": {
        "type": "string",
        "title": "Last Completion Status",
        "icon": "Reset",
        "enum": [
          "SUCCESS",
          "FAILED"
        ],
        "enumColors": {
          "SUCCESS": "green",
          "FAILED": "red"
        }
      },
      "last_sync_at": {
        "type": "string",
        "title": "Last Sync At",
        "icon": "Clock",
        "format": "date-time"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {
    "integration": {
      "title": "Integration",
      "target": "integration",
      "required": false,
      "many": false
    }
  }
}

Webhook setup

1. Go to the data sources page of your portal.
2. Click on + Data source, and choose the Webhook type.
3. Click on Custom integration and create a new webhook.
4. Copy and store the generated webhook URL (should be in a format like https://ingest.getport.io/abc123).

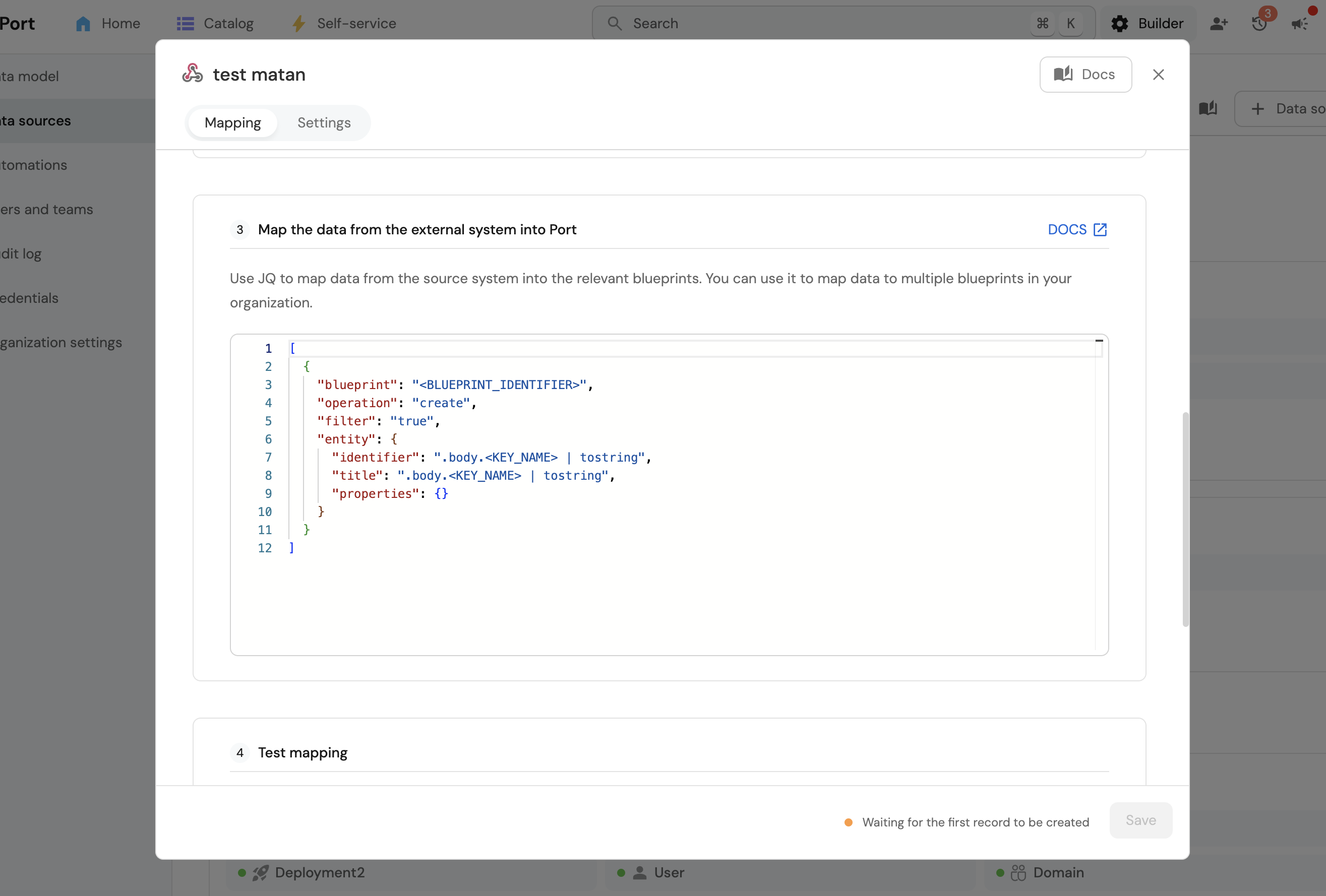

5. Add the mappings below in the relevant section on the webhook configuration (see screenshot below).

For Integration Kind Metrics:

Integration Kind Metrics Webhook Mapping

{
  "blueprint": "integration_kind_metrics",
  "operation": "create",
  "filter": ".body.kind_identifier != '__runtime__'",
  "entity": {
    "identifier": ".body.kind_identifier",
    "title": ".body.kind_identifier",
    "properties": {
      "kind": ".body.kind",
      "duration": ".body.metrics.phase.resync.duration_seconds|round",
      "raw_objects": ".body.metrics.phase.extract.object_count",
      "transformed_objects": ".body.metrics.phase.transform.object_count",
      "entities_ingested": ".body.metrics.phase.load.object_count",
      "last_completion_status": "if .body.metrics.phase.resync.success == 1 then \"SUCCESS\" else \"FAILED\" end",
      "last_sync_at": "now | todateiso8601"
    },
    "relations": {
      "integration": ".body.integration_type + \"-\" + .body.integration_identifier"
    }
  }
}

For Integration Runtime Status:

Integration Runtime Status Webhook Mapping

{
  "blueprint": "integration",
  "operation": "create",
  "filter": ".body.kind_identifier == '__runtime__'",
  "entity": {
    "identifier": ".body.integration_type + \"-\" + .body.integration_identifier",
    "title": ".body.integration_identifier",
    "properties": {
      "last_resync_duration": ".body.metrics.phase.resync.duration_seconds|round",
      "last_resync_completion_status": "if .body.metrics.phase.resync.success == 1 then \"SUCCESS\" else \"FAILED\" end",
      "last_resync_at": "now | todateiso8601"
    }
  }
}

Ensure the mappings are correctly added to handle both cases distinctly.

Configure metrics collection

Ocean Version requirement

Make sure you've updated the port-ocean version to use v0.22.0 or later.

To activate metrics collection, pass the following parameters when configuring your integration:

OCEAN__METRICS__ENABLED=true
OCEAN__METRICS__WEBHOOK_URL=<THE GENERATED WEBHOOK URL>

Replace <THE GENERATED WEBHOOK URL> with the URL you generated in Step 2.

tip

Remember to repeat this step for each integration you want to monitor.

Create a monitoring dashboard

Now you can set up a dashboard to visualize your integration metrics:

1. Navigate to your software catalog.
2. Click + New, select New dashboard, and create a new dashboard.
3. Add a Table widget, and select the integration blueprint.
4. Add a Line chart widget, select the integration blueprint, the integration you want to monitor, and the last resync duration property.
5. Add Number chart to show the raw, transformed, and ingested counts as either aggregated values or for a specific integration.

Test your monitoring

After completing these steps:

1. Trigger your integration sync
2. Check Port to verify the status updates and metrics
3. Review your dashboard to ensure all widgets are populated with data
