Assign teams to monitored entities

This guide explains how to assign team ownership to Dynatrace entities, allowing you to easily identify which team is responsible for each monitored entity.

Common use cases

• Quickly determine which team owns a specific entity and contact them when needed.

Prerequisites

This guide assumes the following:

• You have a Port account and you have completed the onboarding process.
• You have installed Port's Dynatrace integration.
• You have entities from cloud providers configured on Dynatrace. See Dynatrace documentation for this.

Set up data model

To establish team ownership, we will modify the Dynatrace Entity blueprint by adding an owned_by relation.
Follow the steps below to update the Dynatrace Entity blueprint:

1. Go to the data model page of your portal, and locate theDynatrace Entity blueprint.

2. Hover over it, click on the ... button on the right, and select "Edit JSON".

3. Add the owned_by relation as shown below, then click Save:

   Team relation (Click to expand)

    "relations": {
      "owned_by": {
        "title": "Owned By",
        "target": "dynatraceTeam",
        "required": false,
        "many": true
      }
    }

Creating the mapping configuration

Now that the relationship between teams and monitored entities is defined, the next step is to assign the appropriate team to each Dynatrace Entity. This can be done by adding mapping logic based on your ingested resources. Dynatrace supports multiple methods for assigning team ownership, including Kubernetes labels and annotations, host metadata, environment variables, and tags.

To set up the mapping, navigate to the Dynatrace integration in the Data Sources page and add the following mapping based on your preferred method:

Dynatrace ownership configuration using Kubernetes labels and annotations

deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
resources:
  - kind: entity
    selector:
      query: 'true'
      entityTypes:
        - `CLOUD_APPLICATION`
        - `KUBERNETES_SERVICE`
        - `KUBERNETES_CLUSTER`
        # Add more entity types
      entityFields: firstSeenTms,lastSeenTms,tags,properties,managementZones,fromRelationships,toRelationships
    port:
      entity:
        mappings:
          identifier: .displayName | gsub(" "; "-")
          title: .displayName
          blueprint: '"dynatraceEntity"'
          properties:
            firstSeen: .firstSeenTms / 1000 | todate
            lastSeen: .lastSeenTms / 1000 | todate
            type: .type
            tags: .tags[].stringRepresentation
          relations:
            owned_by: .properties.kubernetesLabels | to_entries | map(select(.key == "dt.ower" or .key == "owner") | .value) | if length == 0 then null else . end

ownership keys

In this example, the dt.owner and owner keys from Kubernetes resource labels are used to define ownership. You should use the keys configured in your Dynatrace environment. For more details on setting up ownership keys, refer to the Dynatrace documentation

Dynatrace ownership configuration using tags

deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
resources:
  - kind: entity
    selector:
      query: 'true'
      entityTypes:
        - `cloud:gcp:k8s_cluster`
        - `cloud:gcp:pubsub_subscription`
        - `cloud:gcp:pubsub_topic`
        - `cloud:gcp:gcs_bucket`
        - `cloud:gcp:gae_app`
        - `cloud:aws:acmprivateca`
        - `cloud:aws:api_gateway`
        - `cloud:aws:app_runner`
        - `cloud:aws:appstream`
        - `cloud:aws:appsync`
        - `cloud:azure:apimanagement:service`
        - `cloud:azure:app:containerapps`
        - `cloud:azure:app:managedenvironments`
        - `cloud:azure:appconfiguration:configurationstores`
        - `cloud:azure:appplatform:spring`
        # see below section for more entity types
    port:
      entity:
        mappings:
          identifier: .displayName | gsub(" "; "-")
          title: .displayName
          blueprint: '"dynatraceEntity"'
          properties:
            firstSeen: .firstSeenTms / 1000 | todate
            lastSeen: .lastSeenTms / 1000 | todate
            type: .type
            tags: .tags[] | map(.stringRepresentation)
          relations:
            owned_by: .tags | map(select(.key == "dt.owner" or .key == "owner") | .value) | if length == 0 then null else . end

ownership keys

In this example, the dt.owner and owner keys from the tags are used to define ownership. You should use the keys configured in your Dynatrace environment. For more details on setting up ownership keys, refer to the Dynatrace documentation

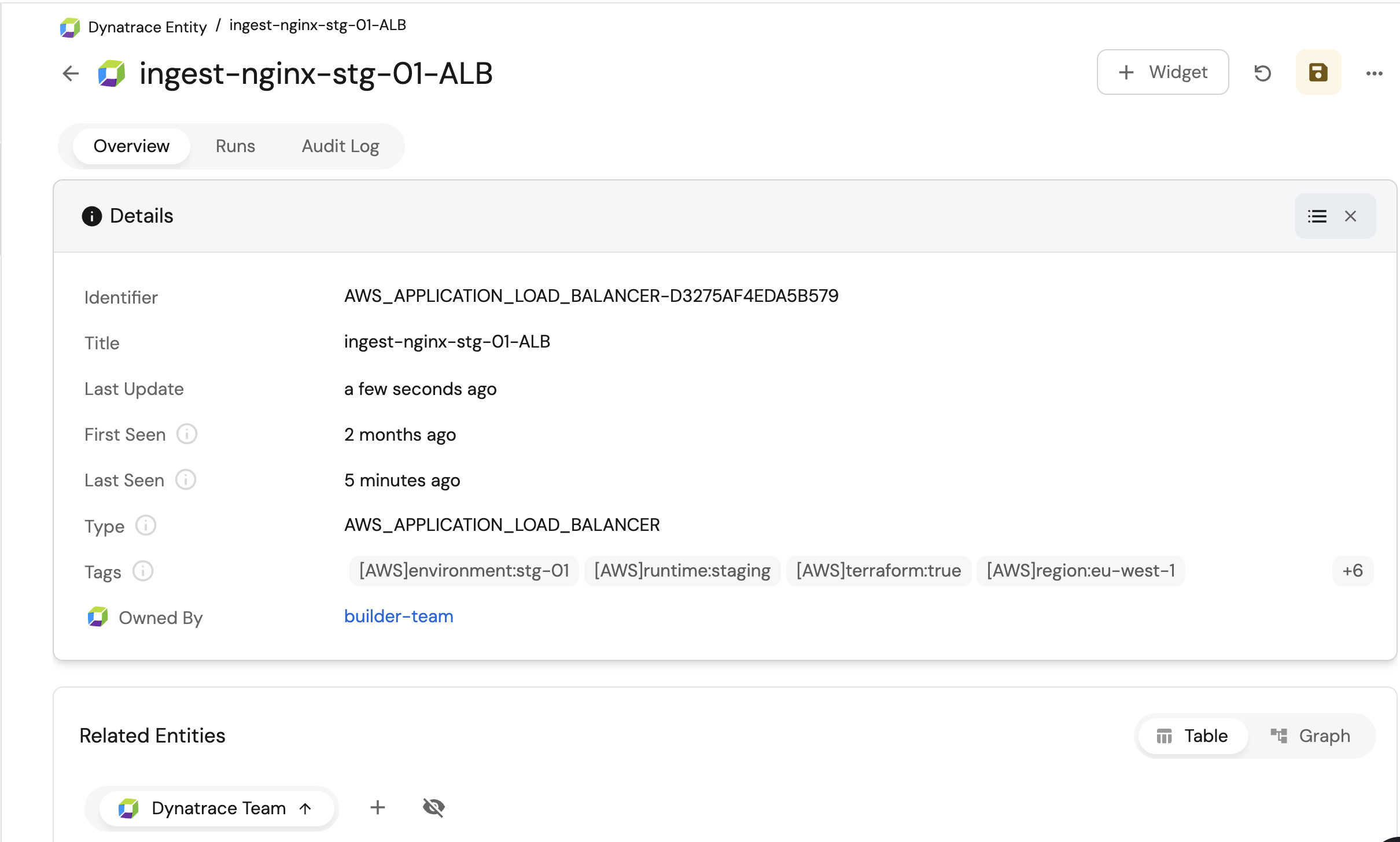

Next, click on the resync button and watch your Dynatrace entities being mapped to the teams as shown below in this example:
