Port's Sentry integration allows you to model Sentry resources in your software catalog and ingest data into them.

Overview​

This integration allows you to:

  • Map and organize your desired Sentry resources and their metadata in Port (see supported resources below).
  • Watch for Sentry object changes (create/update/delete) in real-time, and automatically apply the changes to your entities in Port.

Supported resources​

The resources that can be ingested from Sentry into Port are listed below. It is possible to reference any field that appears in the API responses linked below in the mapping configuration.

Setup​

Choose one of the following installation methods:
Not sure which method is right for your use case? Check the available installation methods.

  1. Go to the Sentry data source page in your portal.

  2. Under Select your installation method, choose Hosted by Port.

  3. configure the custom settings and advanced configuration as you wish (see below for details).

Self-hosted installation
Alternatively, you can install the integration using the Self-hosted method to update Port in real time using webhooks.

Custom settings

Each integration has its own tool-specific configuration that you provide during setup:

Advanced configuration

In Port, you can configure the following settings for the integration:

  • Live event support:

    This integration supports live events, allowing real-time updates to your software catalog without waiting for the next scheduled sync.

    Supported live event triggers (click to expand)

    Issue & Issue Tag:

    • created
    • resolved
    • ignored
    • unresolved
    • assigned

  • Actions processing enabled:
    When enabled, Port will automatically process actions for this integration.

  • Create default resources:
    When enabled, Port will automatically create default blueprints and mapping configurations for this integration.

Port secrets

Some integration settings require sensitive pieces of data, such as tokens. For these settings, Port secrets will be used, ensuring that your sensitive data is encrypted and secure.

When filling in such a setting, its value will be obscured (shown as ••••••••). For each such setting, Port will automatically create a secret in your organization.

To see all secrets in your organization, follow these steps.

Limitations

  • The maximum time for a full sync to run is based on the configured resync interval. For very large amounts of data where a resync operation is expected to take longer, please use a longer interval.

Port source IP addresses

When using this installation method, Port will make outbound calls to your 3rd-party applications from static IP addresses. You may need to add these addresses to your allowlist, in order to allow Port to interact with the integrated service:

  • Europe (EU): 54.73.167.226, 63.33.143.237, 54.76.185.219
  • United States (US): 3.234.37.33, 54.225.172.136, 3.225.234.99

Live events​

In order for the Sentry integration to update the data in Port on real-time changes in Sentry, you need to create a webhook in Sentry.

Create a webhook in Sentry​

  1. Log in to Sentry with your organization's credentials.
  2. Click the gear icon (Setting) at the left sidebar of the page.
  3. Choose Developer Settings.
  4. At the upper corner of this page, click on Create New Integration.
  5. Sentry provides two types of integrations: Internal and Public. For the purpose of this guide, choose Internal Integration and click on the Next button.
  6. Input the following details:
    • Name - use a meaningful name such as "Port Webhook".
    • Webhook URL - enter the appropriate URL.
    • Overview - enter a description for the webhook. -Permissions - Grant your webhook Read permissions for the Issue & Event category.
    1. Webhooks - Under this section, enable the issues checkbox to allow Sentry to report issue events to Port.
  7. Click Save Changes at the bottom of the page.

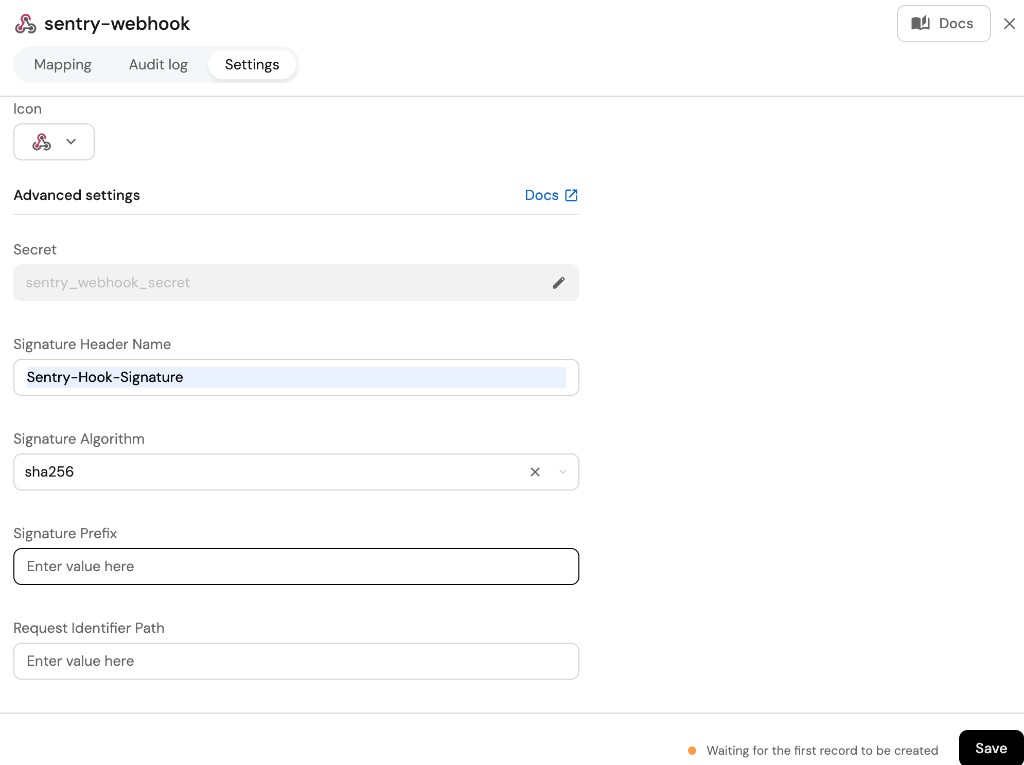

Update the webhook secret in your integration configuration

Now that the webhook is created, you can take the secret value generated by Sentry and use it to update the sentryWebhookSecret in your integration configuration. For more details on setting up internal integrations in Sentry, see the Sentry documentation.

Webhook URL configuration​

Depending on your installation method, the webhook URL will be different:

  • Hosted by Port: The webhook URL is provided in the Port UI after you created the integration.
  • Self-hosted: The webhook URL is the address where your integration instance is reachable, followed by /ingress. For example: https://sentry-integration.yourdomain.com/ingress.
  • Alternative installation via webhook: The webhook URL is the url key you received after creating the webhook configuration in Port.

Configuration​

Port integrations use a YAML mapping block to ingest data from the third-party api into Port.

The mapping makes use of the JQ JSON processor to select, modify, concatenate, transform and perform other operations on existing fields and values from the integration API.

Default mapping configuration​

This is the default mapping configuration for this integration:

Default mapping configuration (click to expand)
deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
resources:
- kind: user
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .email
        title: .user.name
        blueprint: '"sentryUser"'
        properties:
          username: .user.username
          isActive: .user.isActive
          dateJoined: .user.dateJoined
          lastLogin: .user.lastLogin
          orgRole: .orgRole
          inviteStatus: .inviteStatus
- kind: user
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .email
        blueprint: '"_user"'
        relations:
          sentry_user: .email
- kind: project-tag
  selector:
    query: 'true'
    tag: environment
  port:
    entity:
      mappings:
        identifier: .slug + "-" + .__tags.name
        title: .name + "-" + .__tags.name
        blueprint: '"sentryProjectEnvironment"'
        properties:
          dateCreated: .dateCreated
          platform: .platform
          status: .status
          link: .organization.links.organizationUrl + "/projects/" + .name
- kind: issue-tag
  selector:
    query: 'true'
    tag: environment
  port:
    itemsToParse: .__tags
    entity:
      mappings:
        identifier: .id + "-" + .item.name
        title: .title + " -" + " " + .item.name
        blueprint: '"sentryIssue"'
        properties:
          link: .permalink + "?environment=" + .item.name
          status: .status
          isUnhandled: .isUnhandled
        relations:
          projectEnvironment: (.project.slug as $slug | .item | "\($slug)-\(.name)")
          assignee:
            combinator: '"and"'
            rules:
            - operator: '"="'
              property: '"$identifier"'
              value: .assignedTo.email
- kind: team
  selector:
    query: 'true'
    includeMembers: true
  port:
    entity:
      mappings:
        identifier: .slug
        title: .name
        blueprint: '"sentryTeam"'
        properties:
          dateCreated: .dateCreated
          memberCount: .memberCount
          roles: .teamRole
          projects: .projects | map (.slug)
        relations:
          members: if .__members != null then .__members | map(.user.email) | map(select(. != null)) else [] end

Monitoring and sync status​

To learn more about how to monitor and check the sync status of your integration, see the relevant documentation.

Examples​

Examples of blueprints and the relevant integration configurations:

User​

User blueprint (click to expand)
{
  "identifier": "sentryUser",
  "description": "This blueprint represents a Sentry user in our software catalog.",
  "title": "Sentry User",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "username": {
        "type": "string",
        "title": "Username"
      },
      "isActive": {
        "type": "boolean",
        "title": "Is Active"
      },
      "dateJoined": {
        "type": "string",
        "format": "date-time",
        "title": "Date Joined"
      },
      "lastLogin": {
        "type": "string",
        "format": "date-time",
        "title": "Last Login"
      },
      "orgRole": {
        "icon": "DefaultProperty",
        "title": "Organization Role",
        "type": "string",
        "enum": [
          "member",
          "admin",
          "owner",
          "manager",
          "biling"
        ],
        "enumColors": {
          "member": "pink",
          "admin": "green",
          "owner": "green",
          "manager": "yellow",
          "biling": "lightGray"
        }
      },
      "inviteStatus": {
        "type": "string",
        "title": "Invite Status",
        "icon": "DefaultProperty"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {}
}
Integration configuration (click to expand)
createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: user
    selector:
      query: 'true'
    port:
      entity:
        mappings:
          identifier: .email
          title: .user.name
          blueprint: '"sentryUser"'
          properties:
            username: .user.username
            isActive: .user.isActive
            dateJoined: .user.dateJoined
            lastLogin: .user.lastLogin
            orgRole: .orgRole
            inviteStatus: .inviteStatus

Team​

Team blueprint (click to expand)
{
  "identifier": "sentryTeam",
  "description": "This blueprint represents an Sentry team in our software catalog",
  "title": "Sentry Team",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "dateCreated": {
        "type": "string",
        "title": "Date Created",
        "format": "date-time"
      },
      "memberCount": {
        "type": "number",
        "title": "Number of Members"
      },
      "roles": {
        "type": "string",
        "title": "Roles"
      },
      "projects": {
        "items": {
          "type": "string"
        },
        "type": "array",
        "title": "Projects"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {
    "members": {
      "title": "Members",
      "target": "sentryUser",
      "required": false,
      "many": true
    }
  }
}
Integration configuration (click to expand)
Enable Team Members

The includeMembers flag is used to decide enrich the teams response with details about the members of the team. To turn this feature off, set it to false.

createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: team
    selector:
      query: 'true'
      includeMembers: true
    port:
      entity:
        mappings:
          identifier: .slug
          title: .name
          blueprint: '"sentryTeam"'
          properties:
            dateCreated: .dateCreated
            memberCount: .memberCount
            roles: .teamRole
            projects: .projects | map (.slug)
          relations:
            members: if .__members != null then .__members | map(.user.email) | map(select(. != null)) else [] end

Project​

Project blueprint (click to expand)
{
  "identifier": "sentryProject",
  "title": "Sentry Project",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "dateCreated": {
        "title": "Date Created",
        "type": "string",
        "format": "date-time"
      },
      "platform": {
        "type": "string",
        "title": "Platform"
      },
      "status": {
        "title": "Status",
        "type": "string",
        "enum": [
          "active",
          "disabled",
          "pending_deletion",
          "deletion_in_progress"
        ]
      },
      "link": {
        "title": "Link",
        "type": "string",
        "format": "url"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {}
}
Integration configuration (click to expand)
createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: project
    selector:
      query: "true"
    port:
      entity:
        mappings:
          identifier: .slug
          title: .name
          blueprint: '"sentryProject"'
          properties:
            dateCreated: .dateCreated
            platform: .platform
            status: .status
            link: .organization.links.organizationUrl + "/projects/" + .name

Issue​

Issue blueprint (click to expand)
{
  "identifier": "sentryIssue",
  "title": "Sentry Issue",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "link": {
        "title": "Link",
        "type": "string",
        "format": "url"
      },
      "status": {
        "title": "Status",
        "type": "string",
        "enum": [
          "resolved",
          "unresolved",
          "ignored",
          "reprocessing"
        ],
        "enumColors": {
          "resolved": "green",
          "unresolved": "red",
          "ignored": "lightGray",
          "reprocessing": "yellow"
        }
      },
      "isUnhandled": {
        "title": "isUnhandled",
        "type": "boolean"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {
    "projectEnvironment": {
      "title": "Sentry Project",
      "target": "sentryProject",
      "required": false,
      "many": true
    },
    "assignedTo": {
      "title": "Assigned To",
      "target": "sentryUser",
      "required": false,
      "many": false
    }
  }
}
Integration configuration (click to expand)
createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: issue
      selector:
        query: "true"
      port:
        entity:
          mappings:
            identifier: ".id"
            title: ".title"
            blueprint: '"sentryIssue"'
            properties:
              link: ".permalink"
              status: ".status"
              isUnhandled: ".isUnhandled"
            relations:
              projectEnvironment: ".project.slug"
              assignedTo: .assignedTo.email

You can use the includeArchived selector to filter archived/ignored issues. By default, this selector is set to true

- kind: issue
  selector:
    query: "true"
    includeArchived: false

Project Environment​

Project environment blueprint (click to expand)
{
  "identifier": "sentryProject",
  "title": "Sentry Project Environment",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "dateCreated": {
        "title": "Date Created",
        "type": "string",
        "format": "date-time"
      },
      "platform": {
        "type": "string",
        "title": "Platform"
      },
      "status": {
        "title": "Status",
        "type": "string",
        "enum": [
          "active",
          "disabled",
          "pending_deletion",
          "deletion_in_progress"
        ]
      },
      "link": {
        "title": "Link",
        "type": "string",
        "format": "url"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {
    "team": {
      "title": "Team",
      "target": "sentryTeam",
      "required": false,
      "many": false
    }
  }
}
Integration configuration (click to expand)
Environment tags

Theselector.tag key in the project-tag kind defines which Sentry tag data is synced to Port. In the configuration provided below, you will ingest all environment tag from your Sentry account to Port. For instance, if a Sentry project has 3 environments namely development, staging and production, this configuration will create 3 entities in the Sentry Project Environment catalog. You will then use the issue-tag kind to connect each issue to its environment.

createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: project-tag
    selector:
      query: "true"
      tag: "environment"
    port:
      entity:
        mappings:
          identifier: .slug + "-" + .__tags.name
          title: .name + "-" + .__tags.name
          blueprint: '"sentryProject"'
          properties:
            dateCreated: .dateCreated
            platform: .platform
            status: .status
            link: .organization.links.organizationUrl + "/projects/" + .name
          relations:
            team:
              combinator: '"and"'
              rules:
                - property: '"projects"'
                  operator: '"contains"'
                  value: .slug
  - kind: issue-tag
    selector:
      query: "true"
      tag: "environment"
    port:
      entity:
        mappings:
          identifier: .id
          title: .title
          blueprint: '"sentryIssue"'
          properties:
            link: .permalink
            status: .status
            isUnhandled: .isUnhandled
          relations:
            projectEnvironment: '[(.project.slug as $slug | .__tags[] | "\($slug)-\(.name)")]'
            assignedTo: .assignedTo.email

Let's Test It​

This section includes a sample response data from Sentry. In addition, it includes the entity created from the resync event based on the Ocean configuration provided in the previous section.

Payload​

Here is an example of the payload structure from Sentry:

User response data (click to expand)
{
  "id": "10909027",
  "email": "developer@getport.io",
  "name": "Michael",
  "user": {
    "id": "1722098",
    "name": "Michael",
    "username": "developer@getport.io",
    "email": "developer@getport.io",
    "avatarUrl": "https://gravatar.com/avatar/9645cd28334383caa5efa6a681dddf7cba33f94ddaf234297ba13cb30d5c5718?s=32&d=mm",
    "isActive": true,
    "hasPasswordAuth": true,
    "isManaged": false,
    "dateJoined": "2022-01-18T22:38:13.946094Z",
    "lastLogin": "2024-11-10T23:25:31.826834Z",
    "has2fa": false,
    "lastActive": "2024-11-11T07:32:23.490455Z",
    "isSuperuser": false,
    "isStaff": false,
    "experiments": {},
    "emails": [
      {
        "id": "1861335",
        "email": "developer@getport.io",
        "is_verified": false
      }
    ],
    "avatar": {
      "avatarType": "letter_avatar",
      "avatarUuid": null,
      "avatarUrl": null
    }
  },
  "orgRole": "owner",
  "pending": false,
  "expired": false,
  "flags": {
    "idp:provisioned": false,
    "idp:role-restricted": false,
    "sso:linked": true,
    "sso:invalid": false,
    "member-limit:restricted": false,
    "partnership:restricted": false
  },
  "dateCreated": "2022-01-18T22:33:43.222734Z",
  "inviteStatus": "approved",
  "inviterName": "Port Admin",
  "role": "owner",
  "roleName": "Owner"
}
Team response data (click to expand)
{
  "id": "1275104",
  "slug": "platform-team",
  "name": "Developer Experience",
  "dateCreated": "2021-11-16T13:25:53.617157Z",
  "isMember": true,
  "teamRole": "contributor",
  "flags": {
    "idp:provisioned": false
  },
  "access": [
    "org:read",
    "alerts:read",
    "project:releases",
    "event:write",
    "event:read",
    "project:read",
    "team:read",
    "member:read"
  ],
  "hasAccess": true,
  "isPending": false,
  "memberCount": 43,
  "avatar": {
    "avatarType": "letter_avatar",
    "avatarUuid": null
  },
  "externalTeams": [],
  "projects": [
    {
      "id": "4504592557998080",
      "slug": "admin-service",
      "name": "admin-service",
      "platform": "node",
      "dateCreated": "2023-01-30T08:35:19.602158Z",
      "isBookmarked": false,
      "isMember": true,
      "features": [
        "first-event-severity-new-escalation",
        "minidump",
        "similarity-indexing",
        "similarity-view",
        "span-metrics-extraction",
        "span-metrics-extraction-addons",
        "releases"
      ],
      "firstEvent": null,
      "firstTransactionEvent": false,
      "access": [
        "org:read",
        "alerts:read",
        "project:releases",
        "event:write",
        "event:read",
        "project:read",
        "team:read",
        "member:read"
      ],
      "hasAccess": true,
      "hasCustomMetrics": false,
      "hasMinifiedStackTrace": false,
      "hasMonitors": false,
      "hasProfiles": false,
      "hasReplays": false,
      "hasFeedbacks": false,
      "hasNewFeedbacks": false,
      "hasSessions": false,
      "hasInsightsHttp": false,
      "hasInsightsDb": false,
      "hasInsightsAssets": false,
      "hasInsightsAppStart": false,
      "hasInsightsScreenLoad": false,
      "hasInsightsVitals": false,
      "hasInsightsCaches": false,
      "hasInsightsQueues": false,
      "hasInsightsLlmMonitoring": false,
      "isInternal": false,
      "isPublic": false,
      "avatar": {
        "avatarType": "letter_avatar",
        "avatarUuid": null
      },
      "color": "#3f8abf",
      "status": "active"
    },
    {
      "id": "4508444173533184",
      "slug": "oauth-service",
      "name": "oauth-service",
      "platform": "node-fastify",
      "dateCreated": "2024-12-10T13:51:48.350544Z",
      "isBookmarked": false,
      "isMember": true,
      "features": [
        "first-event-severity-new-escalation",
        "minidump",
        "similarity-indexing",
        "similarity-view",
        "span-metrics-extraction",
        "span-metrics-extraction-addons",
        "releases"
      ],
      "firstEvent": null,
      "firstTransactionEvent": false,
      "access": [
        "org:read",
        "alerts:read",
        "project:releases",
        "event:write",
        "event:read",
        "project:read",
        "team:read",
        "member:read"
      ],
      "hasAccess": true,
      "hasCustomMetrics": false,
      "hasMinifiedStackTrace": false,
      "hasMonitors": false,
      "hasProfiles": false,
      "hasReplays": false,
      "hasFeedbacks": false,
      "hasNewFeedbacks": false,
      "hasSessions": false,
      "hasInsightsHttp": false,
      "hasInsightsDb": false,
      "hasInsightsAssets": false,
      "hasInsightsAppStart": false,
      "hasInsightsScreenLoad": false,
      "hasInsightsVitals": false,
      "hasInsightsCaches": false,
      "hasInsightsQueues": false,
      "hasInsightsLlmMonitoring": false,
      "isInternal": false,
      "isPublic": false,
      "avatar": {
        "avatarType": "letter_avatar",
        "avatarUuid": null
      },
      "color": "#60bf3f",
      "status": "active"
    },
  ],
  "__members": [
    {
      "id": "11033546",
      "email": "danny@domain.io",
      "name": "danny@domain.io",
      "user": {
        "id": "1823521",
        "name": "danny@domain.io",
        "username": "6032da5ae6c84433bb139023b23e3774",
        "email": "danny@domain.io",
        "avatarUrl": "https://gravatar.com/avatar/6fd8727dde707fd7bbf59ddde0f2a803416b082a2ddf538f6edfb0f9535a6dec?s=32&d=mm",
        "isActive": true,
        "hasPasswordAuth": false,
        "isManaged": false,
        "dateJoined": "2022-03-21T09:44:08.054654Z",
        "lastLogin": "2024-12-09T07:42:25.535883Z",
        "has2fa": false,
        "lastActive": "2024-12-18T13:02:41.565988Z",
        "isSuperuser": false,
        "isStaff": false,
        "experiments": {},
        "emails": [
          {
            "id": "1965065",
            "email": "danny@domain.io",
            "is_verified": false
          }
        ],
        "avatar": {
          "avatarType": "letter_avatar",
          "avatarUuid": null,
          "avatarUrl": null
        }
      },
      "orgRole": "member",
      "pending": false,
      "expired": false,
      "flags": {
        "idp:provisioned": false,
        "idp:role-restricted": false,
        "sso:linked": true,
        "sso:invalid": false,
        "member-limit:restricted": false,
        "partnership:restricted": false
      },
      "dateCreated": "2022-03-21T09:44:09.037845Z",
      "inviteStatus": "approved",
      "inviterName": null,
      "role": "member",
      "roleName": "Member",
      "teamRole": null,
      "teamSlug": "getport"
    }

  ]
}
Project response data (click to expand)
{
  "id": "4504931759095808",
  "slug": "python-fastapi",
  "name": "python-fastapi",
  "platform": "python-fastapi",
  "dateCreated": "2023-03-31T06:18:37.290732Z",
  "isBookmarked": false,
  "isMember": false,
  "features": [
    "alert-filters",
    "minidump",
    "race-free-group-creation",
    "similarity-indexing",
    "similarity-view",
    "span-metrics-extraction",
    "span-metrics-extraction-resource",
    "releases"
  ],
  "firstEvent": "2023-03-31T06:25:54.666640Z",
  "firstTransactionEvent": false,
  "access": [],
  "hasAccess": true,
  "hasMinifiedStackTrace": false,
  "hasMonitors": false,
  "hasProfiles": false,
  "hasReplays": false,
  "hasFeedbacks": false,
  "hasSessions": false,
  "isInternal": false,
  "isPublic": false,
  "avatar": {
    "avatarType": "letter_avatar",
    "avatarUuid": null
  },
  "color": "#913fbf",
  "status": "active",
  "organization": {
    "id": "4504931754901504",
    "slug": "test-org",
    "status": {
      "id": "active",
      "name": "active"
    },
    "name": "Test Org",
    "dateCreated": "2023-03-31T06:17:33.619189Z",
    "isEarlyAdopter": false,
    "require2FA": false,
    "requireEmailVerification": false,
    "avatar": {
      "avatarType": "letter_avatar",
      "avatarUuid": null,
      "avatarUrl": null
    },
    "features": [
      "performance-tracing-without-performance",
      "performance-consecutive-http-detector",
      "performance-large-http-payload-detector",
      "escalating-issues",
      "minute-resolution-sessions",
      "performance-issues-render-blocking-assets-detector",
      "event-attachments"
    ],
    "links": {
      "organizationUrl": "https://test-org.sentry.io",
      "regionUrl": "https://us.sentry.io"
    },
    "hasAuthProvider": false
  }
}
Issue response data (click to expand)
{
  "id": "4605173695",
  "shareId": "None",
  "shortId": "PYTHON-FASTAPI-2",
  "title": "ZeroDivisionError: division by zero",
  "culprit": "index",
  "permalink": "https://test-org.sentry.io/issues/4605173695/",
  "logger": "None",
  "level": "error",
  "status": "unresolved",
  "statusDetails": {},
  "substatus": "new",
  "isPublic": false,
  "platform": "python",
  "project": {
    "id": "4504931759095808",
    "name": "python-fastapi",
    "slug": "python-fastapi",
    "platform": "python-fastapi"
  },
  "type": "error",
  "metadata": {
    "value": "division by zero",
    "type": "ZeroDivisionError",
    "filename": "app.py",
    "function": "index",
    "display_title_with_tree_label": false,
    "in_app_frame_mix": "mixed"
  },
  "numComments": 0,
  "assignedTo": {
    "email": "danny@domain.io",
    "id": "11033546",
    "name": "danny@domain.io"
  },
  "isBookmarked": false,
  "isSubscribed": false,
  "subscriptionDetails": "None",
  "hasSeen": false,
  "annotations": [],
  "issueType": "error",
  "issueCategory": "error",
  "isUnhandled": true,
  "count": "1",
  "userCount": 0,
  "firstSeen": "2023-11-06T08:31:27.058163Z",
  "lastSeen": "2023-11-06T08:31:27.058163Z",
  "stats": {
    "24h": [
      [1699174800, 0],
      [1699178400, 0],
      [1699182000, 0],
      [1699250400, 0],
      [1699254000, 0],
      [1699257600, 1]
    ]
  }
}
Project environment response data (click to expand)
{
   "id":"4504931759095808",
   "slug":"python-fastapi",
   "name":"python-fastapi",
   "platform":"python-fastapi",
   "dateCreated":"2023-03-31T06:18:37.290732Z",
   "isBookmarked":false,
   "isMember":false,
   "features":[
      "alert-filters",
      "minidump",
      "race-free-group-creation",
      "similarity-indexing",
      "similarity-view",
      "span-metrics-extraction",
      "span-metrics-extraction-resource",
      "releases"
   ],
   "firstEvent":"2023-03-31T06:25:54.666640Z",
   "firstTransactionEvent":false,
   "access":[

   ],
   "hasAccess":true,
   "hasMinifiedStackTrace":false,
   "hasMonitors":false,
   "hasProfiles":false,
   "hasReplays":false,
   "hasFeedbacks":false,
   "hasSessions":false,
   "isInternal":false,
   "isPublic":false,
   "avatar":{
      "avatarType":"letter_avatar",
      "avatarUuid":null
   },
   "color":"#913fbf",
   "status":"active",
   "organization":{
      "id":"4504931754901504",
      "slug":"pages-org",
      "status":{
         "id":"active",
         "name":"active"
      },
      "name":"Pages Org",
      "dateCreated":"2023-03-31T06:17:33.619189Z",
      "isEarlyAdopter":false,
      "require2FA":false,
      "requireEmailVerification":false,
      "avatar":{
         "avatarType":"letter_avatar",
         "avatarUuid":null,
         "avatarUrl":null
      },
      "links":{
         "organizationUrl":"https://pages-org.sentry.io",
         "regionUrl":"https://us.sentry.io"
      },
      "hasAuthProvider":false
   },
   "__tags":{
      "key":"environment",
      "name":"production",
      "value":"production",
      "count":10,
      "lastSeen":"2024-03-04T17:17:33Z",
      "firstSeen":"2024-03-04T17:14:22Z"
   }
}

Mapping Result​

The combination of the sample payload and the Ocean configuration generates the following Port entity:

User entity in Port (click to expand)
{
  "identifier": "developer@getport.io",
  "title": "Michael",
  "blueprint": "sentryUser",
  "icon": "Sentry",
  "team": [],
  "properties": {
    "username": "developer@getport.io",
    "isActive": true,
    "dateJoined": "2022-01-18T22:38:13.946094Z",
    "lastLogin": "2024-11-10T23:25:31.826834Z",
    "orgRole": "owner",
    "inviteStatus": "approved"
  },
  "relations": {},
  "createdAt": "2024-11-06T08:49:17.700Z",
  "createdBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW",
  "updatedAt": "2024-11-06T08:59:11.446Z",
  "updatedBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW"
}
Team entity in Port (click to expand)
{
    "identifier": "platform-team",
    "title": "Developer Experience",
    "blueprint": "sentryTeam",
    "icon": "Sentry",
    "properties": {
      "dateCreated": "2022-11-16T13:25:53.617157Z",
      "memberCount": 1,
      "roles": "contributor",
      "projects": [
        "admin-service",
        "oauth-service"
      ]
    },
    "relations": {
      "members": [
        "danny@domain.io"
      ]
    },
  "createdAt": "2023-11-06T08:49:17.700Z",
  "createdBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW",
  "updatedAt": "2023-11-06T08:59:11.446Z",
  "updatedBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW"
}
Project entity in Port (click to expand)
{
  "identifier": "python-fastapi",
  "title": "python-fastapi",
  "icon": "Sentry",
  "blueprint": "sentryProject",
  "team": [],
  "properties": {
    "dateCreated": "2023-03-31T06:18:37.290732Z",
    "platform": "python-fastapi",
    "status": "active",
    "link": "https://test-org.sentry.io/projects/python-fastapi"
  },
  "relations": {},
  "createdAt": "2023-11-06T08:49:17.700Z",
  "createdBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW",
  "updatedAt": "2023-11-06T08:59:11.446Z",
  "updatedBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW"
}
Issue entity in Port (click to expand)
{
  "identifier": "4605173695",
  "title": "ZeroDivisionError: division by zero",
  "icon": "Sentry",
  "blueprint": "sentryIssue",
  "team": [],
  "properties": {
    "link": "https://test-org.sentry.io/issues/4605173695/",
    "status": "unresolved",
    "isUnhandled": true
  },
  "relations": {
    "project": "python-fastapi"
    "assignedTo": "danny@domain.io"
  },
  "createdAt": "2023-11-06T08:49:20.406Z",
  "createdBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW",
  "updatedAt": "2023-11-06T08:49:20.406Z",
  "updatedBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW"
}
Project environment entity in Port (click to expand)
{
  "identifier": "python-fastapi-production",
  "title": "python-fastapi-production",
  "icon": "Sentry",
  "blueprint": "sentryProjectEnvironment",
  "team": [],
  "properties": {
    "dateCreated": "2023-03-31T06:18:37.290732Z",
    "platform": "python-fastapi",
    "status": "active",
    "link": "https://test-org.sentry.io/projects/python-fastapi"
  },
  "relations": {
    "team": [
      "platform-team"
    ]
  },
  "createdAt": "2024-03-07T12:18:17.111Z",
  "createdBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW",
  "updatedAt": "2024-03-07T12:31:52.041Z",
  "updatedBy": "hBx3VFZjqgLPEoQLp7POx5XaoB0cgsxW"
}

Alternative installation via webhook​

While the Ocean integration described above is the recommended installation method, you may prefer to use a webhook to ingest data from Sentry. If so, use the following instructions:

Webhook installation (click to expand)

In this example you are going to create a webhook integration between Sentry and Port, which will ingest issues entities.

Port configuration

Create the following blueprint definition:

Sentry issue blueprint (click to expand)
{
  "identifier": "sentryIssue",
  "description": "This blueprint represents an issue trigger event from Sentry",
  "title": "Sentry Issue Event",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "level": {
        "type": "string",
        "title": "Level",
        "enum": ["error", "info", "fatal", "warning", "debug", "sample"]
      },
      "platform": {
        "type": "string",
        "title": "Platform",
        "description": "the platform name in Sentry"
      },
      "status": {
        "type": "string",
        "title": "Issue Status"
      },
      "projectID": {
        "type": "string",
        "title": "Project ID",
        "description": "the ID of the project in Sentry"
      },
      "action": {
        "type": "string",
        "title": "Action",
        "enum": ["created", "resolved", "assigned", "ignored"]
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {}
}

Create the following webhook configuration using Port UI:

Sentry issue webhook configuration (click to expand)

  1. Basic details tab - fill the following details:

    1. Title : Sentry issue mapper;
    2. Identifier : sentry_issue_mapper;
    3. Description : A webhook configuration to map Sentry Issues to Port;
    4. Icon : Sentry;

  2. Integration configuration tab - fill the following JQ mapping:

    [
      {
        "blueprint": "sentryIssue",
        "entity": {
          "identifier": ".body.data.issue.id",
          "title": ".body.data.issue.title",
          "properties": {
            "action": ".body.action",
            "level": ".body.data.issue.level",
            "platform": ".body.data.issue.platform",
            "status": ".body.data.issue.status",
            "projectID": ".body.data.issue.project.id"
          }
        }
      }
    ]

  3. Scroll down to Advanced settings and input the following details:

    1. Signature Header Name : sentry-hook-signature;
    2. Signature Algorithm : Select sha256 from dropdown option;
    3. Click Save at the bottom of the page.
Update the webhook configuration

We have left out the secret field from the security object in the webhook configuration because the secret value is generated by Sentry when creating the webhook. So when following this example, please first create the webhook configuration in Port. Use the webhook URL from the response and create the webhook in Sentry following the Live events instructions. After getting the secret from Sentry, you can go back to Port and update the webhook configuration with the secret.

Create a webhook in Sentry

To set up the webhook in Sentry, follow the steps in the Live events section. Use the URL you received from Port as the Webhook URL.

Update the Port webhook security object

Now that the webhook is created, you can take the secret value generated by Sentry and use it to update the security object in your Port webhook configuration.

Relate comments to Issues

The following example adds a sentryComment blueprint, in addition to the sentryIssue blueprint shown in the previous example. In addition, it also adds a sentryIssue relation. The webhook will create or update the relation between the 2 existing entities, allowing you to map which issue a comment is made on:

Sentry comments blueprint (including the sentryIssue relation)
{
  "identifier": "sentryComment",
  "description": "This blueprint represents a Sentry comment in our software catalog",
  "title": "Sentry Comment",
  "icon": "Sentry",
  "schema": {
    "properties": {
      "action": {
        "type": "string",
        "title": "action",
        "enum": ["created", "updated", "deleted"]
      },
      "comment": {
        "type": "string",
        "title": "Comment"
      },
      "project": {
        "type": "string",
        "title": "Project Slug"
      },
      "issue_id": {
        "type": "string",
        "title": "Issue ID"
      },
      "timestamp": {
        "type": "string",
        "title": "Comment Timestamp"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {
    "sentryIssue": {
      "title": "Issue",
      "target": "sentryIssue",
      "required": false,
      "many": false
    }
  }
}

Create the following webhook configuration using Port UI:

Sentry comments webhook configuration (click to expand)

  1. Basic details tab - fill the following details:

    1. Title : Sentry comment mapper;
    2. Identifier : sentry_comment_mapper;
    3. Description : A webhook configuration to map Sentry Comments to Port;
    4. Icon : Sentry;

  2. Integration configuration tab - fill the following JQ mapping:

    [
      {
        "blueprint": "sentryComment",
        "entity": {
          "identifier": ".body.data.comment_id",
          "title": "Comment Event",
          "properties": {
            "action": ".body.action",
            "comment": ".body.data.comment",
            "project": ".body.data.project_slug",
            "issue_id": ".body.data.issue_id",
            "timestamp": ".body.data.timestamp"
          },
          "relations": {
            "sentryIssue": ".body.data.issue_id | tostring"
          }
        }
      }
    ]

  3. Scroll down to Advanced settings and input the following details:

    1. Signature Header Name : sentry-hook-signature;
    2. Signature Algorithm : Select sha256 from dropdown option;
    3. Click Save at the bottom of the page.
tip

In order to view the different payloads and events available in Sentry webhooks, click here

Done! any issue and comment in Sentry will trigger a webhook event. Port will parse the events according to the mapping and update the catalog entities accordingly.

Let's Test It

This section includes a sample webhook event sent from Sentry when an issue or comment is created. In addition, it includes the entity created from the event based on the webhook configuration provided in the previous section.

Payload

Here is an example of the payload structure sent to the webhook URL when a Sentry issue or comment is created:

Sentry issue webhook event payload (click to expand)
{
  "action": "created",
  "installation": {
    "uuid": "54a3e698-f389-4d86-b9f8-50093a228449"
  },
  "data": {
    "issue": {
      "id": "4253613038",
      "shareId": "None",
      "shortId": "PYTHON-B",
      "title": "NameError: name 'total' is not defined",
      "culprit": "__main__ in <module>",
      "permalink": "None",
      "logger": "None",
      "level": "error",
      "status": "unresolved",
      "statusDetails": {},
      "substatus": "new",
      "isPublic": false,
      "platform": "python",
      "project": {
        "id": "4504989602480128",
        "name": "python",
        "slug": "python",
        "platform": "python"
      },
      "type": "error",
      "metadata": {
        "value": "name 'total' is not defined",
        "type": "NameError",
        "filename": "sentry.py",
        "function": "<module>",
        "display_title_with_tree_label": false
      },
      "numComments": 0,
      "assignedTo": "None",
      "isBookmarked": false,
      "isSubscribed": false,
      "subscriptionDetails": "None",
      "hasSeen": false,
      "annotations": [],
      "issueType": "error",
      "issueCategory": "error",
      "isUnhandled": true,
      "count": "1",
      "userCount": 0,
      "firstSeen": "2023-06-15T17:10:09.914274Z",
      "lastSeen": "2023-06-15T17:10:09.914274Z"
    }
  },
  "actor": {
    "type": "application",
    "id": "sentry",
    "name": "Sentry"
  }
}
Sentry comment webhook event payload (click to expand)
{
  "action": "created",
  "installation": {
    "uuid": "d5a2de51-0138-496a-8e79-c17747c3a40d"
  },
  "data": {
    "comment_id": "1729635072",
    "issue_id": "4253613038",
    "project_slug": "python",
    "timestamp": "2023-06-15T17:15:53.383120Z",
    "comment": "Hello admin please take a look at this"
  },
  "actor": {
    "type": "user",
    "id": 2683666,
    "name": "user@domain.com"
  }
}

Mapping Result

The combination of the sample payload and the webhook configuration generates the following Port sentryIssue entity:

{
  "identifier": "4253613038",
  "title": "NameError: name 'total' is not defined",
  "blueprint": "sentryIssue",
  "icon": "Sentry",
  "properties": {
    "action": "created",
    "level": "error",
    "platform": "python",
    "status": "unresolved",
    "projectID": "4504989602480128"
  },
  "relations": {}
}

In addition, the following Port sentryComment entity will be generated:

{
  "identifier": "1729635072",
  "title": "Comment Event",
  "blueprint": "sentryComment",
  "properties": {
    "action": "created",
    "comment": "Hello admin please take a look at this",
    "project": "python",
    "issue_id": "4253613038",
    "timestamp": "2023-06-15T17:15:53.383120Z"
  },
  "relations": {
    "sentryIssue": "4253613038"
  }
}
