Self-hosted GitLab

If you use the self-hosted version of GitLab in your organization, you will need to use the Port execution agent to trigger your pipelines from Port.

The steps shown in the image above are as follows:

1. Port publishes an invoked action message containing the pipeline details to a Kafka topic.
2. A secure topic (ORG_ID.runs) holds all the action invocations.
3. Port's execution agent pulls the new trigger event from your Kafka topic, and triggers your GitLab Pipeline.

This page will introduce the agent and guide you through the installation and configuration processes.

Prerequisites

• Connection credentials to Kafka are required. To obtain them, contact us using chat/Slack/support site at support.port.io.
• Helm must be installed in order to install the relevant chart.
• In order to trigger a GitLab Pipeline, you need to have a GitLab trigger token.

Trigger Tokens

To provide your trigger token to the agent, pass the helm chart an environment variable with a name that is the combination of the GitLab group and GitLab project, separated by an underscore (_). The name is case sensitive.

For example: group_project=token

You can load multiple trigger tokens, for different groups and projects in your GitLab environment.

Installing the agent

1. Add Port's Helm repo by using the following command:

   helm repo add port-labs https://port-labs.github.io/helm-charts

   Ensure you have the latest charts

   If you already added this repo earlier, run helm repo update to retrieve the latest versions of the charts.
   You can then run helm search repo port-labs to see the charts.

2. Install the port-agent chart using the following command:

   helm install my-port-agent port-labs/port-agent \
       --create-namespace --namespace port-agent \
       --set env.normal.PORT_ORG_ID=YOUR_ORG_ID \
       --set env.normal.KAFKA_CONSUMER_GROUP_ID=YOUR_KAFKA_CONSUMER_GROUP \
       --set env.secret.PORT_CLIENT_ID=YOUR_PORT_CLIENT_ID \
       --set env.secret.PORT_CLIENT_SECRET=YOUR_PORT_CLIENT_SECRET \
       --set env.secret.<YOUR GITLAB GROUP>_<YOUR GITLAB PROJECT>=YOUR_GITLAB_TOKEN \
       --set env.normal.GITLAB_URL=YOUR_GITLAB_URL

   To get your Port credentials, go to your Port application, click on your profile picture , and select Credentials. Here you can view and copy your CLIENT_ID and CLIENT_SECRET:




Done! Port's execution agent is now running in your environment and will trigger any GitLab pipeline that you have configured.

Configure the backend

Once the agent is installed, we can finish setting up the backend in Port.

1. Make sure that Run Gitlab Pipeline is selected as the backend type.

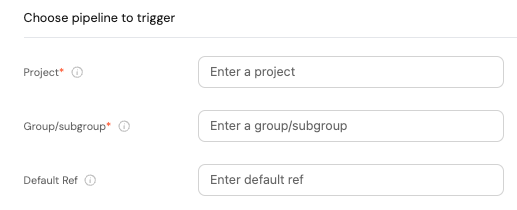

2. Now all we need is to provide the following details:




• Project - the name of the GitLab project.
  The name can be obtained from your project URL: https://gitlab.com/GROUP/SUBGROUP/PROJECT.
• Group/subgroup - the group and/or subgroup that the project belongs to.
  Can also be obtained from the project URL: https://gitlab.com/GROUP/SUBGROUP/PROJECT.
• Default ref - the branch/tag name we want the action/automation to use.

Create action/automation via API

If you wish to create a self-service action or automation via Port's API, choose the gitlab backend type under the invocationMethod object.

Configure the payload

The payload is the data sent to the webhook URL every time the action/automation is executed. It is defined by the action/automation creator and can include any data that is needed by the GitLab pipeline.

When using the GitLab backend, the payload is defined under the pipelineVariables field.

• For more information about defining a payload for self-service actions, click here.
• For more information about defining a payload for automations, click here.

Using the polling streamer with a Webhook backend

The setup above uses the GitLab invocation type with Kafka streaming. If your environment requires the polling streamer instead, you can use the Webhook invocation type combined with the agent's Control the Payload feature to inject the trigger token at request time.

Setup

1. Set the action's invocation method URL without the token:

https://<GITLAB_HOST>/api/v4/projects/<PROJECT_ID>/ref/<REF>/trigger/pipeline

Set the invocation method type to Webhook with agent: true.

2. Create a control_the_payload_config.json mapping file:

[
  {
    "enabled": ".payload.action.invocationMethod.url | contains(\"trigger/pipeline\")",
    "url": ".payload.action.invocationMethod.url + \"?token=\" + env.GITLAB_TRIGGER_TOKEN",
    "method": ".payload.action.invocationMethod.method // \"POST\"",
    "headers": ".payload.action.invocationMethod.headers // {}",
    "body": ".payload.action.invocationMethod.body // {}"
  },
  {
    "enabled": true,
    "url": ".payload.action.invocationMethod.url // .changelogDestination.url",
    "method": ".payload.action.invocationMethod.method // \"POST\""
  }
]

The first entry matches actions whose URL contains trigger/pipeline and appends ?token= with the real value from env.GITLAB_TRIGGER_TOKEN. The second entry is a default fallback for all other actions.

3. Add the following flags to your existing agent Helm installation:

--set env.normal.STREAMER_NAME=POLLING \
--set env.secret.GITLAB_TRIGGER_TOKEN=YOUR_GITLAB_TRIGGER_TOKEN \
--set-file controlThePayloadConfig=control_the_payload_config.json
