Self-service actions

Drive developer productivity by allowing developers to use self-service actions like scaffolding a service or provisioning a cloud resource. Developer self-service drives consistency and repeatability and ensures that their routines are intuitive and clear, all with guardrails like manual approvals or consumption policies to comply with organizational standards.

Port's action model is designed to be flexible and can be used to cover a wide range of use-cases:

1. Unopinionated - flexible UI to create a wide range of self-service actions.
2. Leverages existing infrastructure and automations as the backend of your actions.
3. Loosely coupled to your infrastructure and architecture.
4. Stateful - every invoked action affects the software catalog by adding/modifying/deleting one or more entities.
5. Secure by design - does not require keys to sensitive infrastructure by using an event-based model. All actions are audited and can include guardrails like manual approval and TTL.

💡 Common self-service actions

• Scaffold a new service.
• Create a cloud resource.
• Provision a temporary developer environment.
• Redeploy an image tag.
• Rollback a running service.
• Change a deployment's replica count.

In our live demo, you can see examples for self-service experiences. 🎬

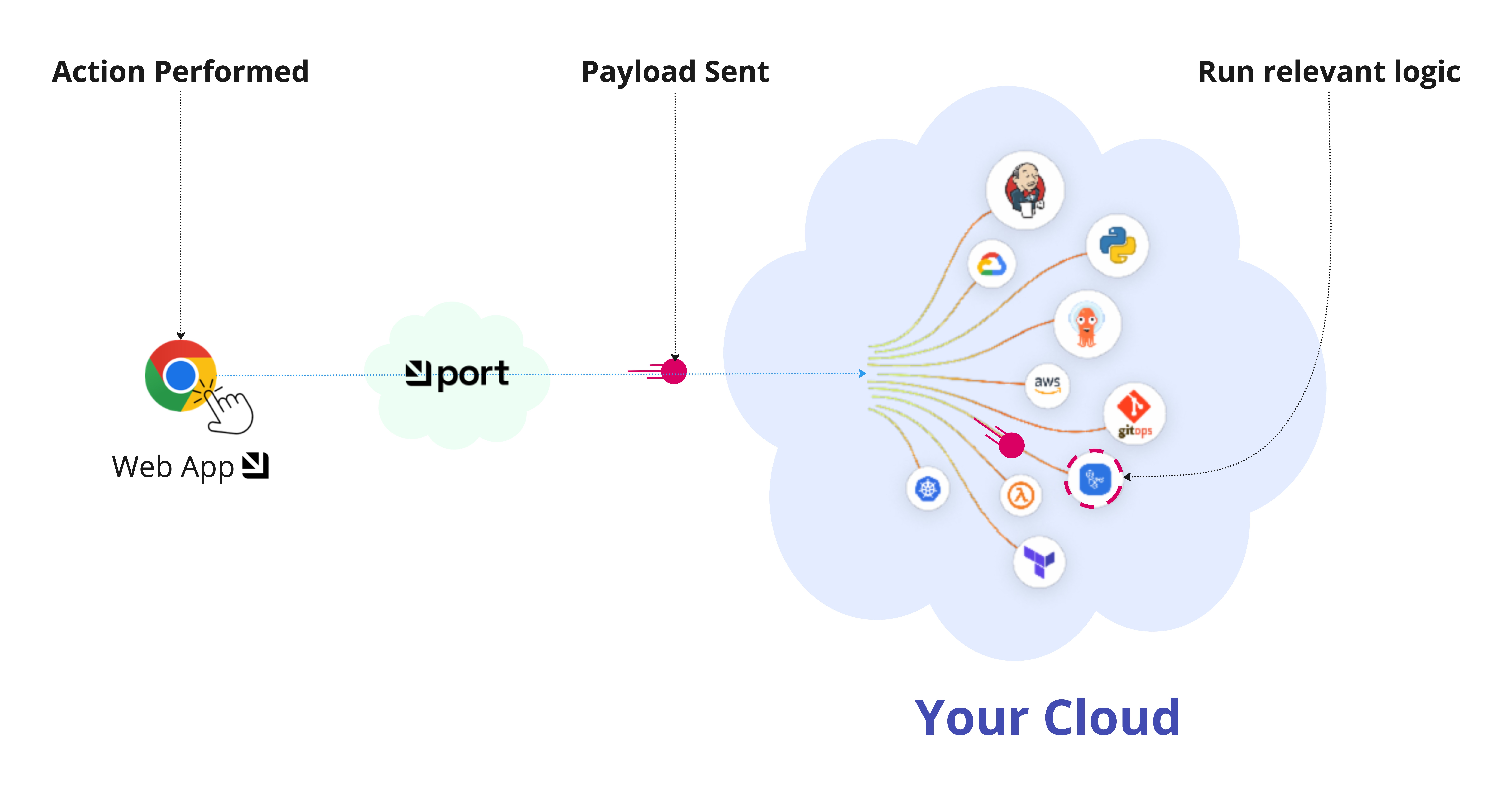

How does it work?

1. A user executes an action from Port's UI interface.
2. A pre-defined payload containing any desired metadata about the action and its inputs is sent to your infrastructure.
3. A job is triggered and the user gets a continuous indication about its progress.
4. Once the action is running, you can use Port's API to update Port on its status and provide information such as logs and links to the resulting handlers.

Create a self-service action

Creating a self-service experience in port is very similar to a traditional frontend-backend model. Port gives you no-code components to create the experience you want for your users and integrates with existing workflows and automations provided by you.

Self-service actions are created and managed in the Self-service page of your portal.

To begin, click on the + Action button in the top right corner, then follow the steps below.

Other supported methods

Besides Port's UI, you can also create and manage self-service actions using Port's API, or Terraform.

Set up the action's frontend

Choose the name of the action, its icon, and the inputs you would like the user to fill out when executing it. Port supports a wide variety of input types, including more advanced conditions to best fit the experience you want for your users.

See Set up frontend for instructions and examples.

Set up backend

Set up the logic responsible to handle the action after it is executed.
In this step you can also define the payload that will be sent to your handler upon execution.

The backend logic is yours, so it can do whatever you need it to do. Port supports many different backends for actions, offering a secure and compliant architecture.

As part of your backend and its logic implementation, you can keep your software catalog up to date by sending API requests or ingesting new data that is tied to the performed action (for example, adding a new service entity in Port once the scaffold process has finished).

See Set up backend for instructions and examples.

Optional Step - ✋🏼 set guardrails

Port supports a variety of ways to add manual approvals, policies, and TTL to actions, to ensure that organizational standards are met.

See Set actions RBAC for instructions and examples.

Execute the action

Self-service actions can be executed from the following locations:

• The self-service page of your portal.

• Certain dashboard widgets that can be added to your homepage or catalog.

• Actions that are tied to a specific blueprint can be executed directly from any entity page that is based on that blueprint.
  For example, the following page of an entity of type service displays a list of actions that can be executed on that entity:



Execute in JSON format

When executing an action from the UI, a JSON mode toggle is available, allowing you to view and edit the action's inputs in JSON format.
Note that this toggle will not be available when executing an action that has multiple steps.

Reflect action progress

After executing an action, Port allows you update its state and progress, using a success/in-progress/failure status, live logs, ChatOps notifications, friendly and indicative error messages, and more.

See Reflect action progress for instructions and examples.

Action JSON structure

The basic structure of a self-service action looks like this (see key descriptions below):

{
  "identifier": "unique_id",
  "title": "Title",
  "icon": "iconIdentifier",
  "description": "Action description",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "property1": {
          "type": "string",
          "title": "Property title",
          "default": "default value"
        },
        "property2": {
          "type": "number",
          "title": "property title",
          "default": 5
        }
      }
    }
  },
  "invocationMethod": {
    "type": "WEBHOOK",
    "url": "https://example.com",
    "agent": false,
    "synchronized": false,
    "method": "POST",
    "headers": {
      "RUN_ID": "{{ .run.id }}"
    },
    "body": {
      "property1": "{{ .inputs.property1 }}",
      "property2": "{{ .inputs.property2 }}"
    }
  }
}

Field	Description
identifier	The action's unique identifier.
title	The action's title.
icon	The action's icon.
description	A description that can be used to explain the action to users.
trigger	An object containing data about the action (see next rows of this table).
trigger.type	The action's trigger type. Should be set to self-service.
trigger.operation	The operation type of the action: CREATE, DAY-2 or DELETE.
trigger.userInputs	An object containing the action's inputs and their metadata. See User inputs for more information.
trigger.condition	An object containing conditions that determine which entities the action will be available for.
invocationMethod	Defines the type of backend the action will use. See invocation method for more information.
requiredApproval	A boolean value that determines whether the action requires approval or not.

Examples

For complete examples of self-service actions using GitHub as the backend, check out the guides section.

Track self-service actions

To gain visibility into how your self-service actions are being used and their performance, you can set up tracking for action runs. This allows you to monitor execution patterns, track success rates, and maintain audit trails to follow what actions were executed and when.

The following tracking system works by creating a dedicated blueprint for action runs and setting up an automation that captures execution details whenever a specific self-service action is triggered as well as an automation that updates the action run's status.

Set up data model

Create a blueprint for Action run:

1. Go to the Data model page of your portal.

2. Click on + Blueprint.

3. Click on the {...} Edit JSON button in the top right corner.

4. Copy and paste the following JSON schema, then click Save.

   Action run blueprint (click to expand)

   {
     "identifier": "action_run",
     "title": "Action run",
     "icon": "Microservice",
     "schema": {
       "properties": {
         "status": {
           "icon": "DefaultProperty",
           "title": "Status",
           "type": "string",
           "enum": [
             "SUCCESS",
             "FAILURE",
             "IN_PROGRESS",
             "WAITING_FOR_APPROVAL",
             "DECLINED"
           ],
           "enumColors": {
             "SUCCESS": "green",
             "FAILURE": "red",
             "IN_PROGRESS": "lightGray",
             "WAITING_FOR_APPROVAL": "yellow",
             "DECLINED": "red"
           }
         },
         "created_at": {
           "type": "string",
           "title": "Created At",
           "format": "date-time"
         },
         "run_id": {
           "type": "string",
           "title": "Run ID"
         },
         "run_url": {
           "type": "string",
           "title": "Run URL",
           "format": "url"
         },
         "updated_at": {
           "type": "string",
           "title": "Updated At",
           "format": "date-time"
         },
         "action": {
           "type": "string",
           "title": "Action"
         }
       },
       "required": []
     },
     "mirrorProperties": {},
     "calculationProperties": {},
     "aggregationProperties": {},
     "relations": {}
   }

Define the automation

The following automation updates the Action run entity with information regarding this run.
To add it, follow these steps:

1. Go to the Automations page of your portal.

2. Click on the + Automation button.

3. Click on the {...} Edit JSON button in the top right corner.

4. Copy and paste the following JSON configuration into the editor, then click Save.

   Update Action run automation definition (click to expand)

   {
     "identifier": "update_action_run",
     "title": "Update Action Run",
     "description": "",
     "trigger": {
       "type": "automation",
       "event": {
         "type": "ANY_RUN_CHANGE",
         "actionIdentifier": "<THE_ACTION_IDENTIFIER>"
       },
       "condition": {
         "type": "JQ",
         "expressions": [],
         "combinator": "and"
       }
     },
     "invocationMethod": {
       "type": "UPSERT_ENTITY",
       "blueprintIdentifier": "action_run",
       "mapping": {
         "identifier": "{{.event.diff.after.id}}",
         "title": "{{.event.diff.after.id}}",
         "properties": {
           "run_id": "{{.event.diff.after.id}}",
           "run_url": "https://app.port.io/organization/run?runId={{.event.diff.after.id}}",
           "status": "{{.event.diff.after.status}}",
           "created_at": "{{.event.diff.after.createdAt}}",
           "updated_at": "{{.event.diff.after.updatedAt}}",
           "action": "{{.event.diff.after.action.title}}"
         },
         "relations": {}
       }
     },
     "publish": true
   }

Once implemented, you can track your self-service action runs and see how they are progressing.

For example, you can create the following widget to vizualize how Action runs are distributed by status for a specific Action over the past month:

1. Click + Widget and select Pie chart.

2. Give the widget a title and a description.

3. Choose the Action run blueprint.

4. Under Breakdown by property, select the status property.

5. Under Additional filters you can choose to filter by:

   • Action runs that were created in the past month.
   • Action runs of a specific self-service action.

   Click on filters, then on {...} Edit JSON, and add the following snippet with your action title and relevant time frame.
   Below is a JSON example for Create s3 bucket self-service action in the past month:

   filters JSON example (click to expand)

   {
     "combinator": "and",
     "rules": [
       {
         "property": "created_at",
         "operator": "between",
         "value": {
           "preset": "lastMonth"
         }
       },
       {
         "property": "action",
         "operator": "=",
         "value": "Create s3 bucket" // Change the value to your action name
       }
     ]
   }

6. Click Save.

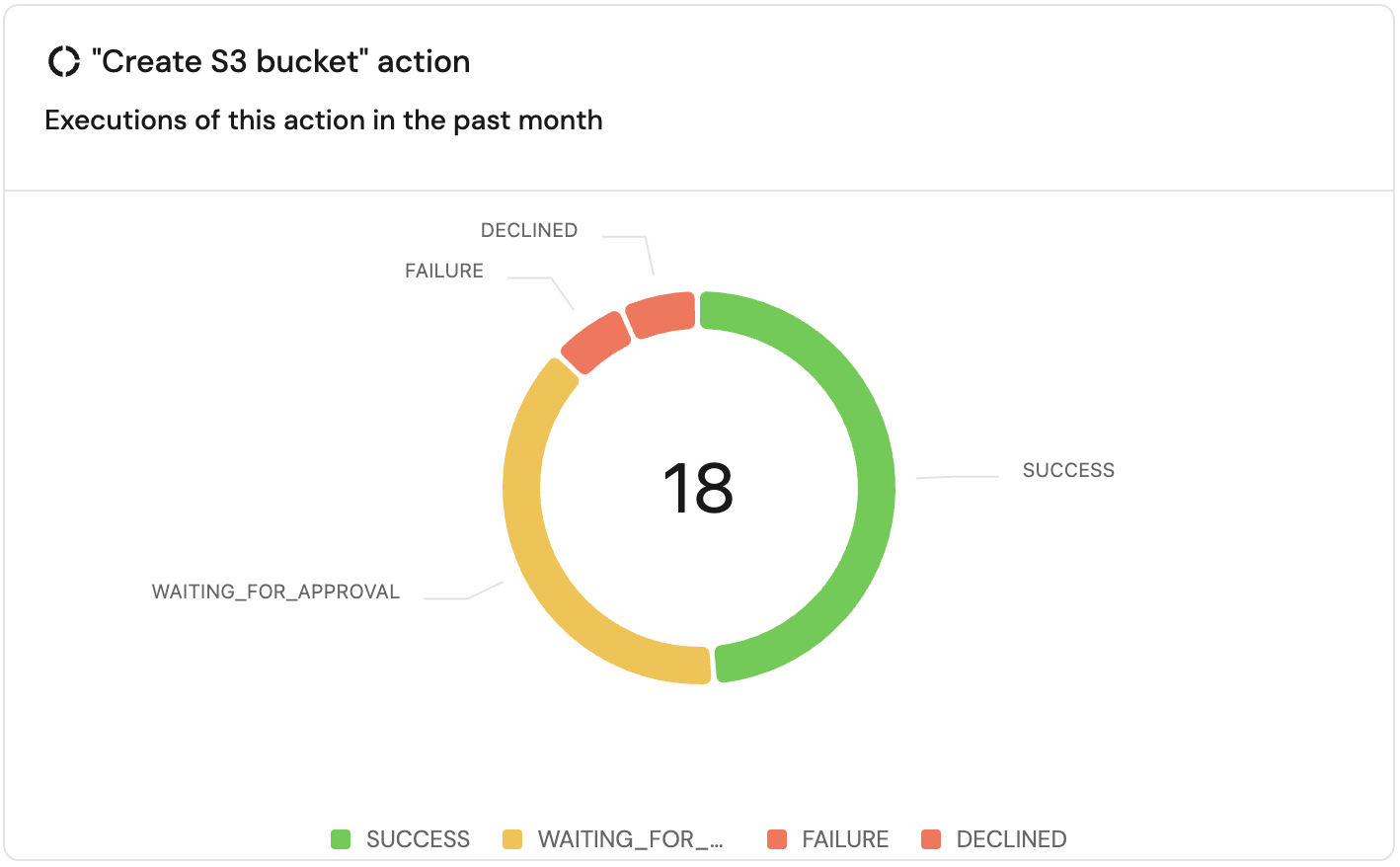

This will result in a widget similar to the following:
